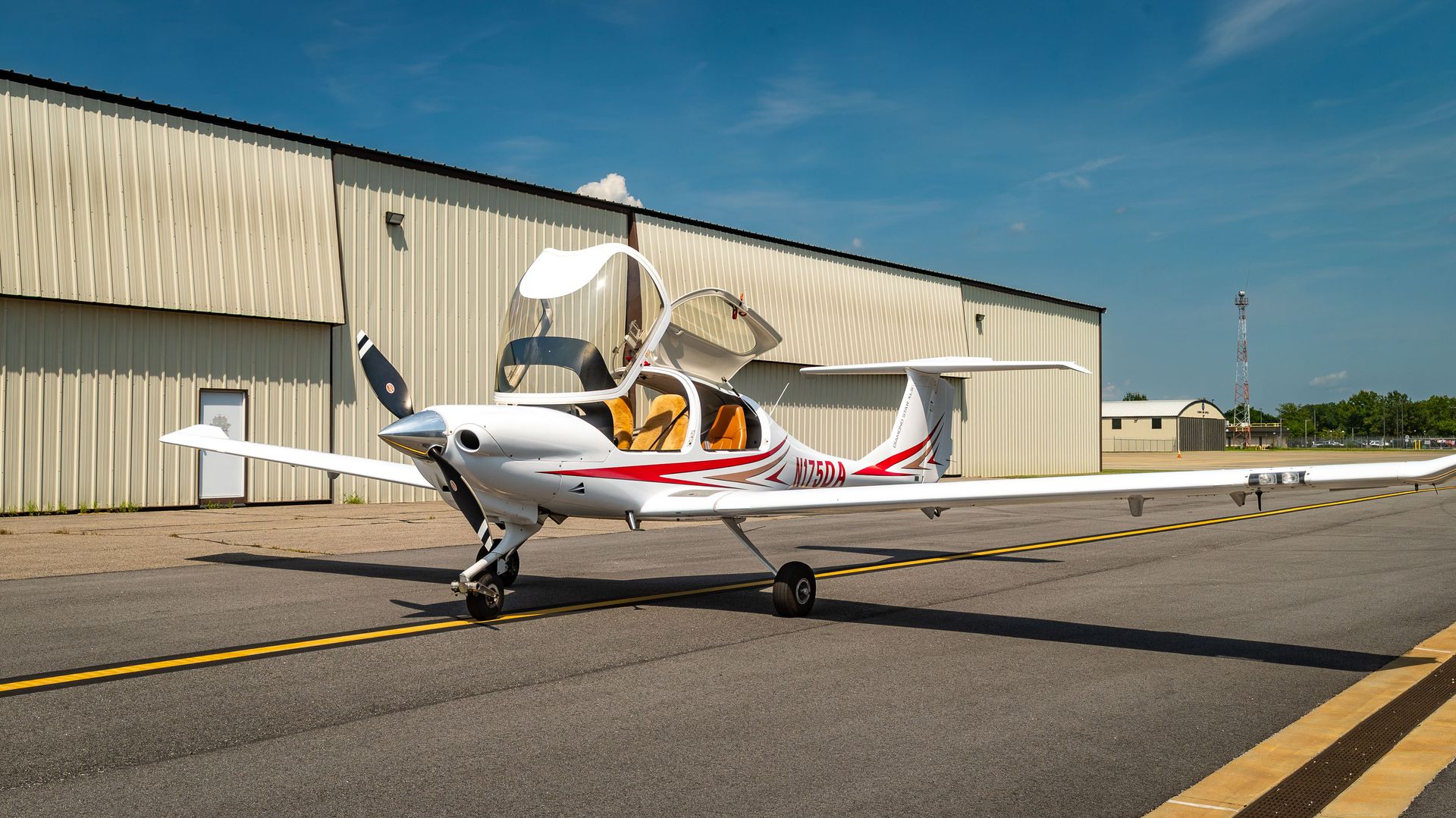

2011 Diamond DA40 XLS
2011 Diamond DA40 XLS with a fresh Triad Aviation engine overhaul and a factory new Hartzell composite propeller, just 125 hours ago. Fully loaded G1000 panel with GFC 700 autopilot, Synthetic Vision, TAWS-B, and GTX 345 ADS-B In and Out. Extended range 50 gallon tanks, Power Flow exhaust, and complete logs since new. The nose gear AD does not apply to this aircraft.
expired
Basic Information
Aircraft Information
| Manufacturer | Diamond |
| Model | DA40 XLS |
| Year | 2011 |
| Registration | N175DA |

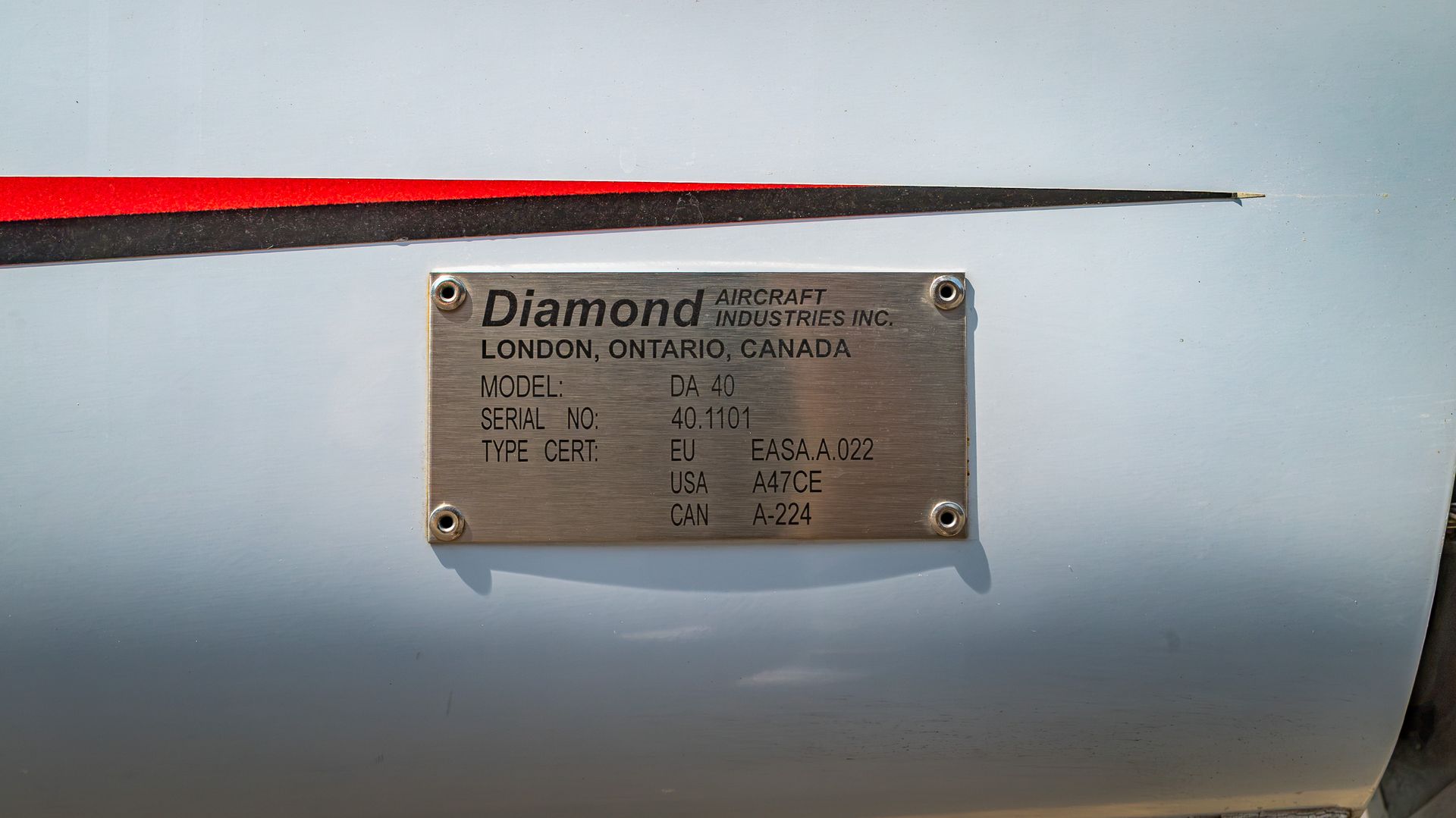

| Serial Number | 40.1101 |
Maintenance Status

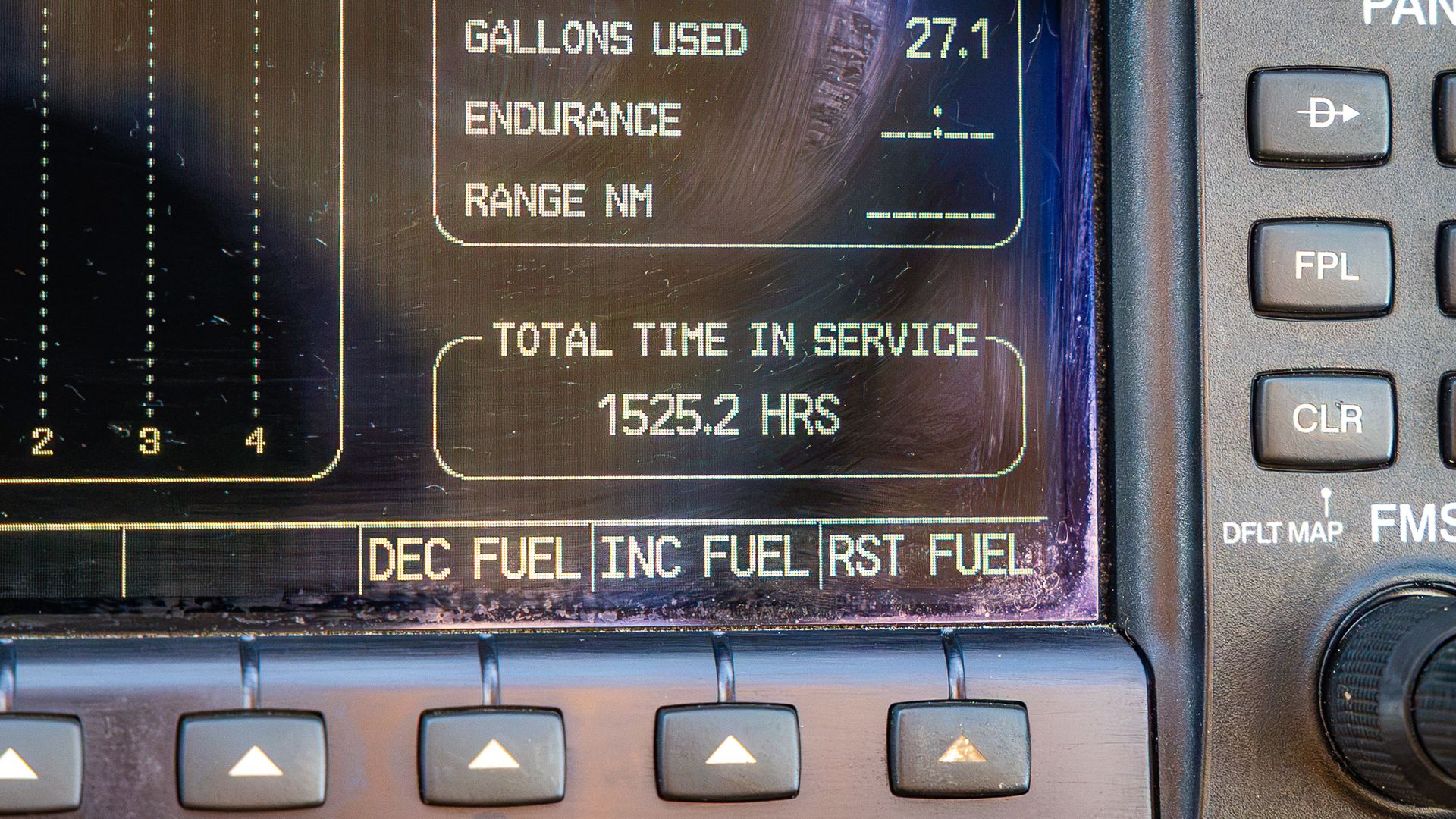

| Total Time | 1525.0 Hours |
| Last Annual | 2025-12-20 |
| Warranty Status | expired |
Technical Specifications
| Fuel Type | av-gas |
| Seats | 4 |
| Location | KFLO |
| Useful Load | -- |
Technical Details & Equipment
Overview

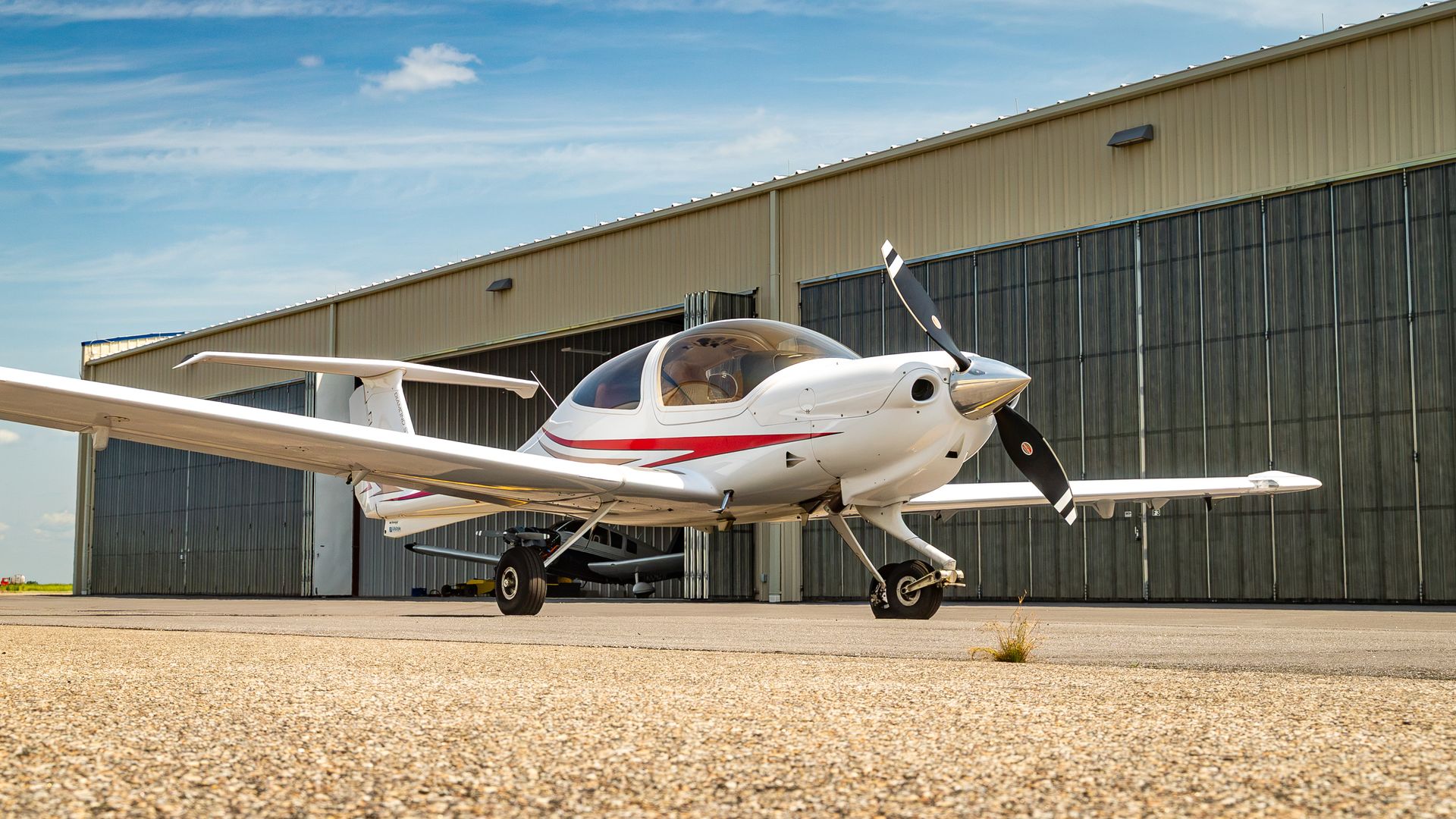

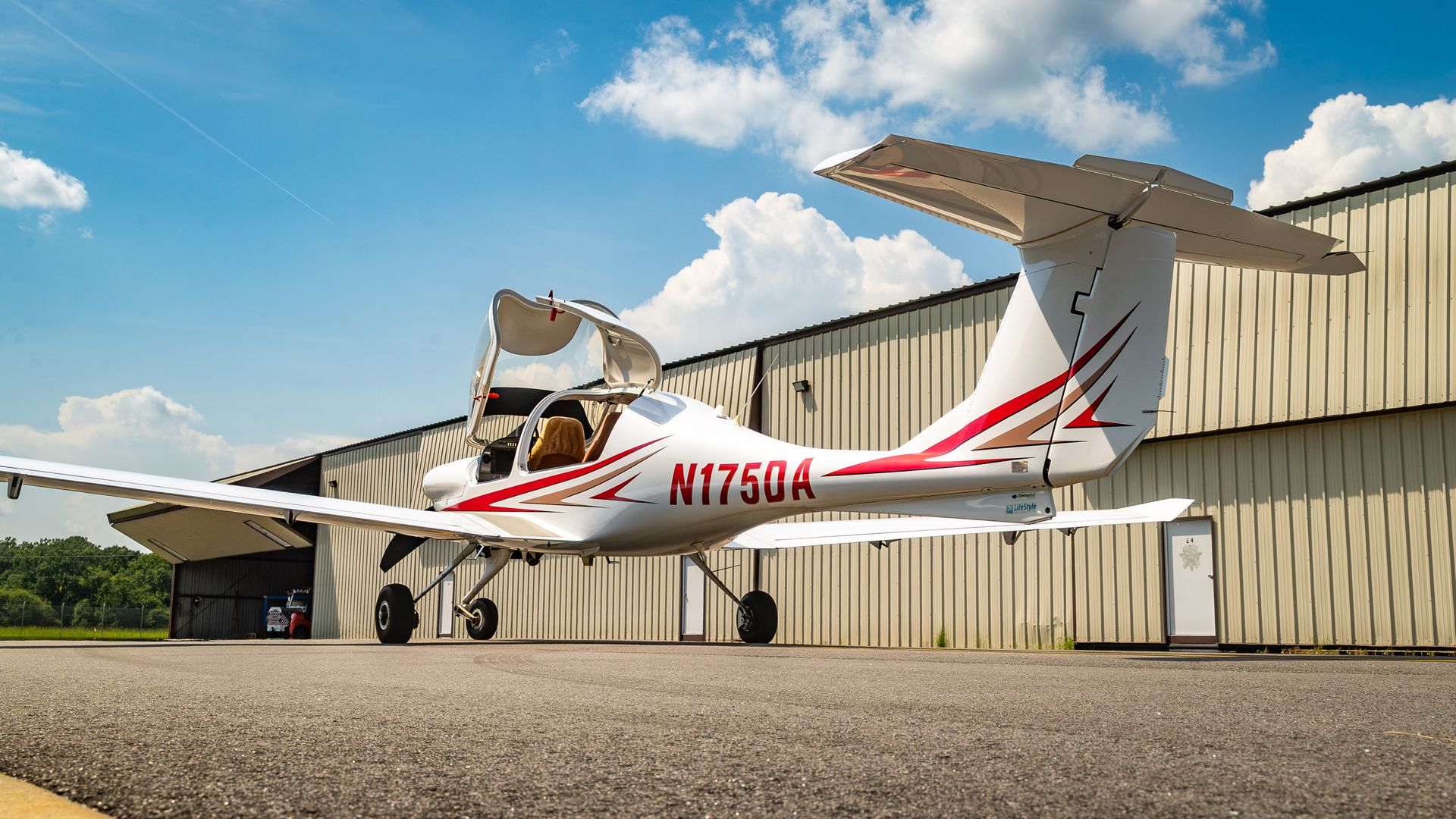

LifeStyle Aviation is proud to present N175DA, a 2011 Diamond DA40 XLS offered on brokerage. With a fresh major engine overhaul and a factory new propeller both just 125 hours ago, this aircraft gives you the two most expensive components on the airplane already handled, and thousands of hours of flying ahead of you.
The Lycoming IO-360-M1A was fully overhauled by Triad Aviation and reinstalled on new Lord mounts, leaving nearly the entire 2,000 hour TBO in front of the next owner. Compressions at the most recent annual came back at 78 over 80 across all four cylinders. A factory new Hartzell composite propeller was installed at the same inspection.

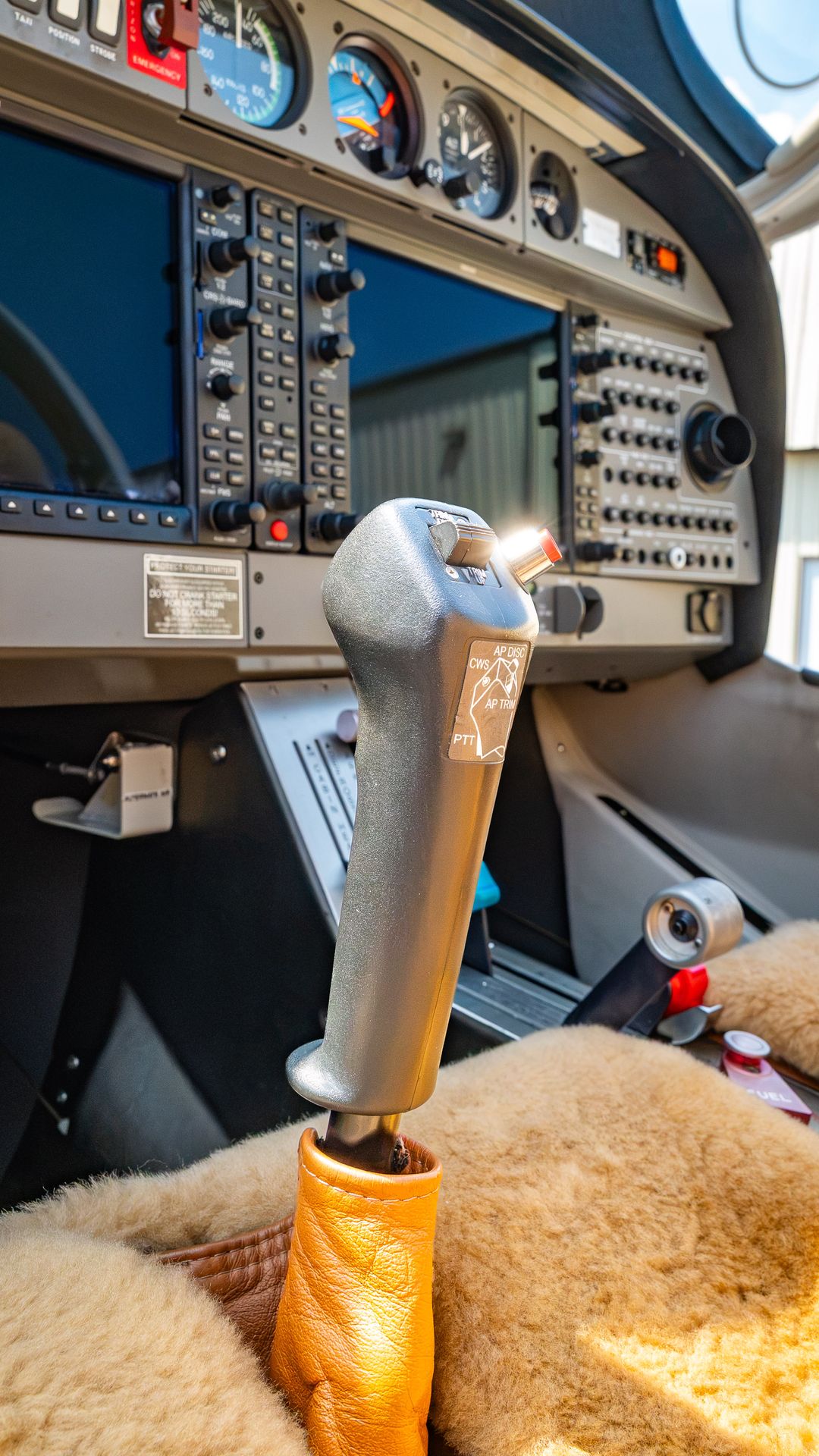

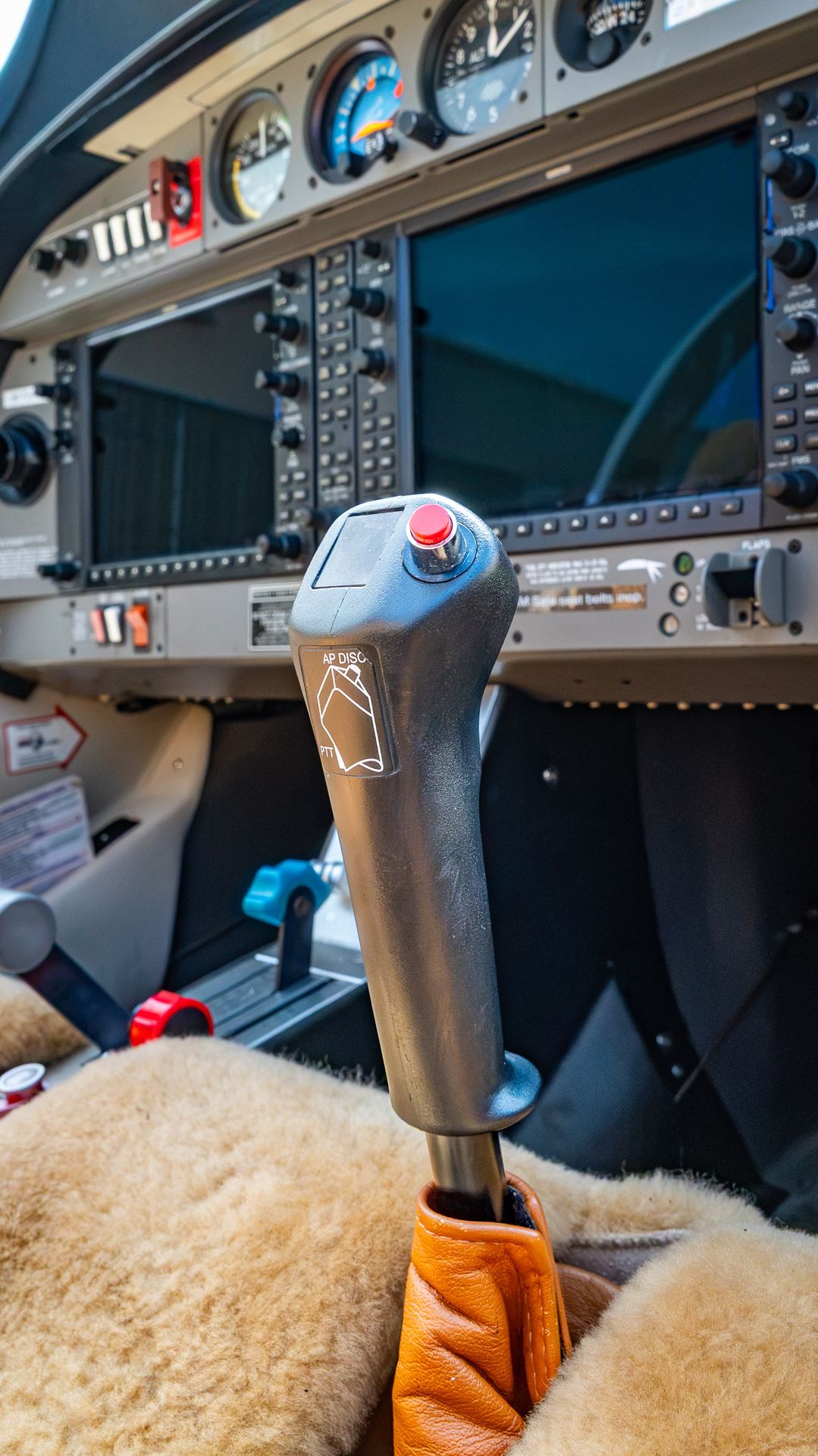

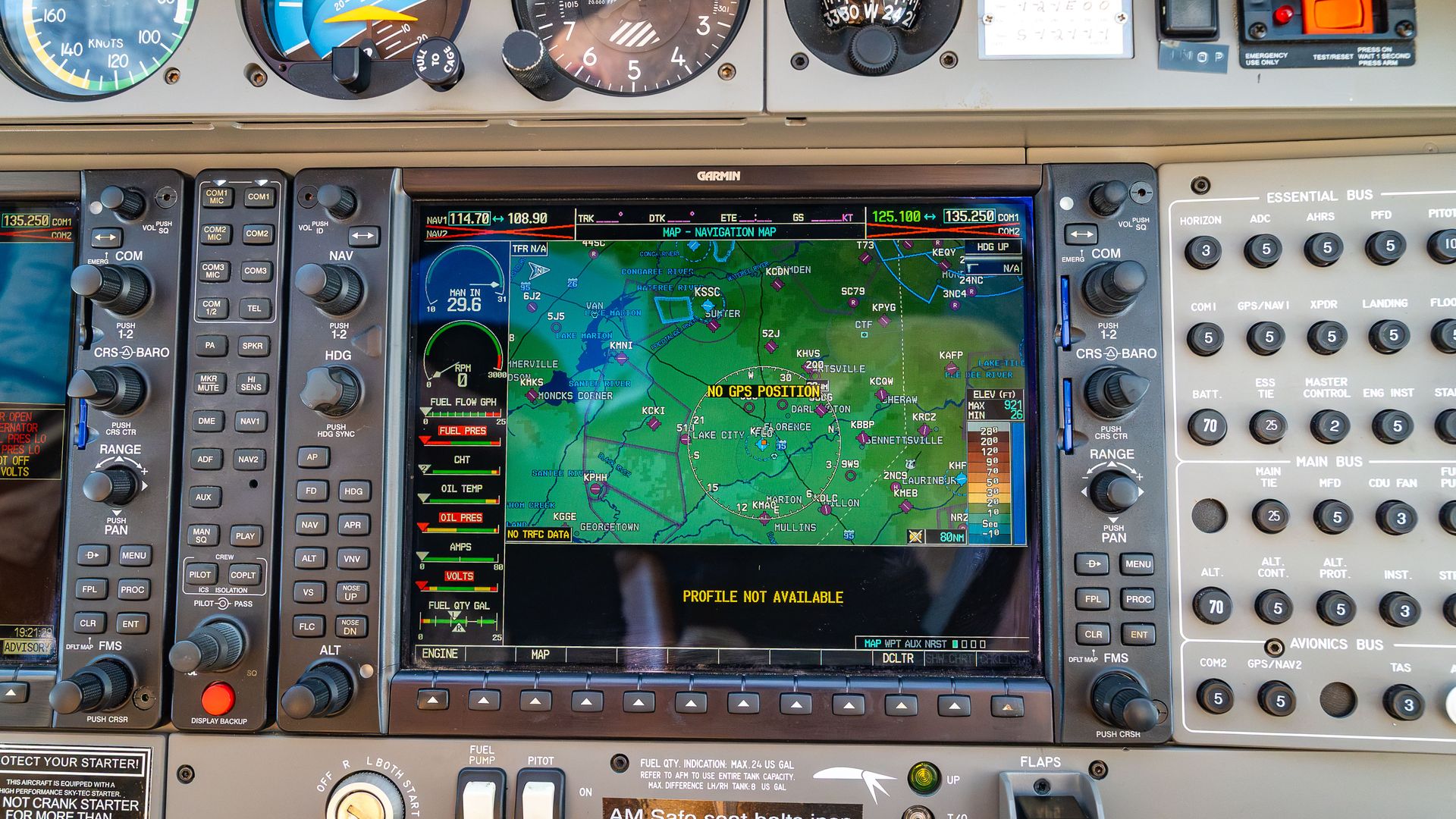

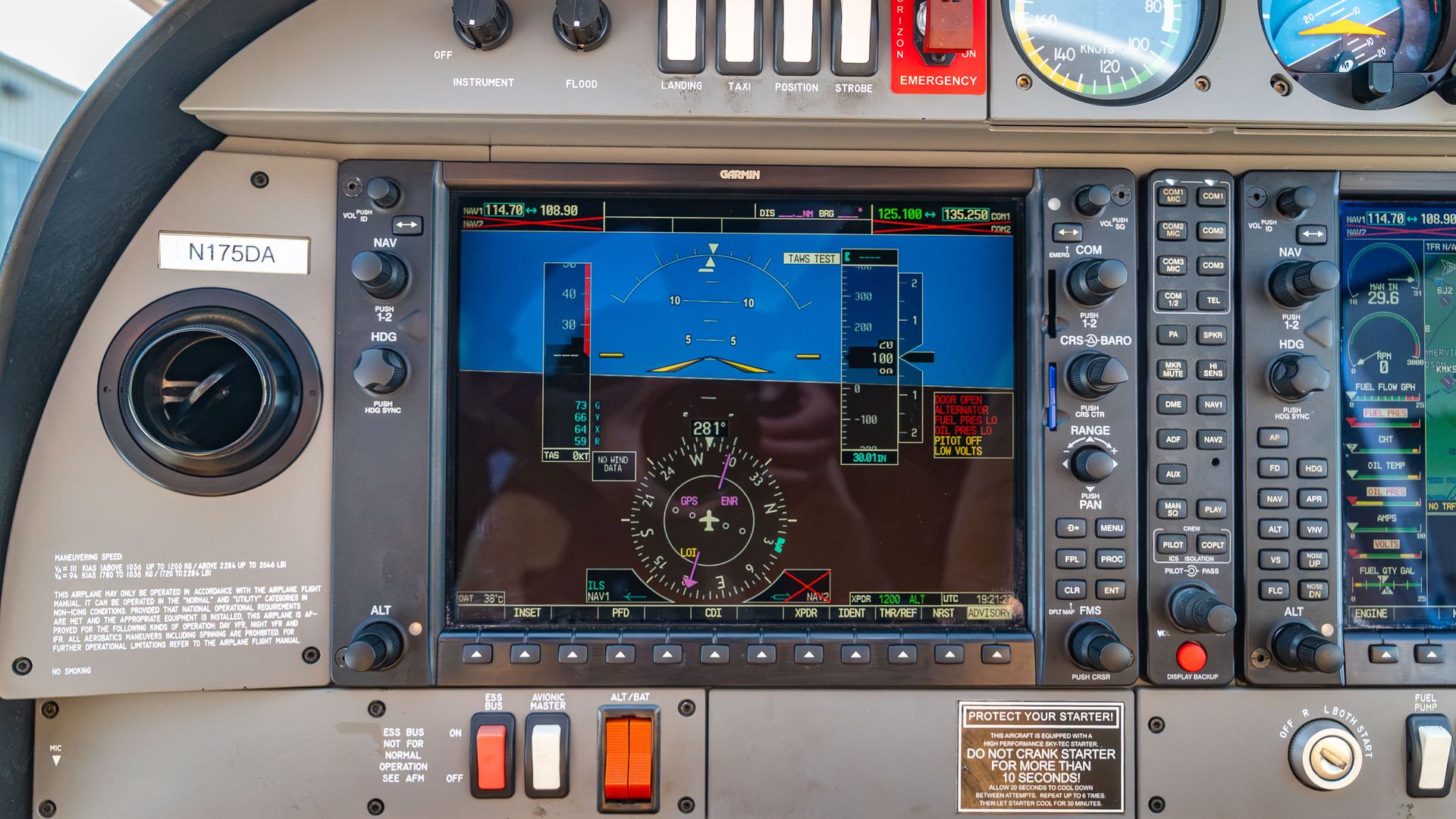

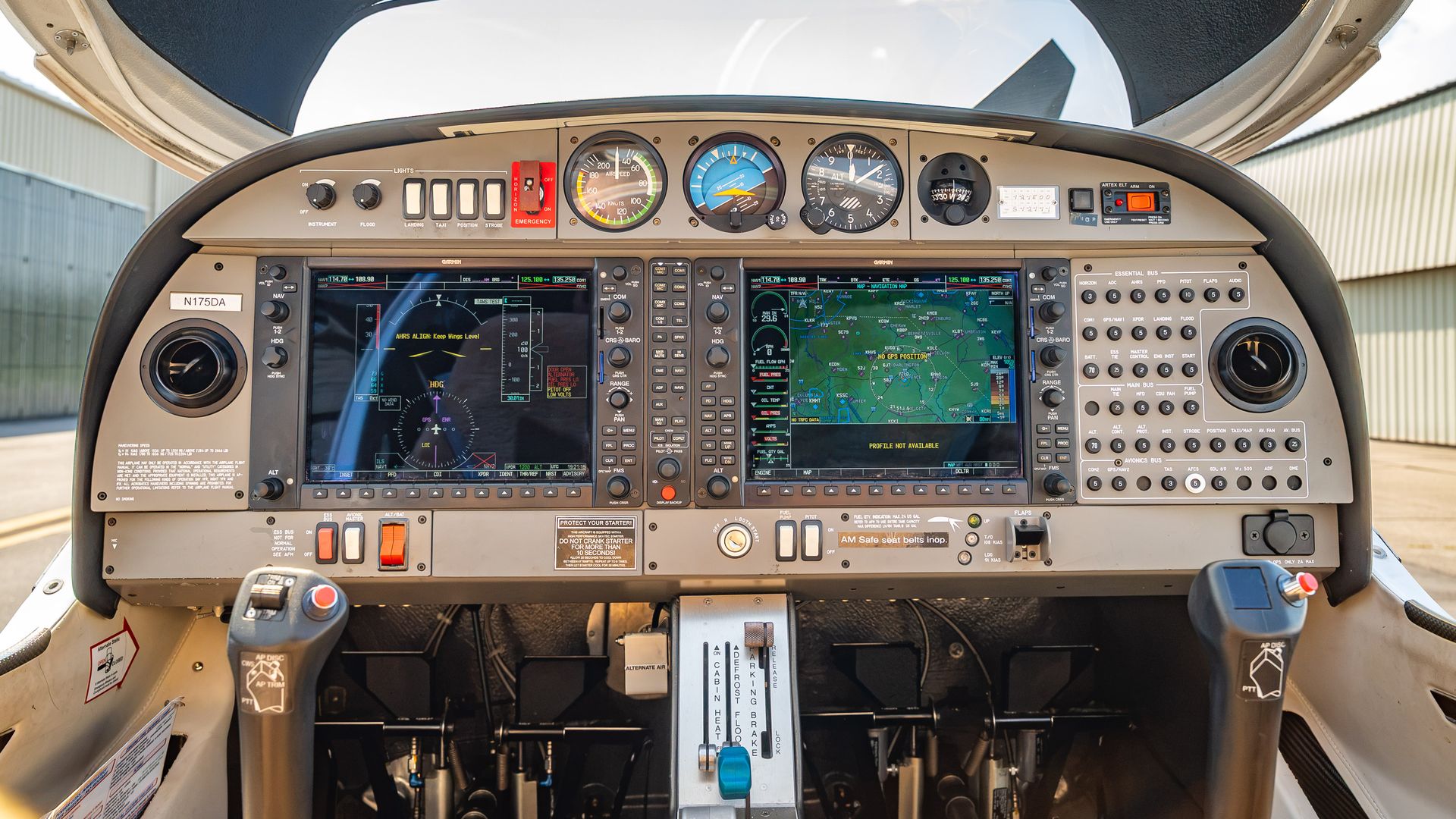

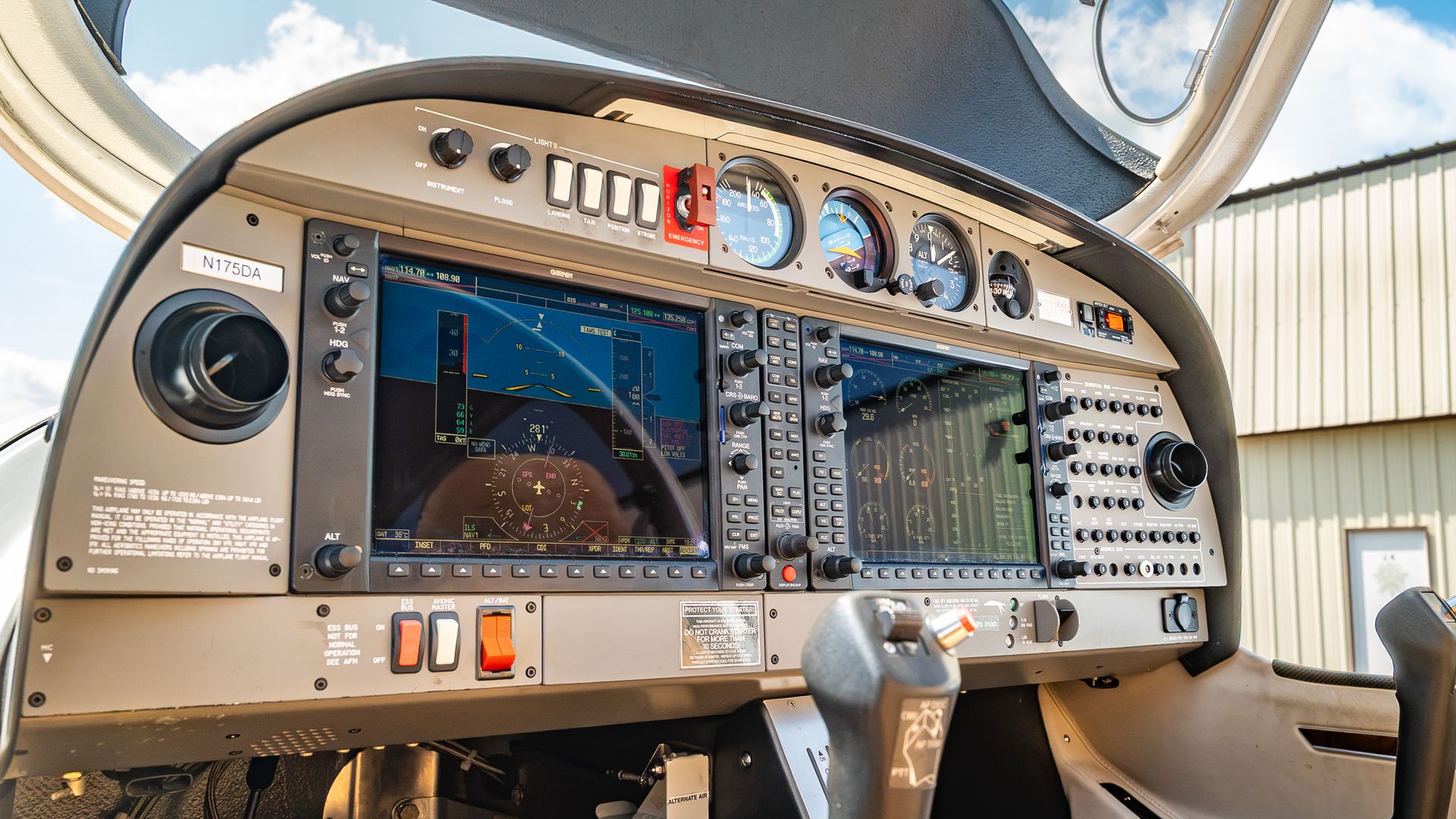

The panel is a fully optioned Garmin G1000 with the GFC 700 two axis autopilot and flight director, WAAS enabled dual GPS for fully coupled ILS and LPV approaches with coupled VNAV, Synthetic Vision Technology, TAWS-B terrain, SafeTaxi and FliteCharts, GDL 69A satellite weather with NEXRAD and XM audio, and a GTX 345 transponder delivering ADS-B In and Out with traffic and weather to the displays. The TAWS-B and Synthetic Vision combination is not found on every DA40, and it makes this one a genuinely capable IFR platform.

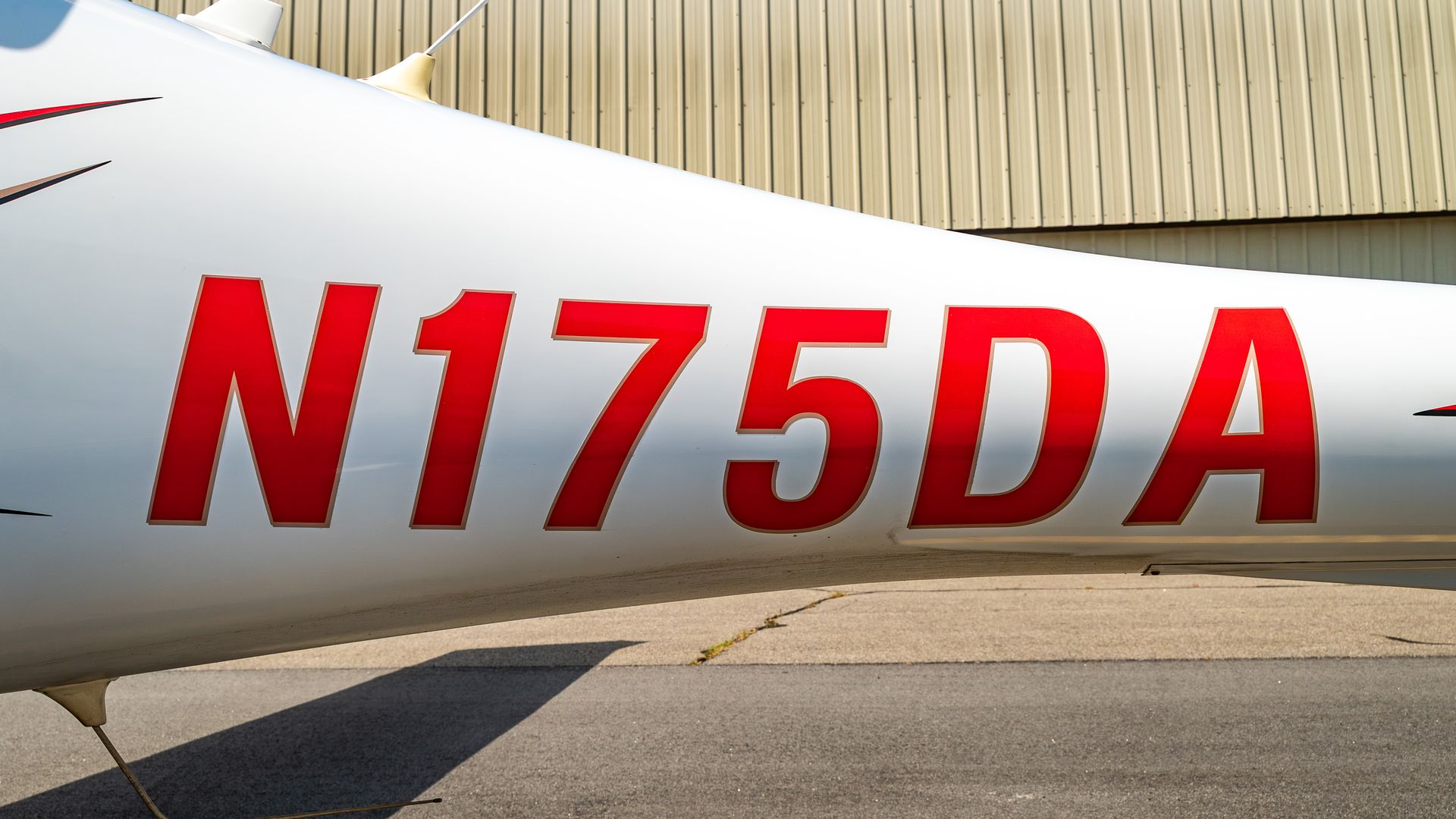

This airplane was ordered with the performance options that matter. Extended range 50 gallon fuel tanks open up real cross country legs, and the Power Flow tuned exhaust, performance landing gear fairing kit, and enlarged bubble canopy round out a well specified airframe. Inside are premium curry leather seats with new wool covers on the front, finished outside in white with red and gold accents.

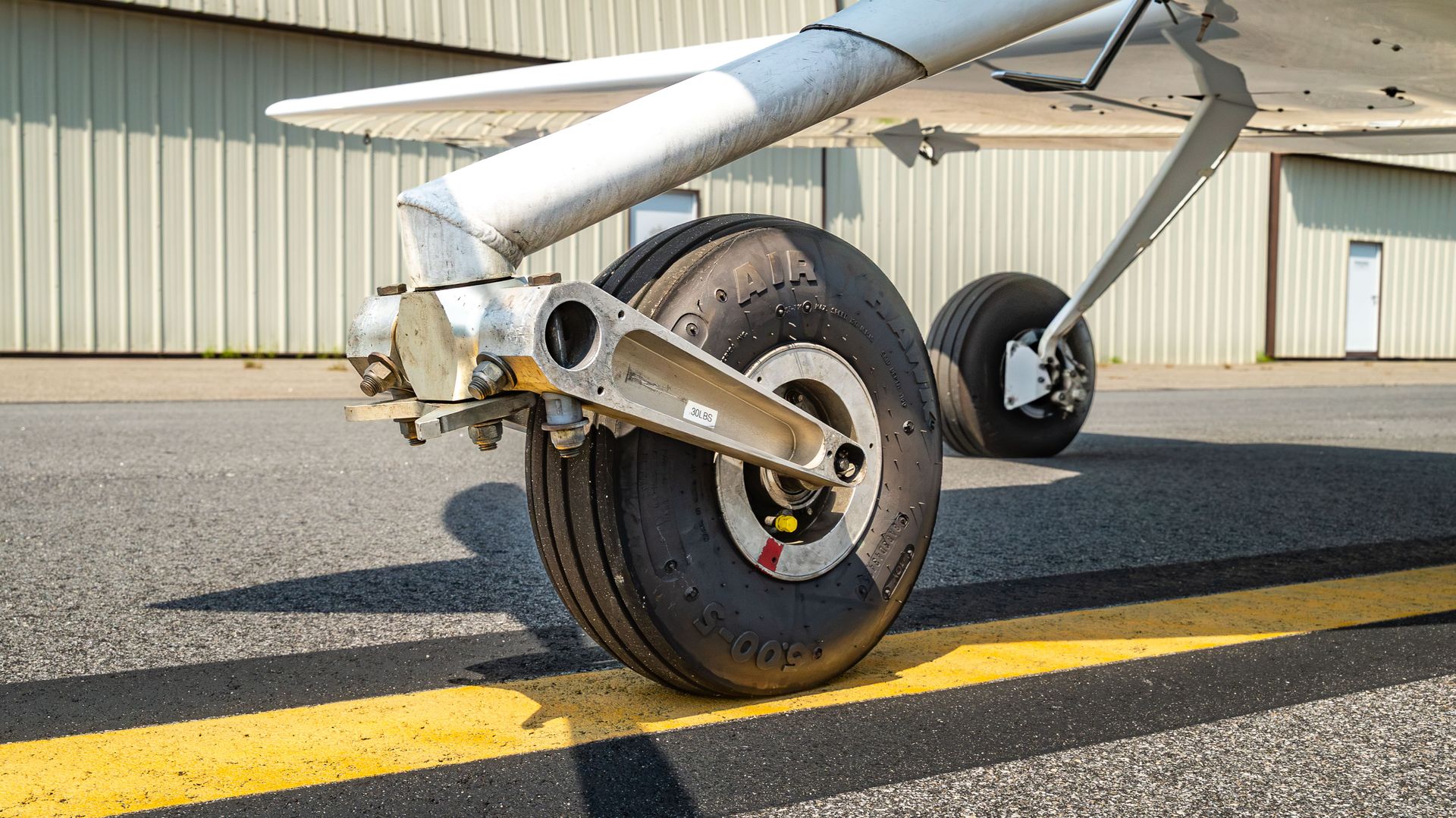

With 1,552 hours total time, complete logs from the delivery flight forward, a current annual, pitot static and transponder certifications good through May 2028, and the DA40 nose landing gear AD confirmed not applicable to this aircraft, N175DA is a clean, well documented example ready to fly.
Available now at Florence Regional Airport (KFLO) in South Carolina. For the pilot who wants Diamond safety, Garmin capability, and a fresh engine and propeller without waiting on a factory order, this is one of the strongest DA40 opportunities in the market today.
Airframe
Avionics
Standard Avionics
- Garmin GDU 1040, 10" Primary Flight Display
- Garmin GDU 1044, 10" Multi-Function Display
- GDC 74 TAS/CAS/VSI/TAT
- Dual Garmin GIA 63W WAAS/GPS/VHF NAV & ILS/VHF COMS
- Allows for fully coupled ILS or WAAS approaches with audible "Minimums" call-out & coupled VNAV
- GMA 1347 Digital Audio Controller with Digital ATC Playback
- GMU 44 Magnetometer
- GEA 71 Airframe/Engine Interface Unit
- Integrally Lit Polycarbonate Switch Panel Overlays

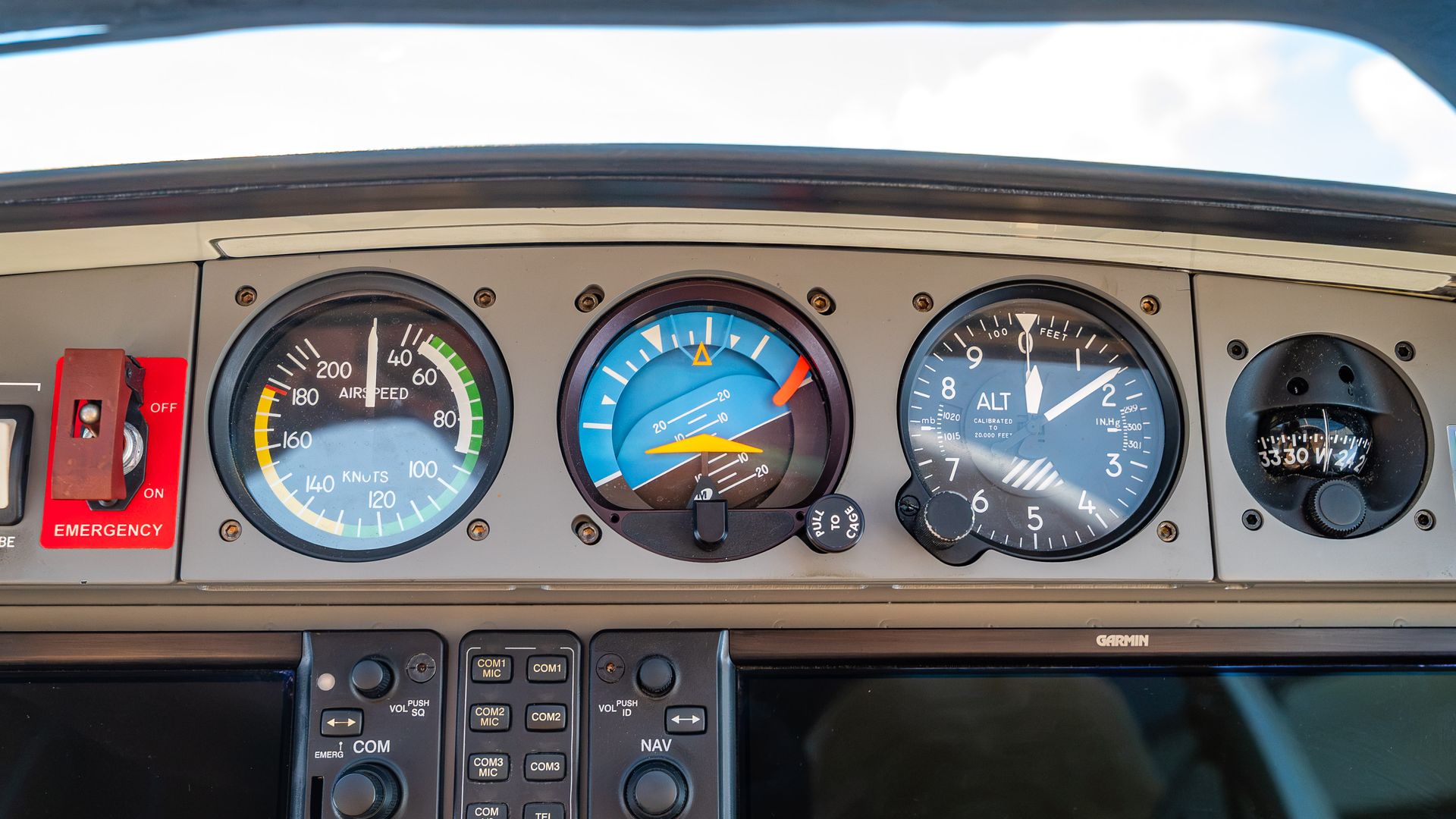

- Standy Instrumentation
- Electric Attitude Indicator, Airspeed Indicator, Altimeter, Compass
- 12V Auxiliary Power Plug
- GTX 33 Integrated Mode S Transponder with Up-Linked Traffic (TIS)
- Garmin GDK 69A Satellite Data Link
- NEXRAD Radar, Weather Data, XM Entertainment, Garmin VFR TAS
- 406 MHz ELT
- Garmin SafeTaxi & FlightCharts, Includes TAWS-B Terrain System (Not all DA40's have this)
- Garmin Synthetic Vision Technology (SVT)
- Garmin GFC 700 Automatic Flight Control System (AFCS) with 2-axis Digital Autopilot with Flight Director
- Includes Flight Level Control (FLC) for climbs & descents using airspeed instead of rate
Props
Standard Propeller
- Hartzell Composite 2-Blade Propeller
- Model: HC-C2YR-1N/N7605
- S/N: Ch45669B
- TSNEW: 125 hrs
Engines
- Fuel Type: AvGas 100LL
- Fresh Full Engine Overhaul Completed by Triad Aviation
Installed Engines
| Location | Manufacturer | Model | Serial Number | TTSN | TSOH | TBO |
|---|---|---|---|---|---|---|
| Nose | Lycoming | IO-360-M1A+ | L-35236-51E | 1525.0 hrs | 125.0 hrs | 2000 hrs |

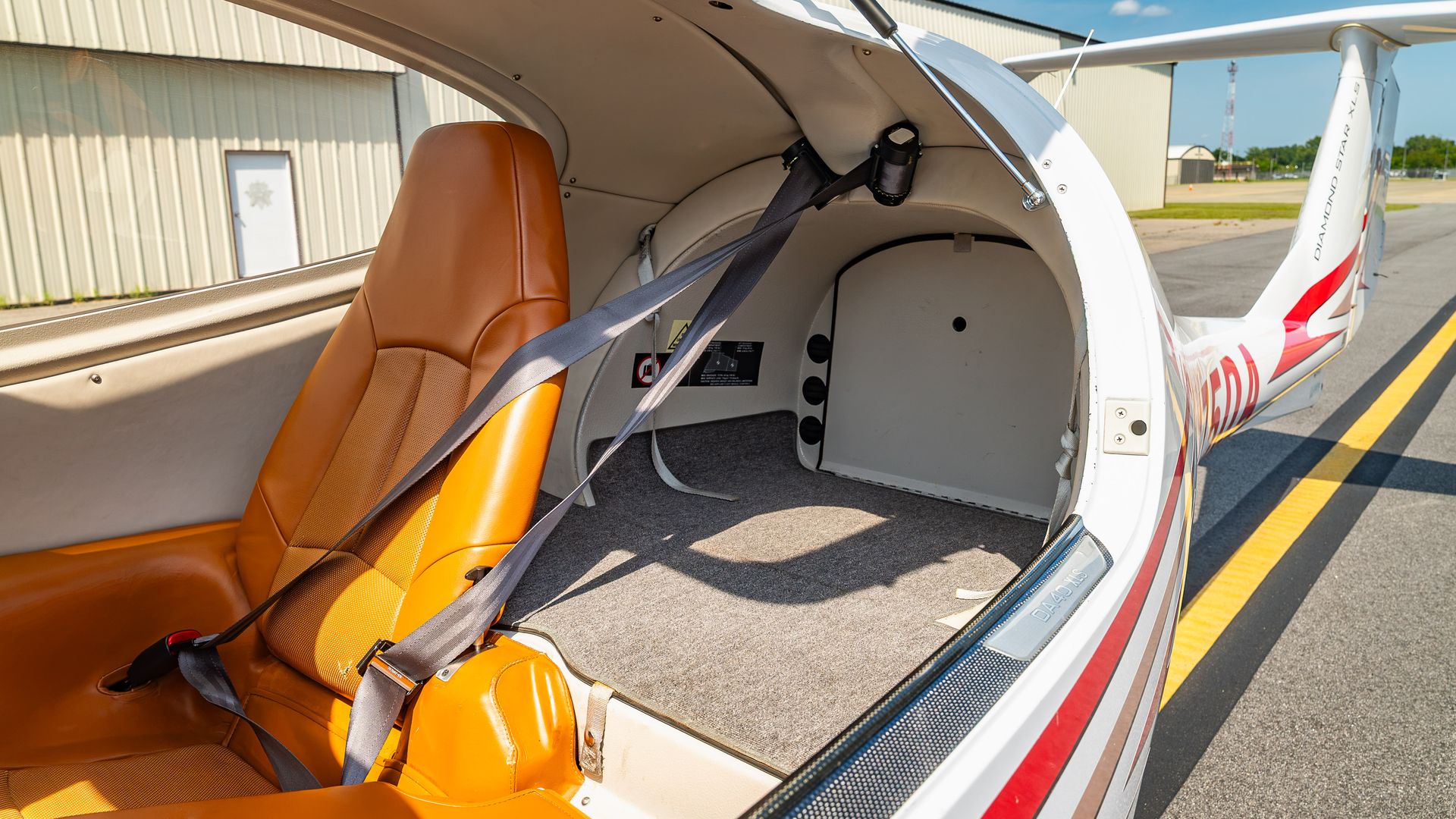

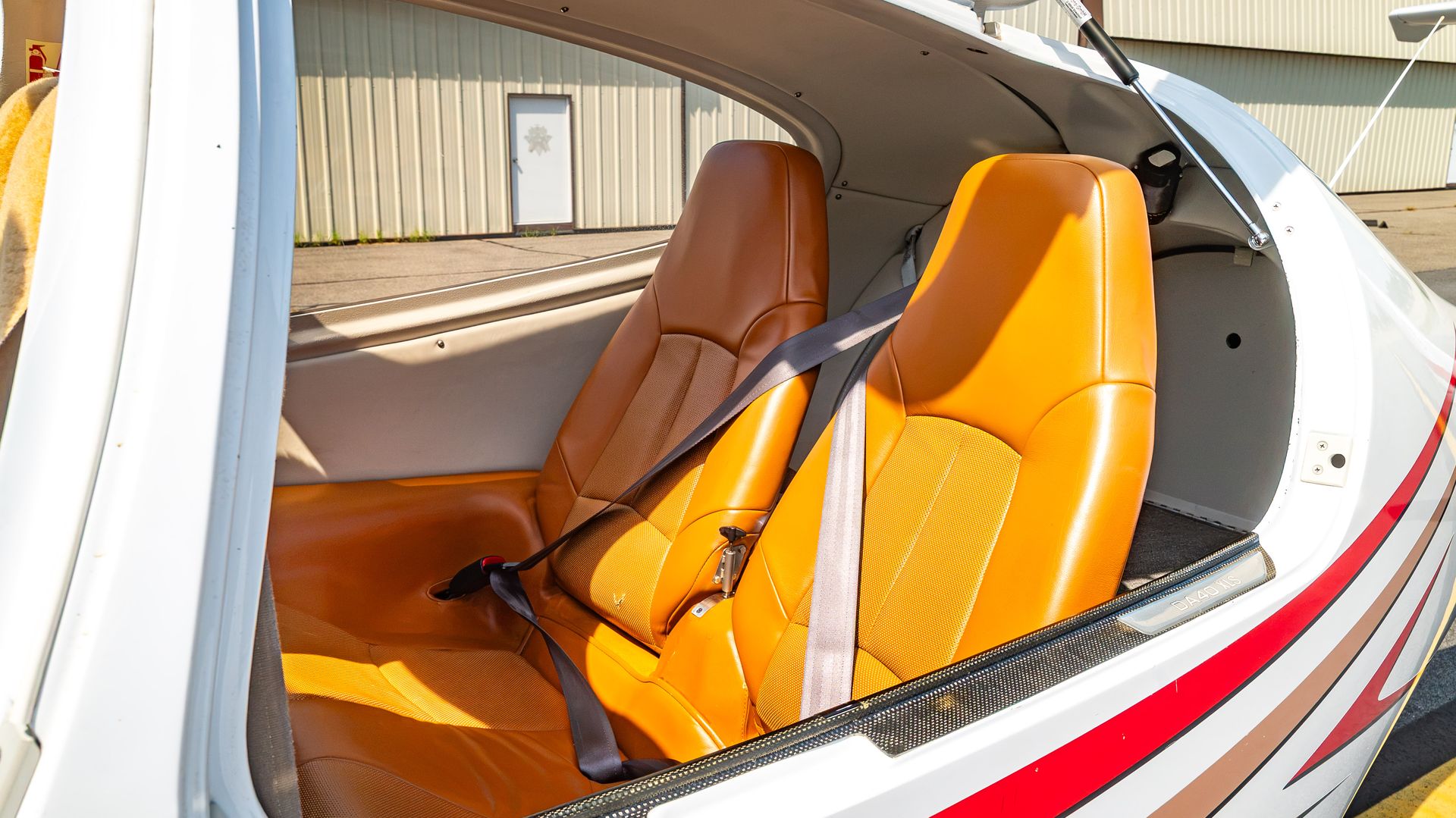

Interior
Standard Interior Equipment

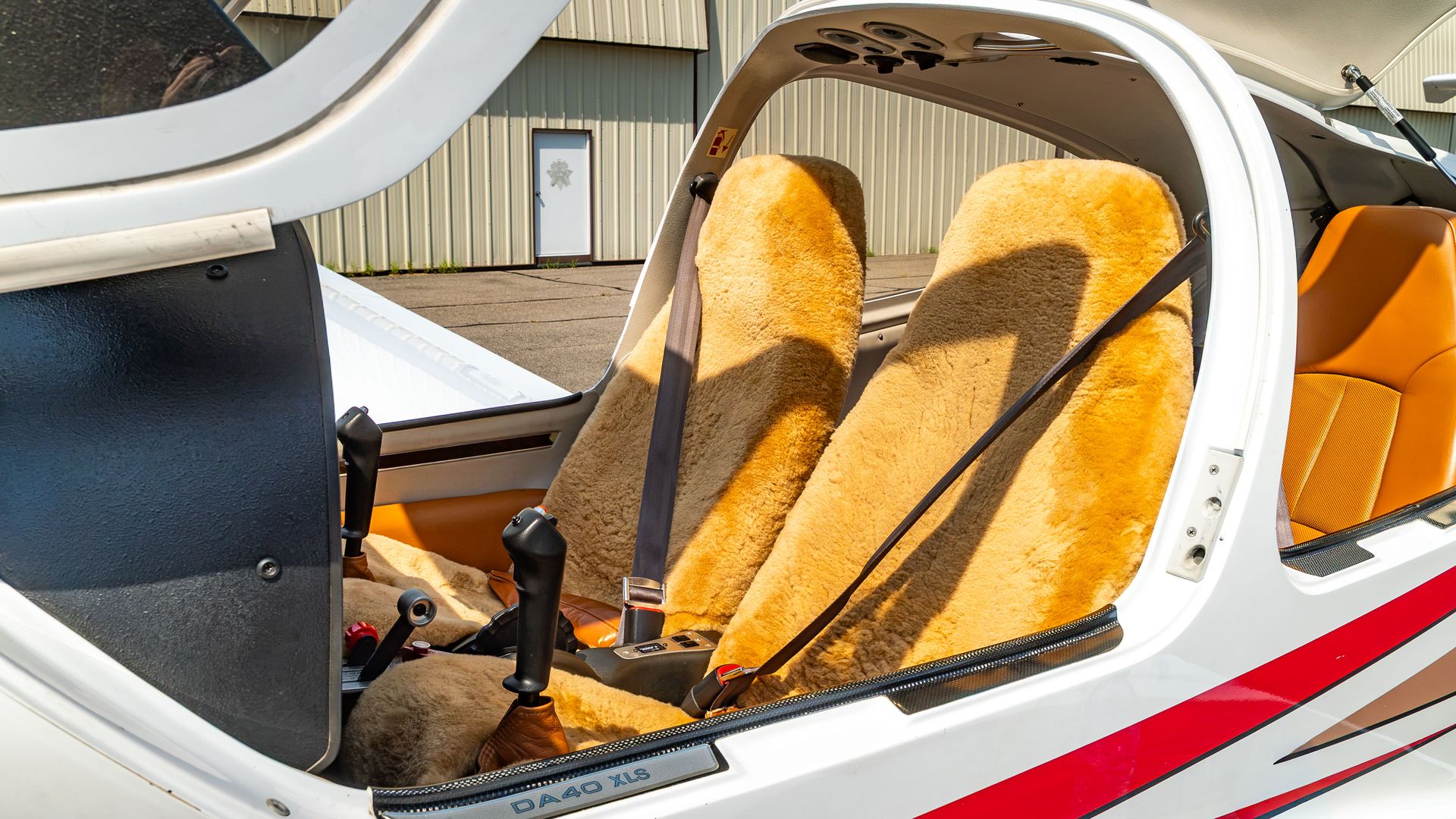

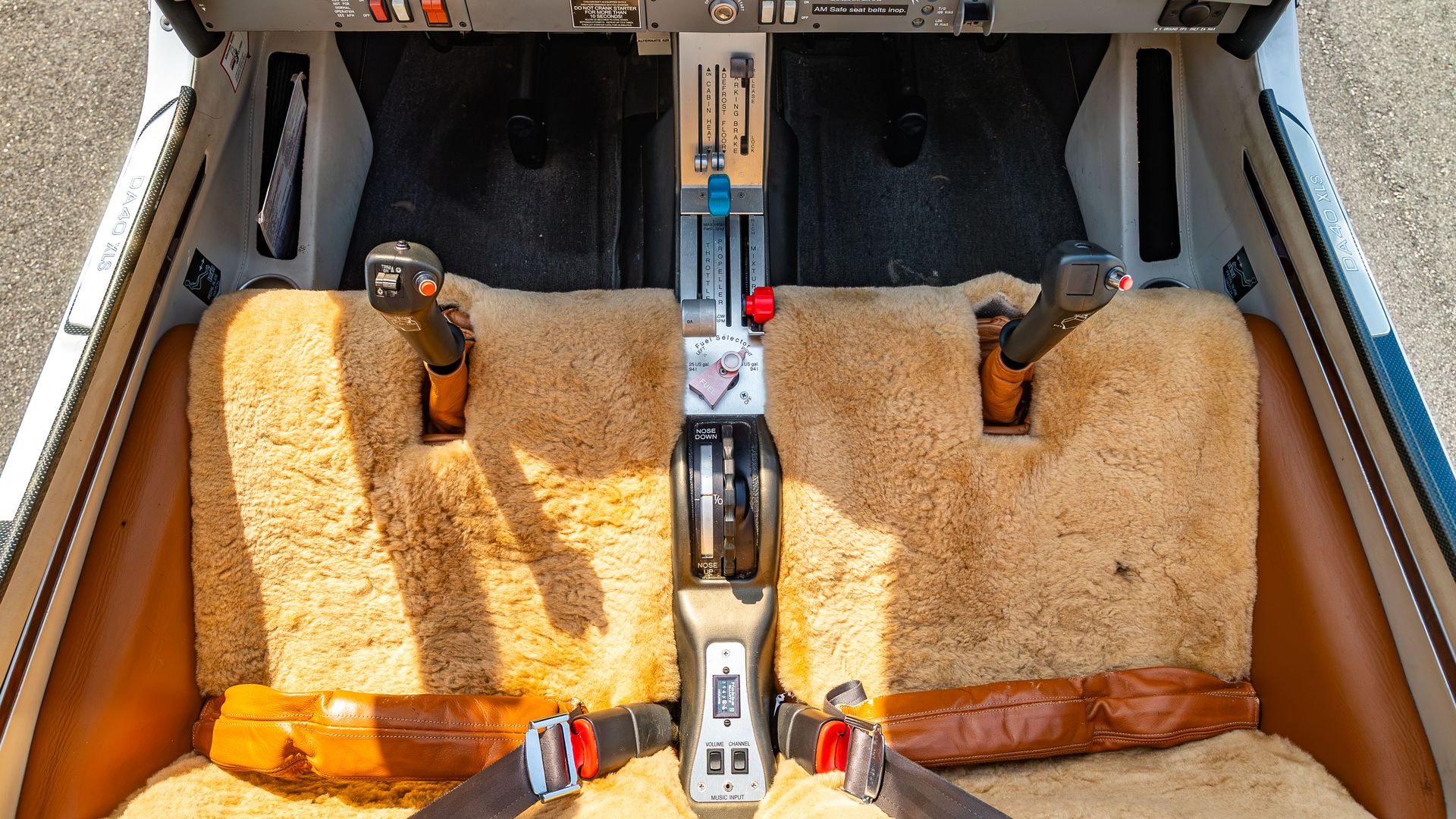

- Premium Leather Seats
- Sporty Curry Color
- New Wool Seat Covers
- Front Seats
Exterior
Standard Exterior Equipment
- High-gloss Multilayer White Paint
- Red Striping
- Electrically Operated Flaps System
Additional Equipment

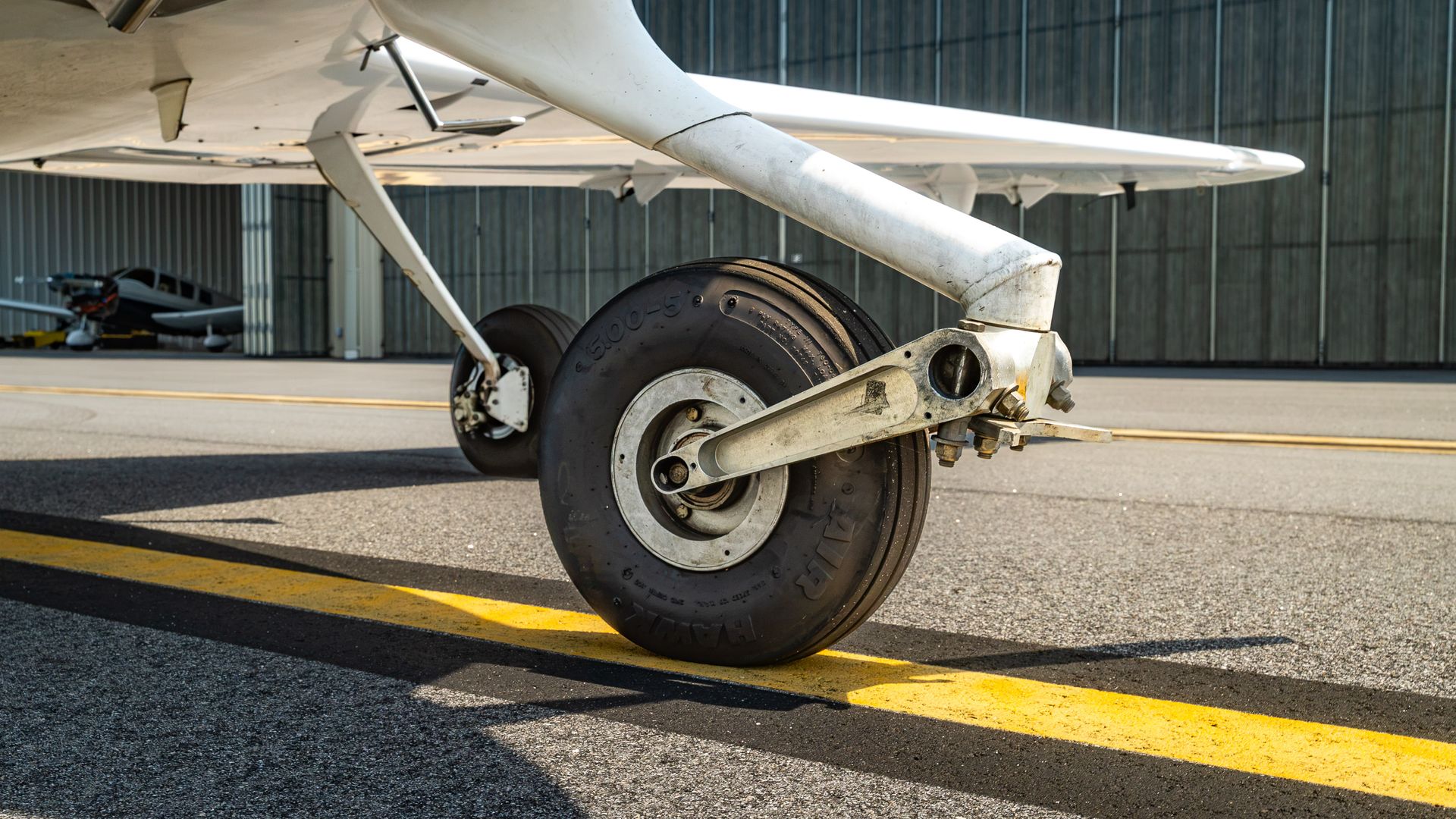

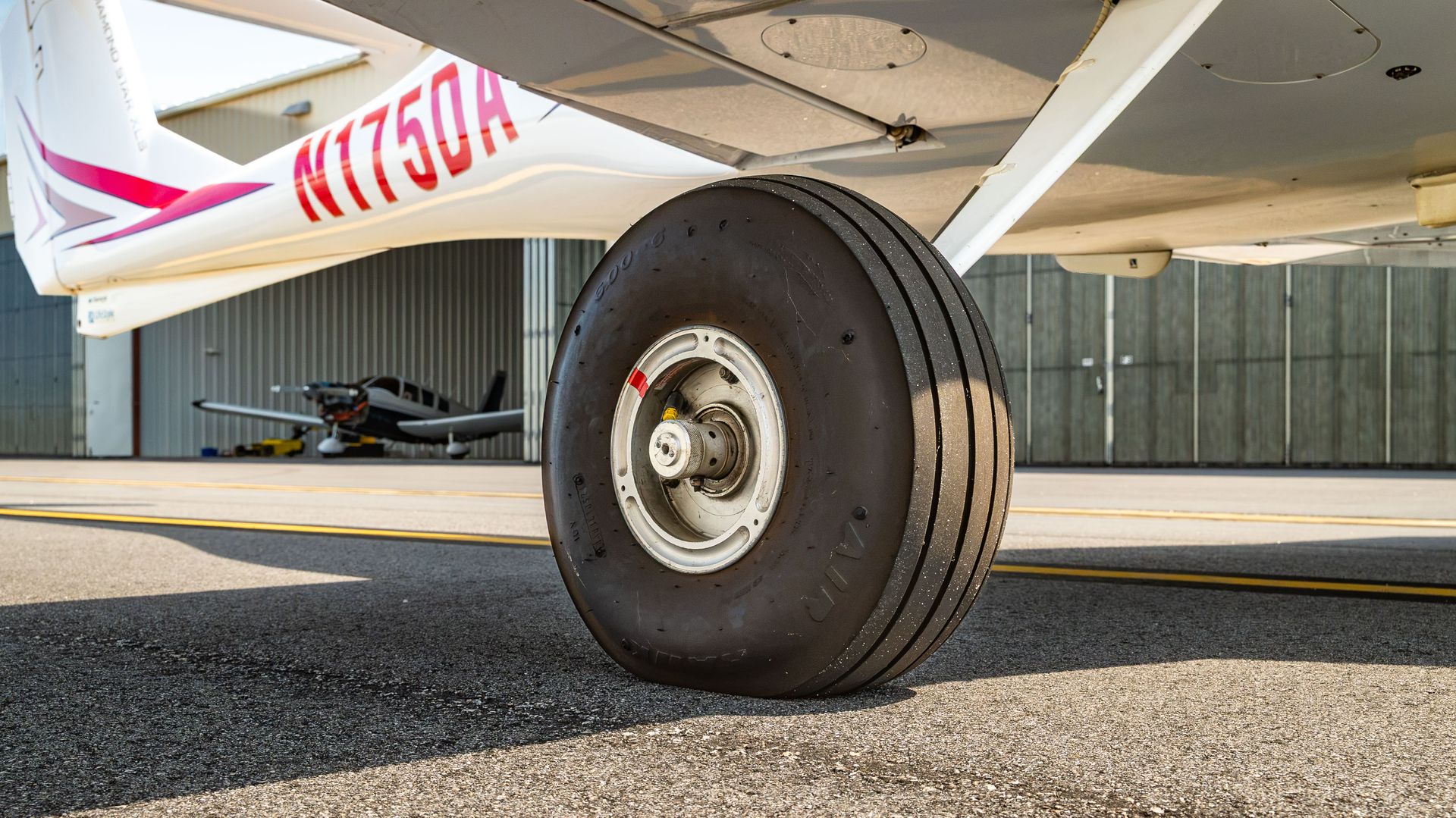

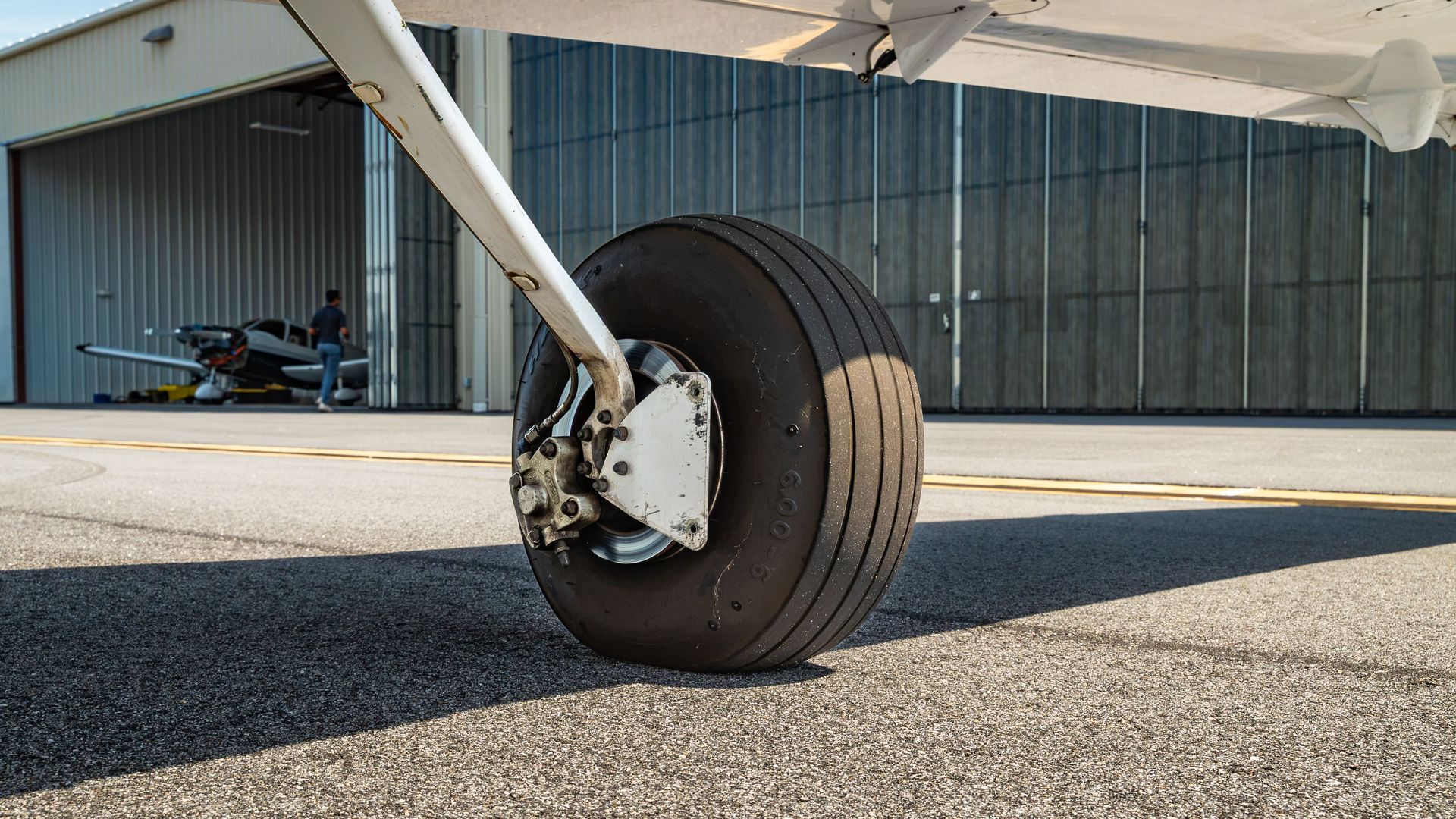

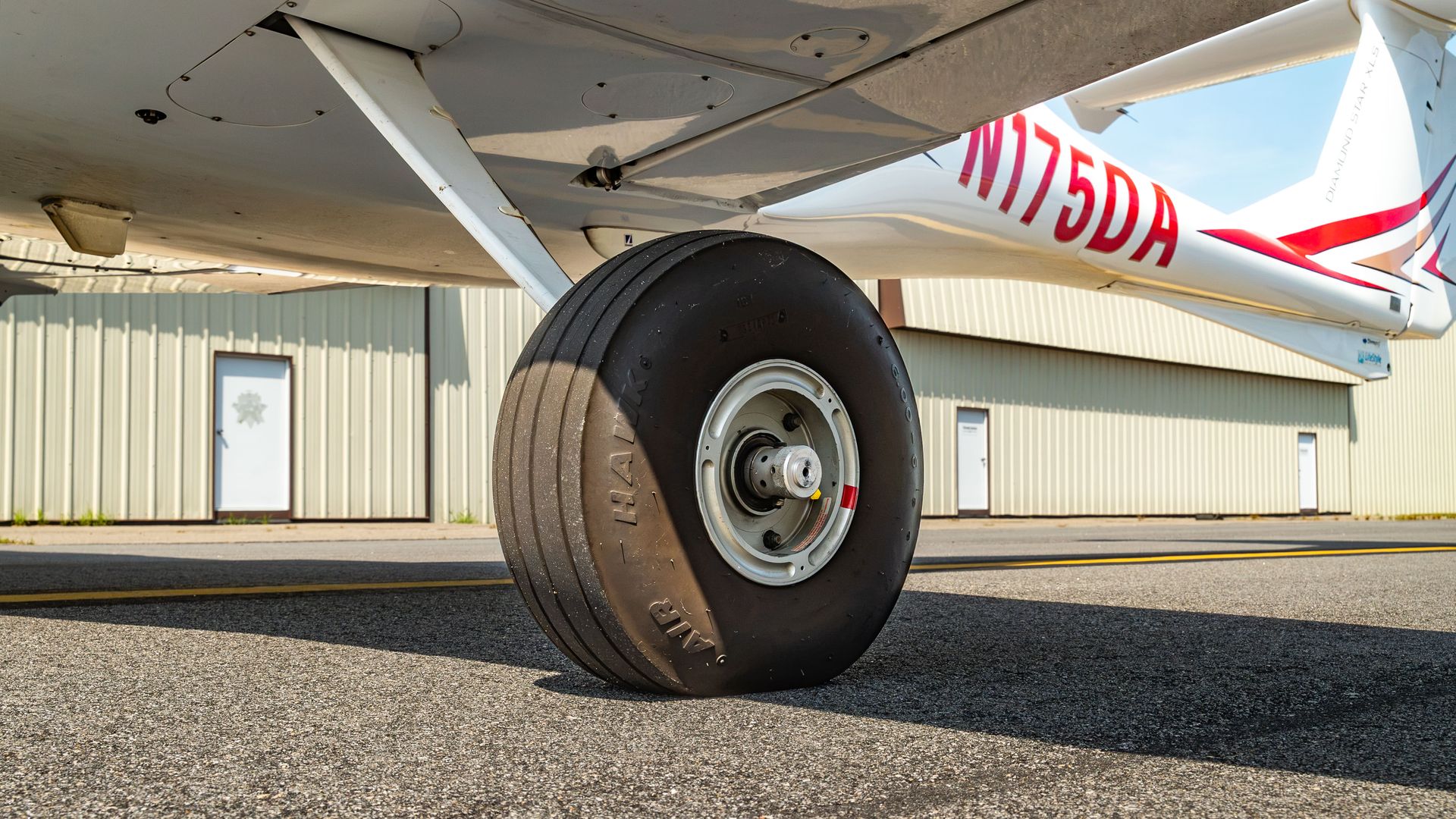

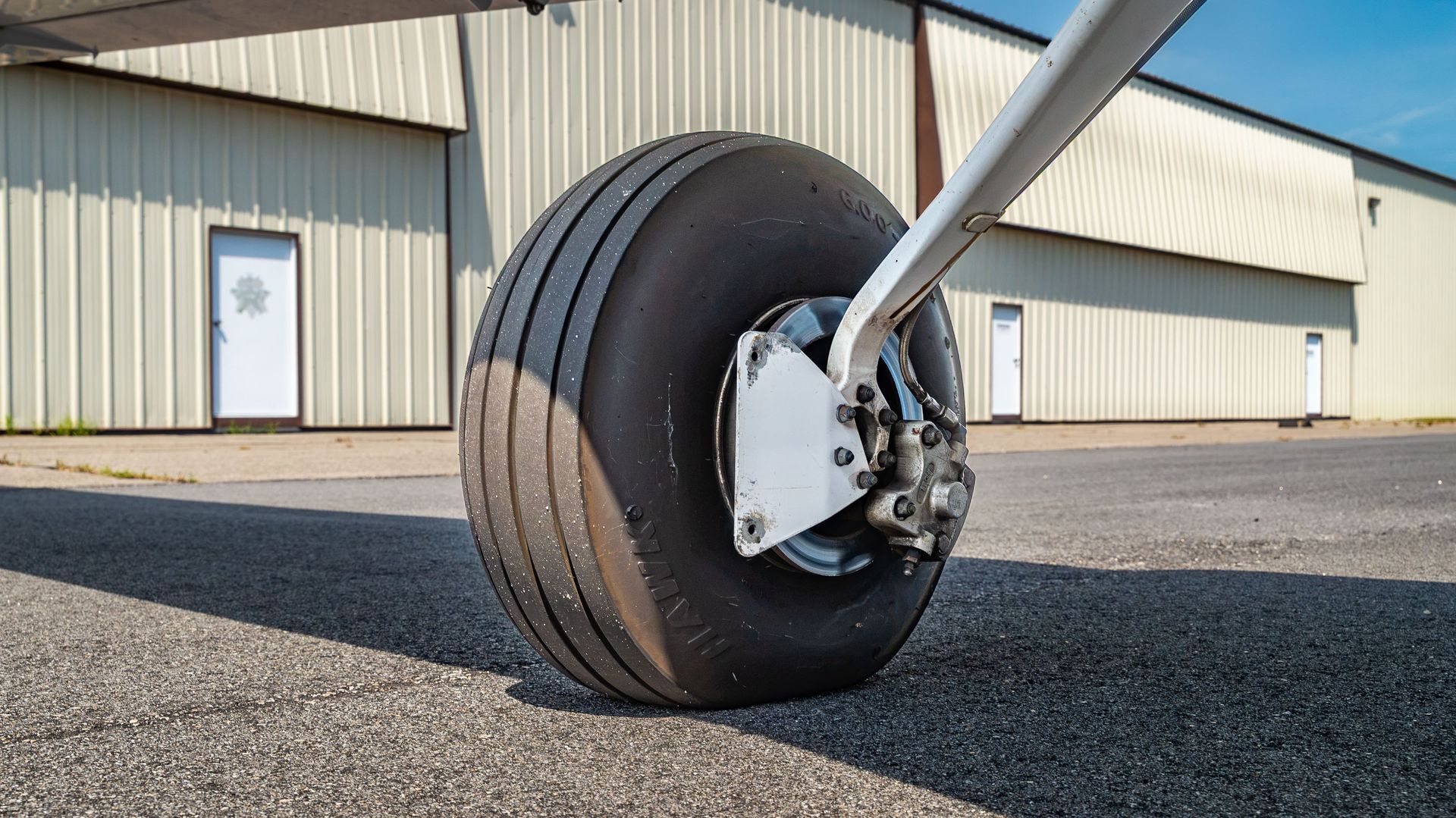

- Performance Landing Gear Kit
- Extended Range Fuel Tanks (50 US Gal)

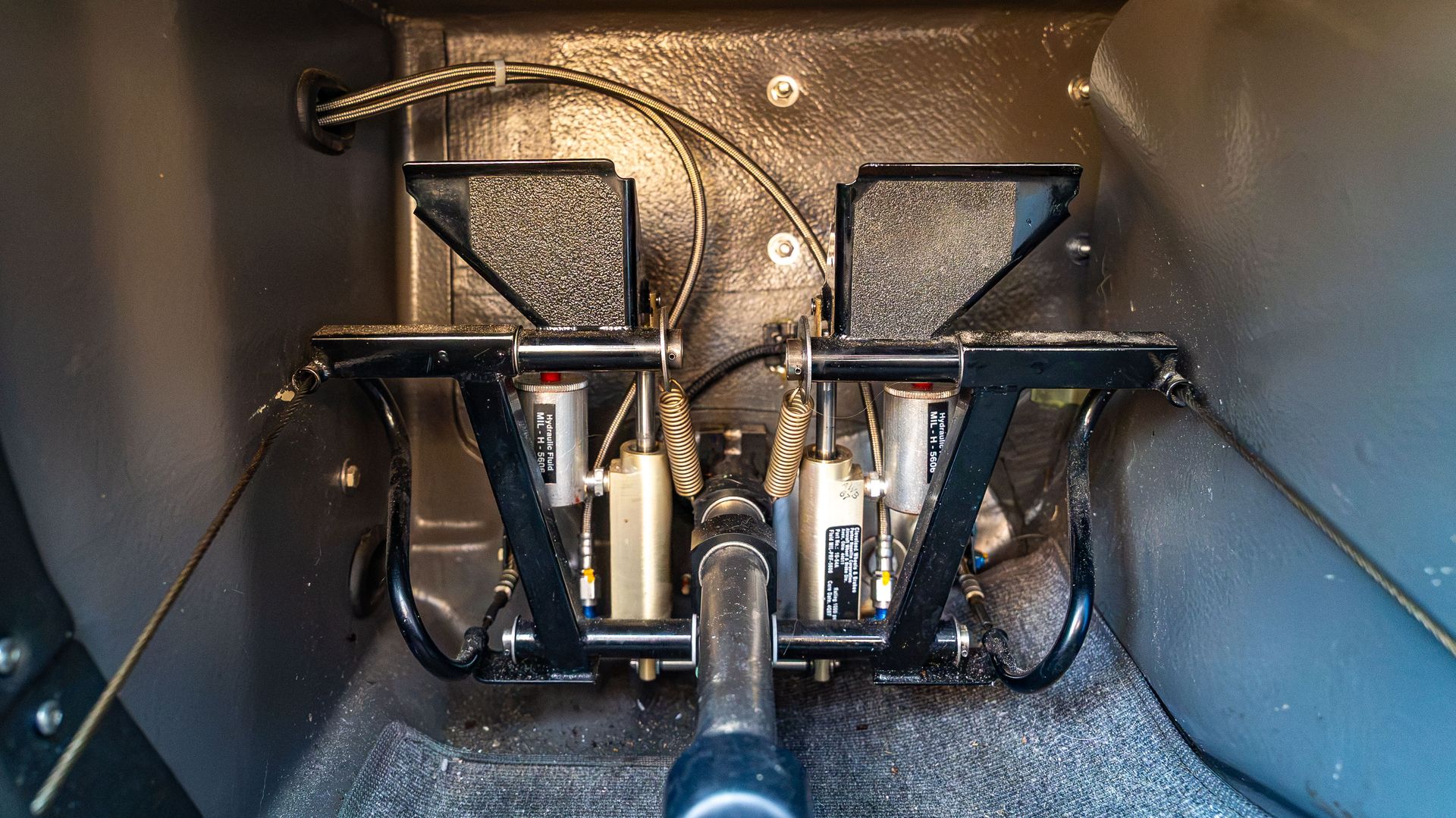

- Electronic Operated Rudder Pedals
- 4-Way Baggage Compartment System
- Bubble Canopy
- Power Flow Tuned Exhaust System
