N223PM

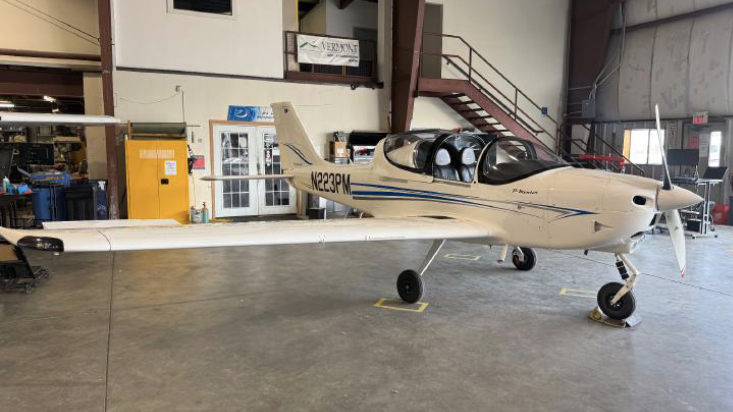

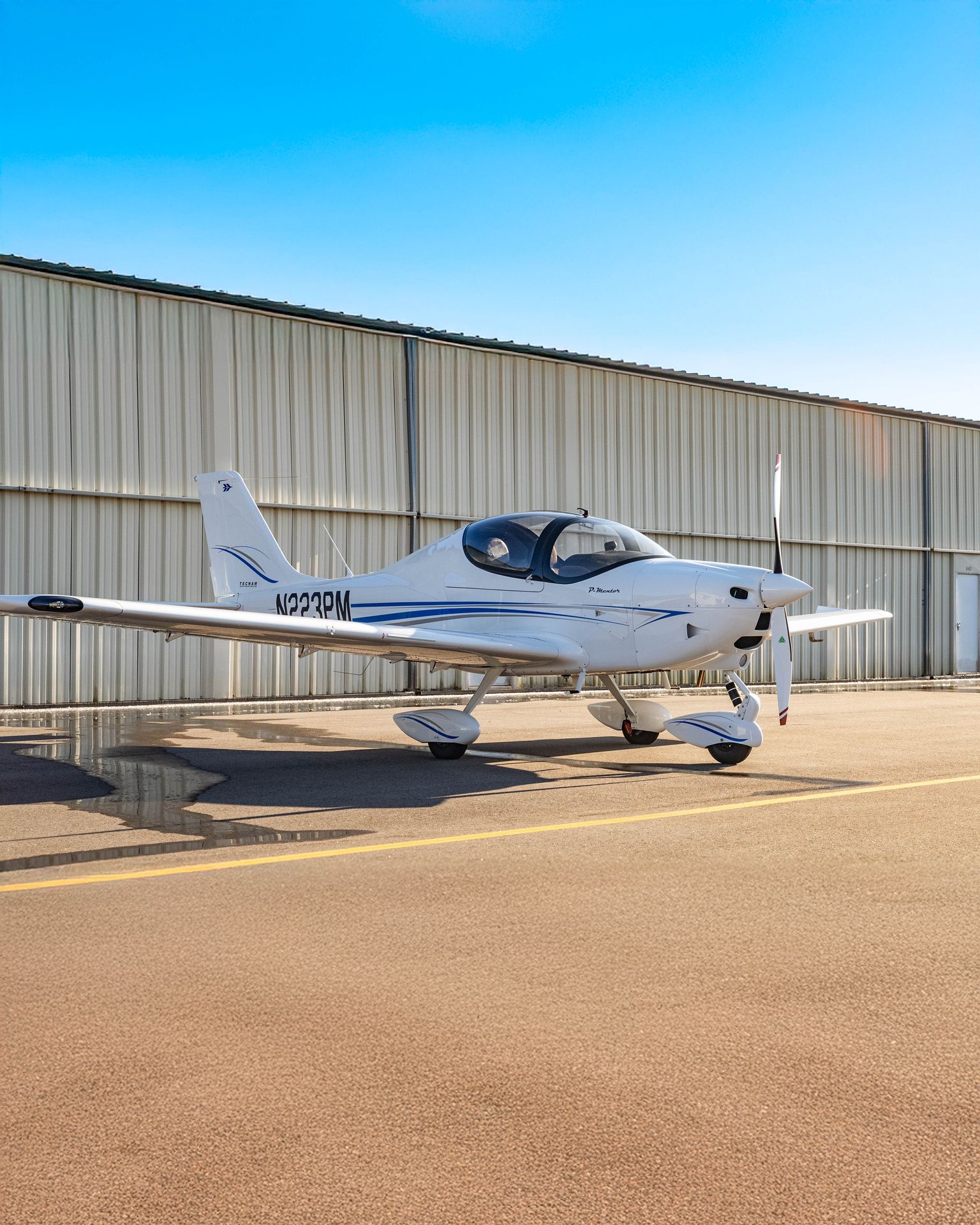

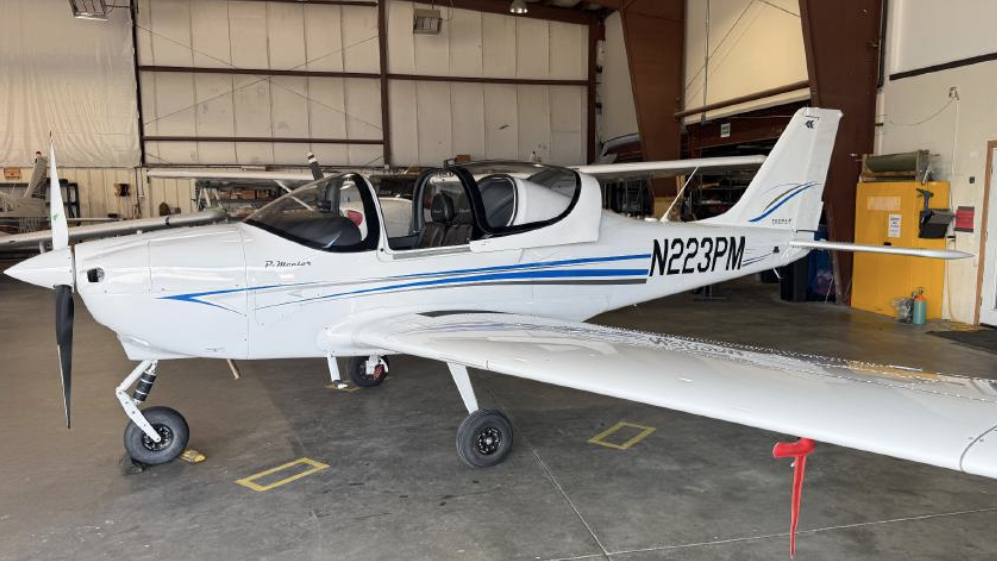

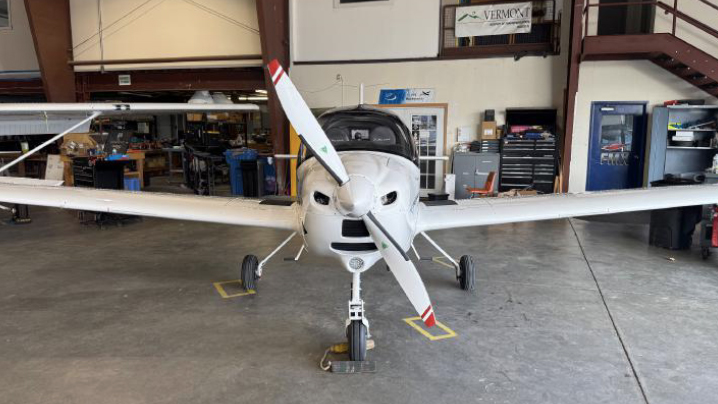

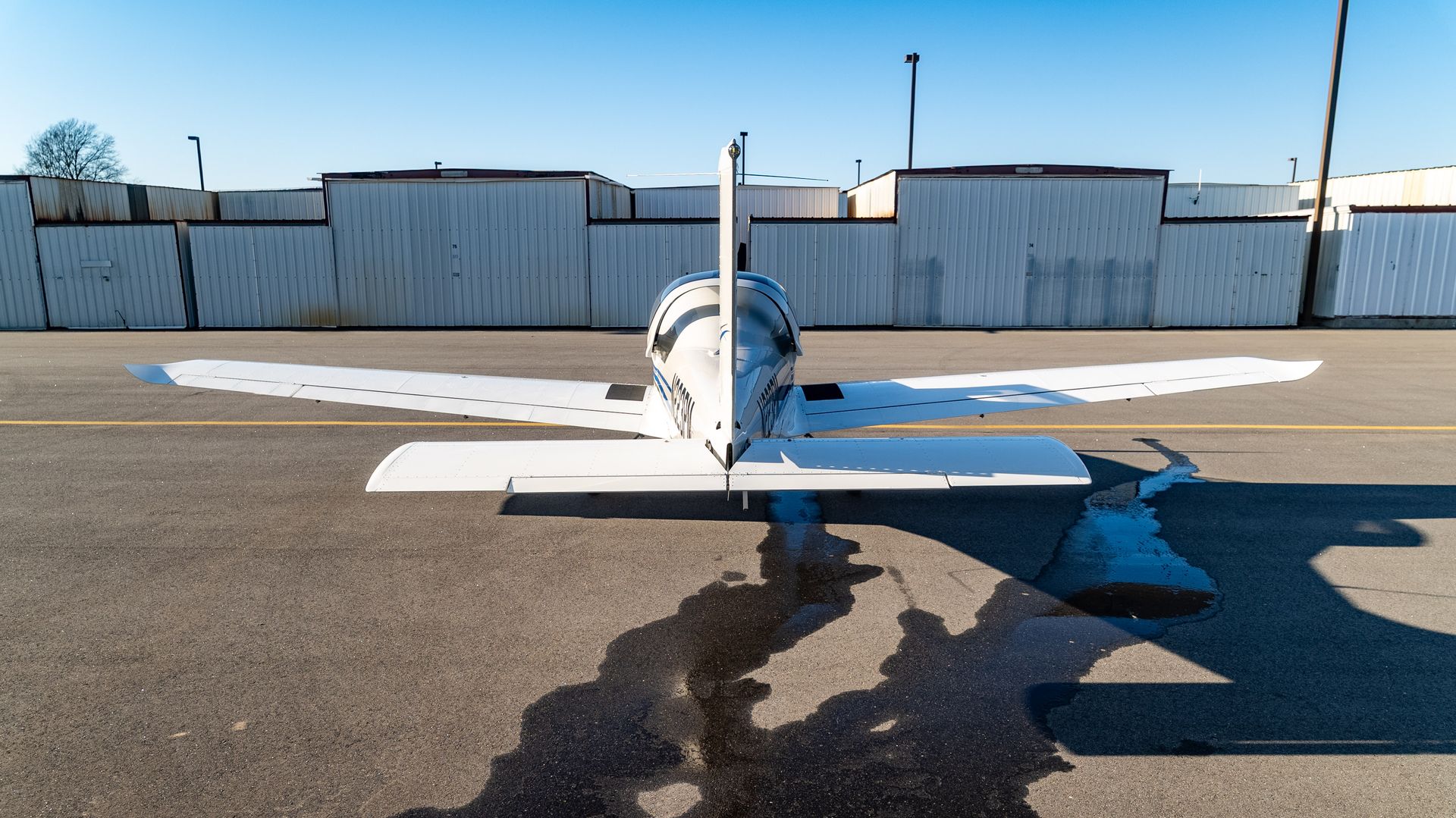

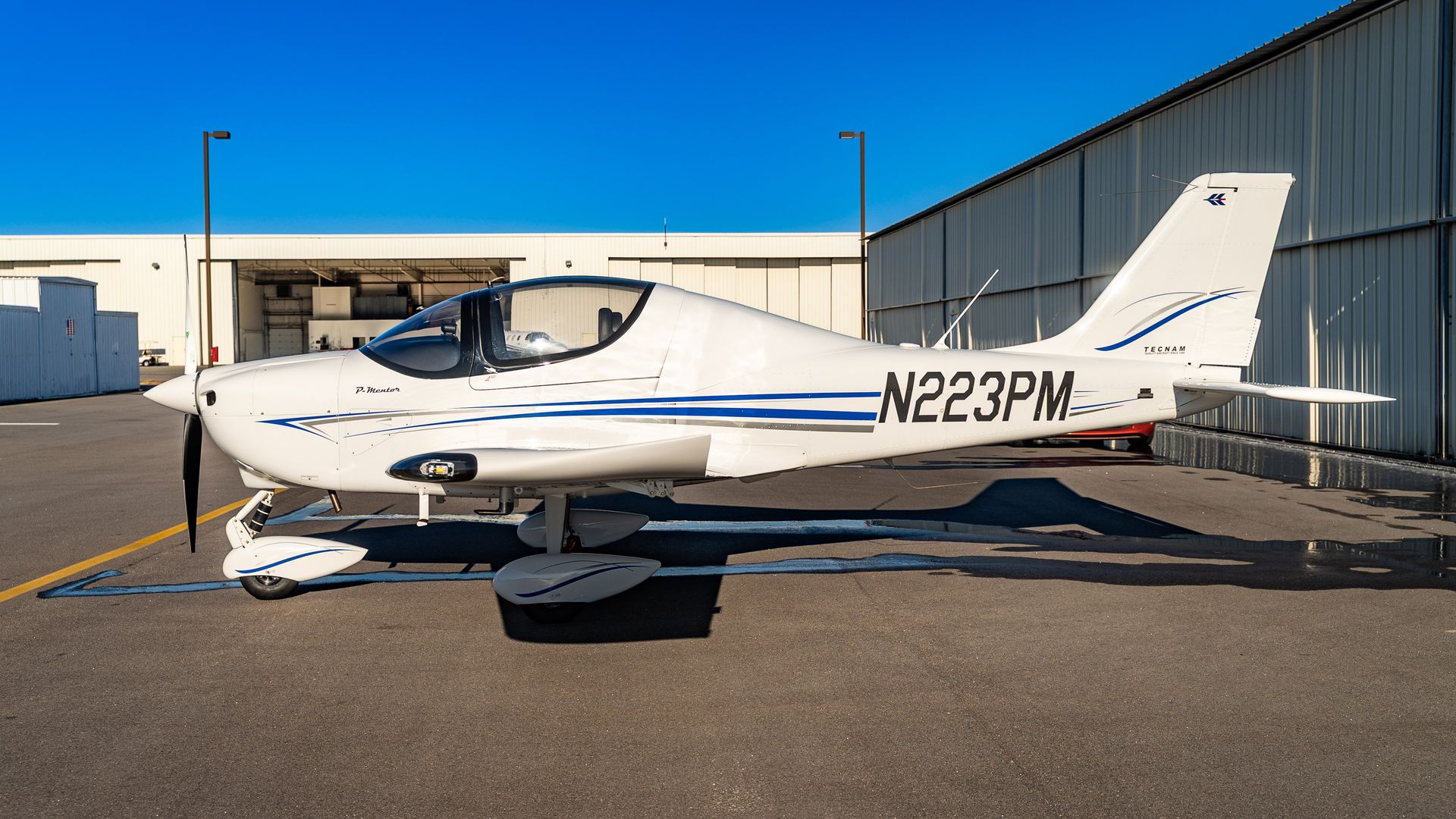

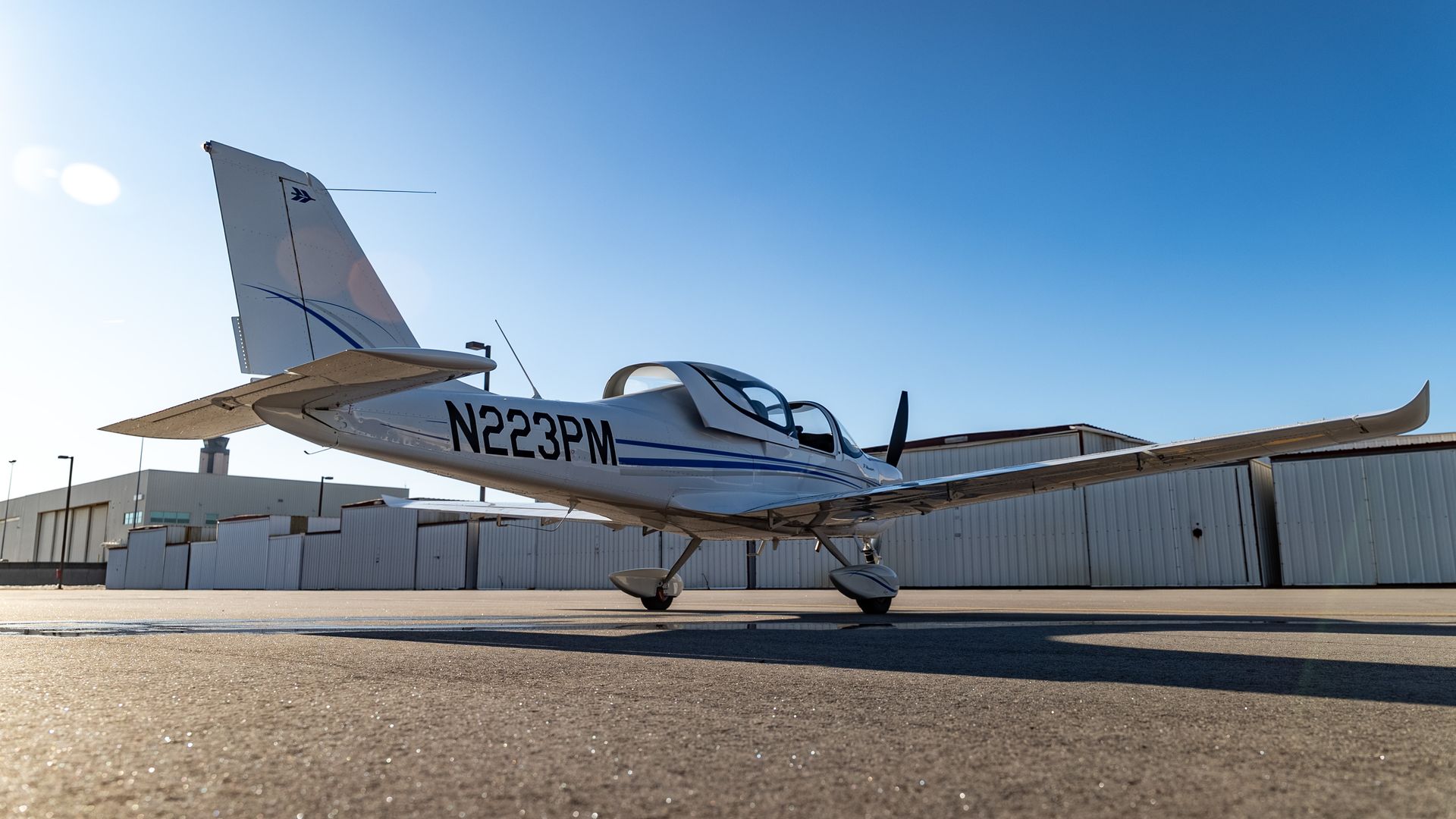

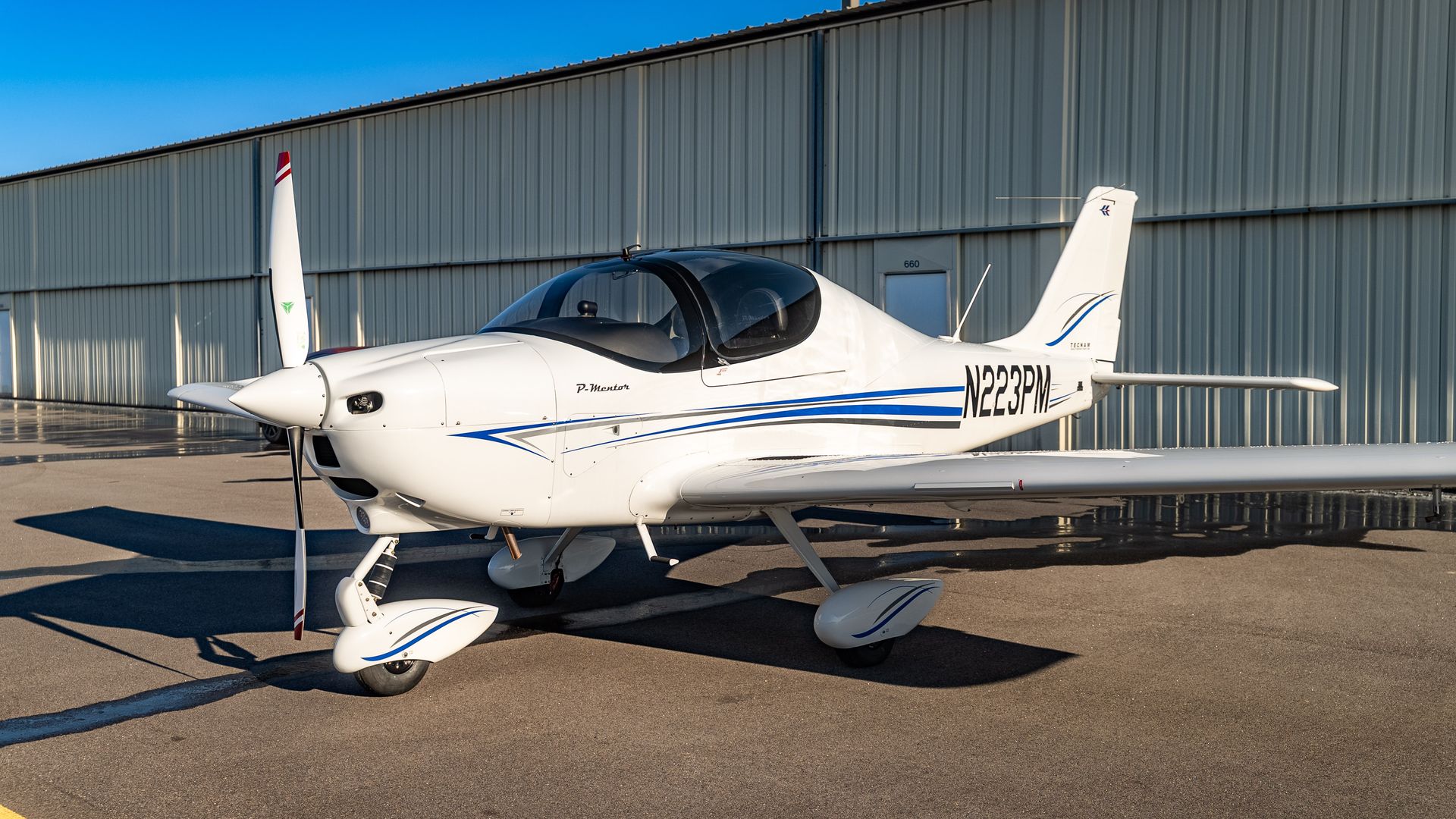

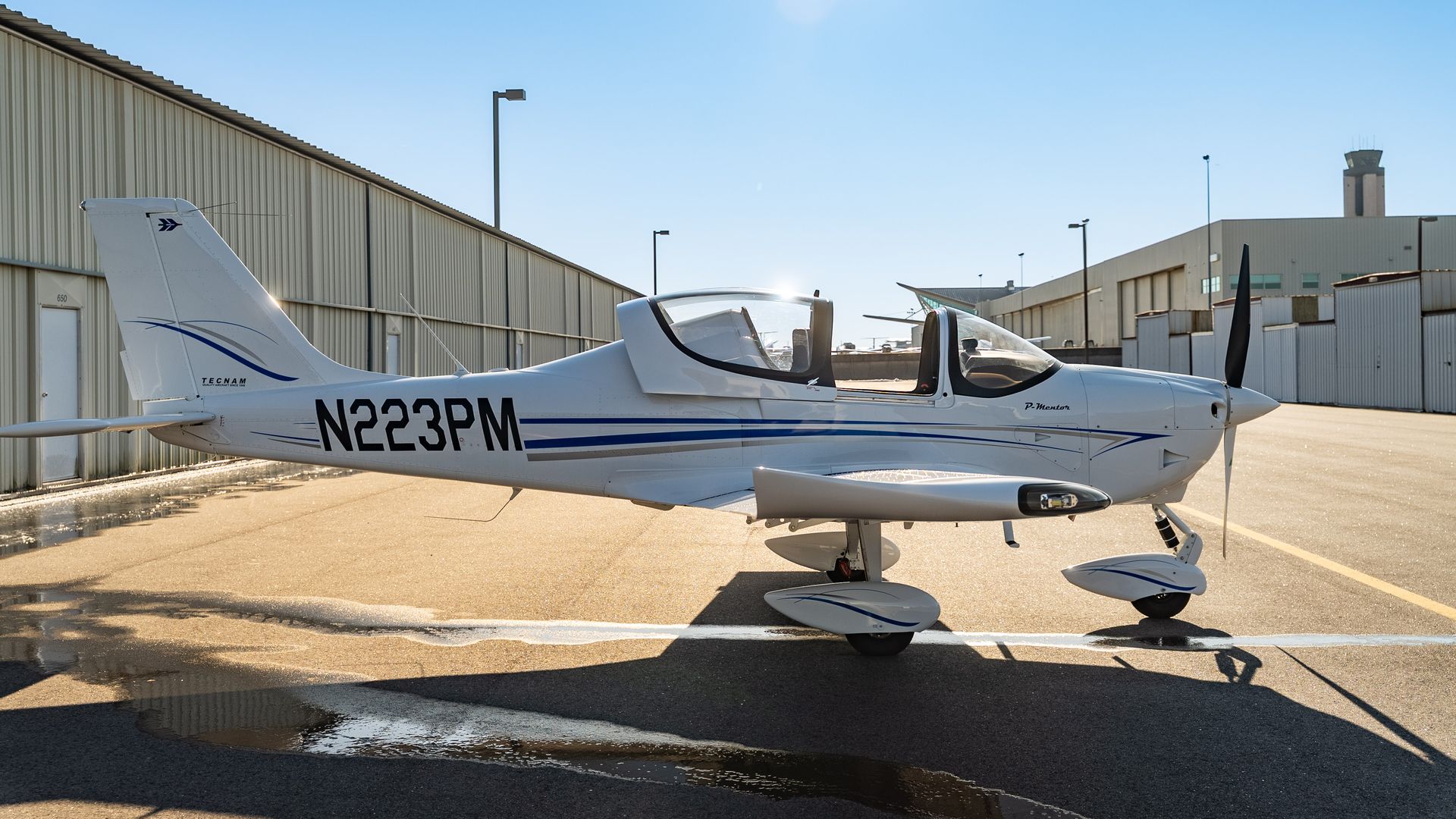

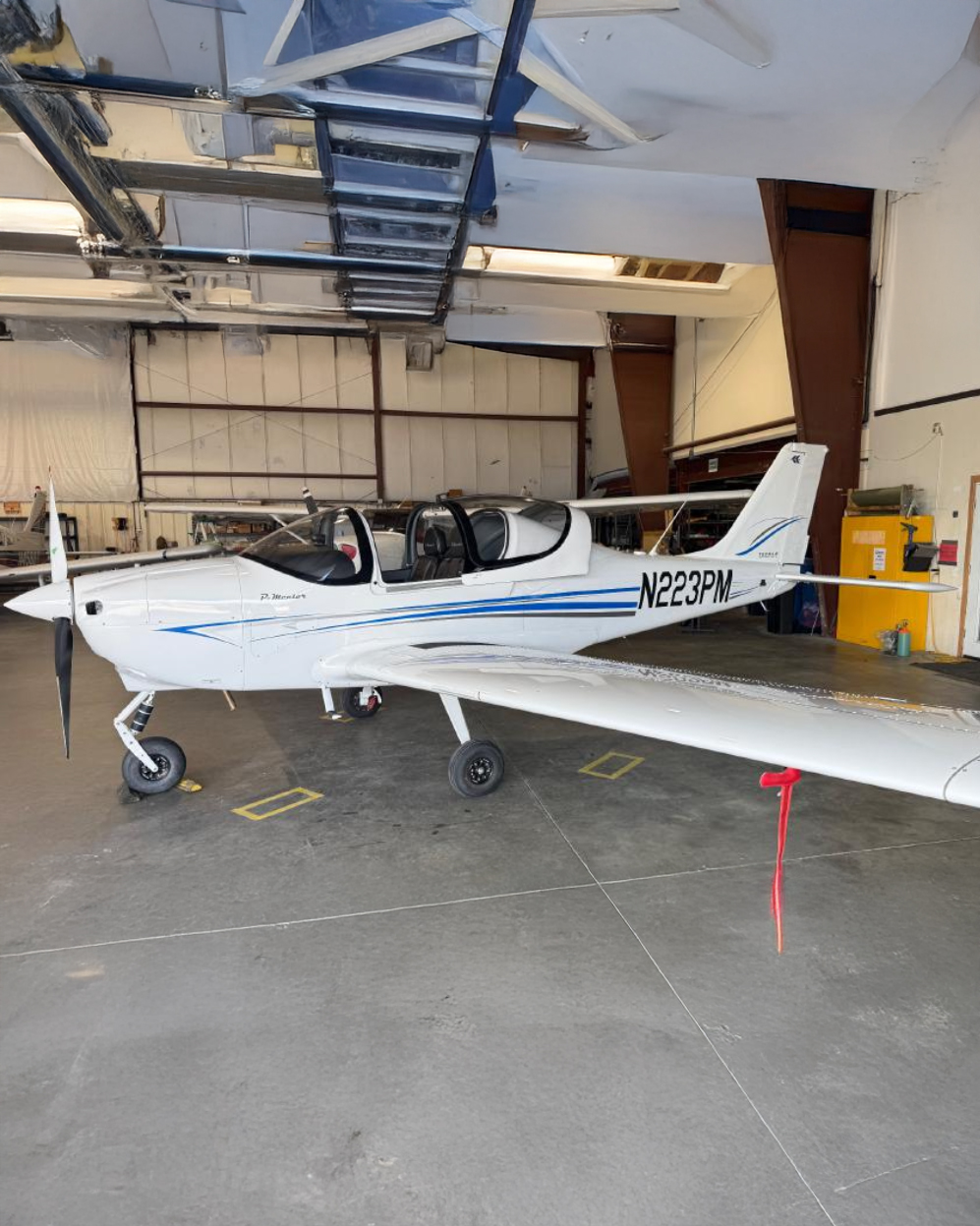

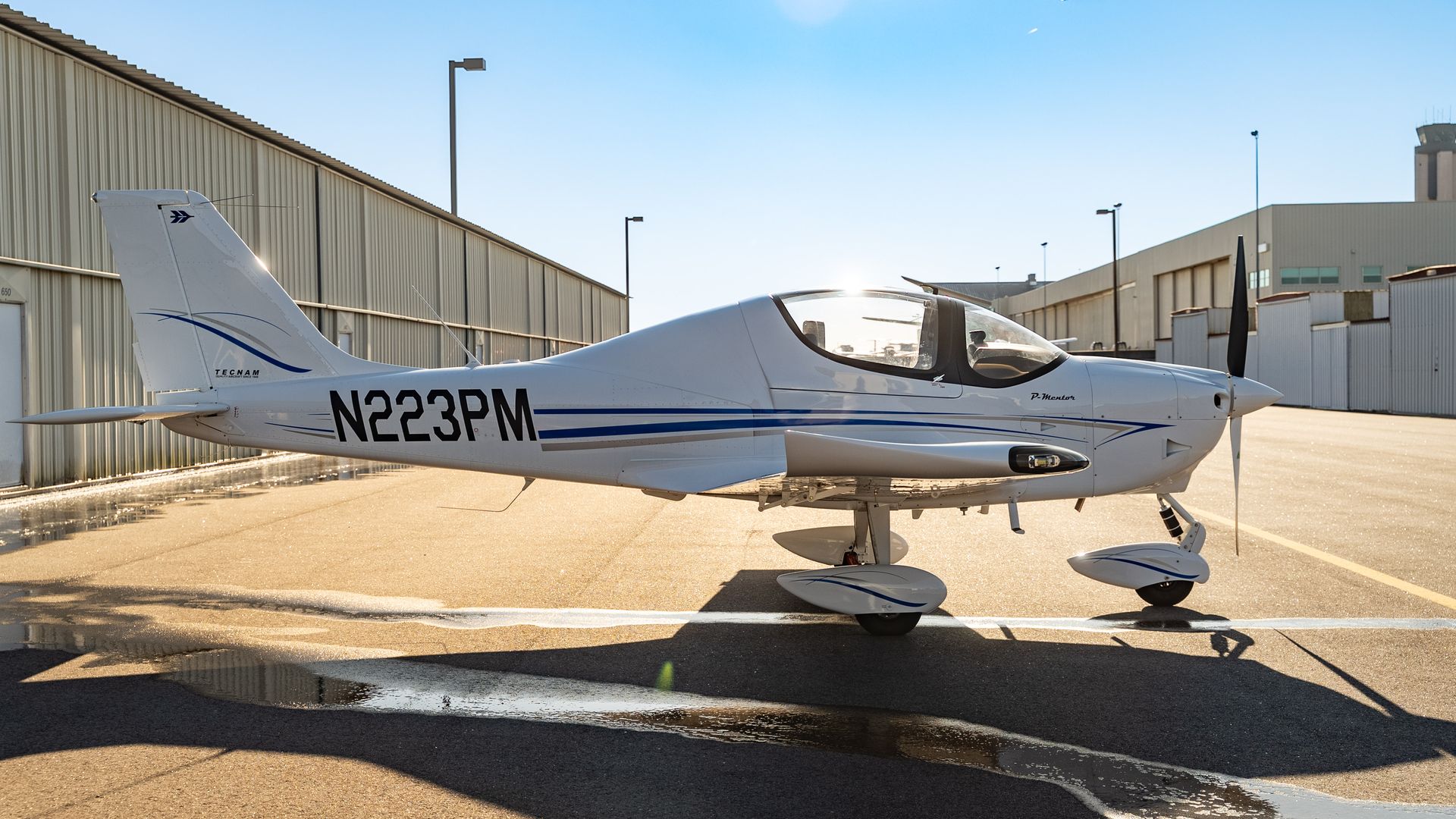

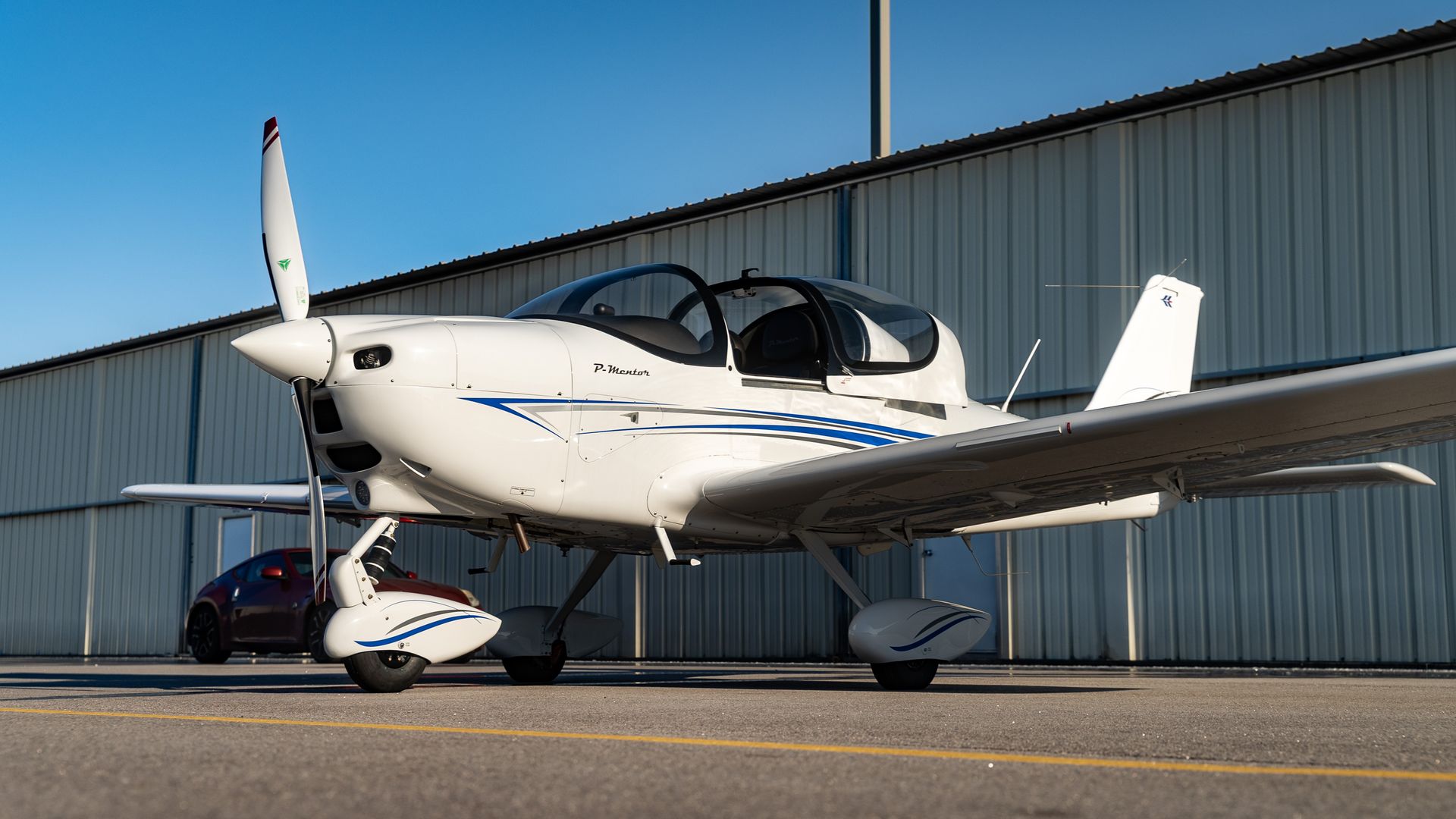

2024 Tecnam P-Mentor
Get pre-approved
The Tecnam P-Mentor delivers efficient, reliable performance for flight training, combining excellent fuel efficiency, superior handling, and advanced avionics in a compact, cost-effective design. This Part 23 IFR Certified trainer is ideal for primary, commercial and instrument flight training. With a fuel burn of 3.7 Gal/Hr. it is more efficient than even Light Sport aircraft but features high useful load built for flight training.
used
2 seats
KBTV
200.0 hours TT
Key Features
Autopilot
Basic Information
Aircraft Information
| Manufacturer | Tecnam |
| Model | P-Mentor |
| Year | 2024 |

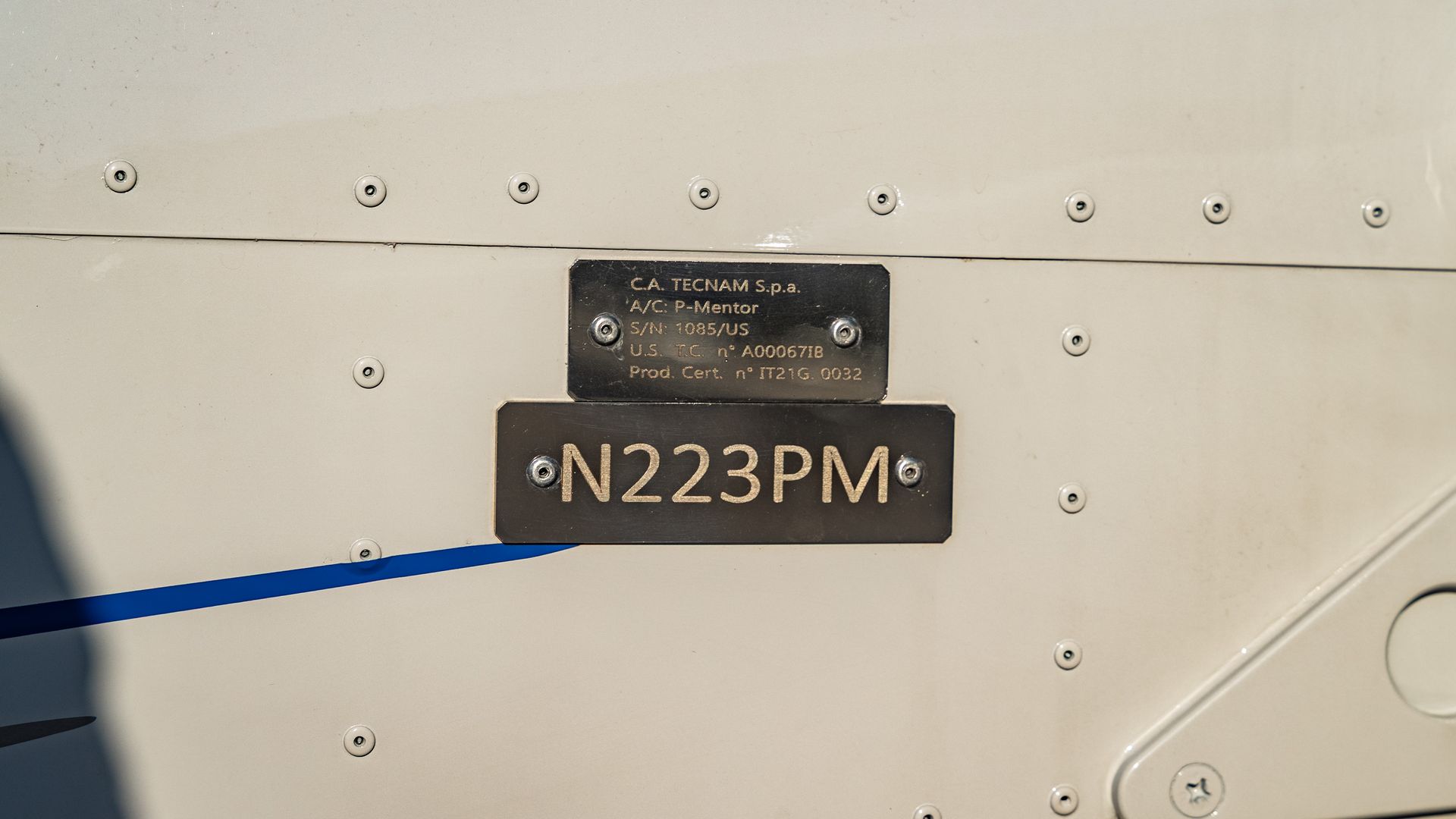

| Registration | N223PM |
| Serial Number | 1085/US |
Maintenance Status
| Total Time | 200.0 Hours |
| Last Annual | -- |
| Warranty Status | -- |
Technical Specifications
| Fuel Type | multifuel |
| Seats | 2 |
| Location | KBTV |
| Useful Load | -- |
Technical Details & Equipment
Airframe

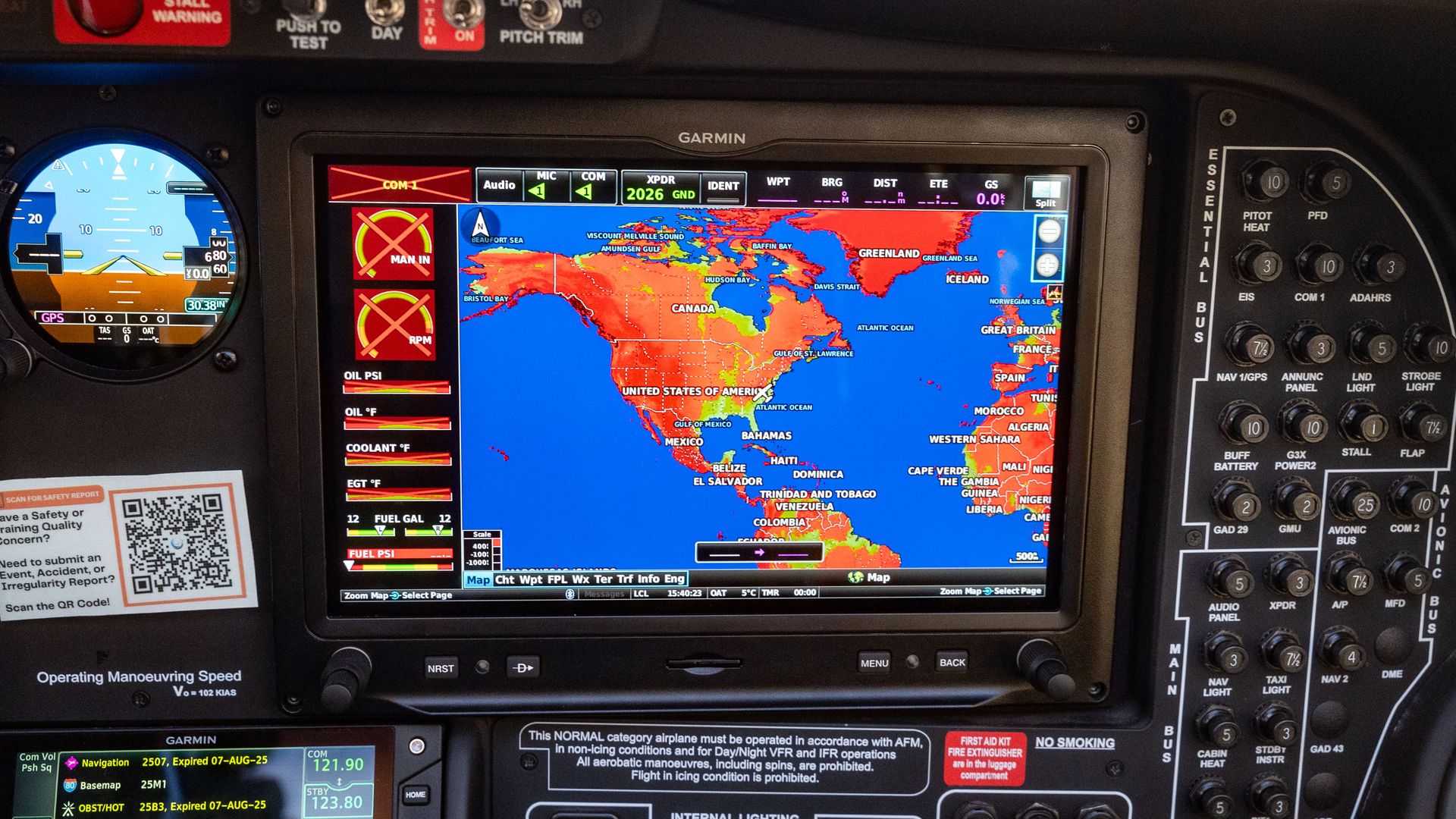

DUAL DISPLAY GDU 460 SYSTEM WITH EIS
- PFD/MFD GDU 460 Display
- MFD/EIS GDU 460 Display
- GSU 25D ADAHRS #1
- GEA 24 EIS
- GMU 11 Magnetometer
- OAT Probe GTP 59
Engine Instruments, Displayed in the G3X
- RPM Indicator
- Hour Recorder
- Oil Press
- Oil Temp.
- Coolant Temp.
- Fuel Press.
- Voltmeter
- Ammeter
- LH + RH Fuel Qty
- Chronometer
- OAT
Other Instruments/Warnings
- Garmin GI-275 - Standby Attitude Module Digital
- Compass, lighted
- Double Annunciator Panel with Push to Test:
- Stall Warning voice/light
- Low Fuel Level LH & RH
- Pitot Heat, Pitot Heat On
- Back up Batt
- EMS
- Lane A & B
- Batt Fault
- Pitot Heat, Pitot Heat On

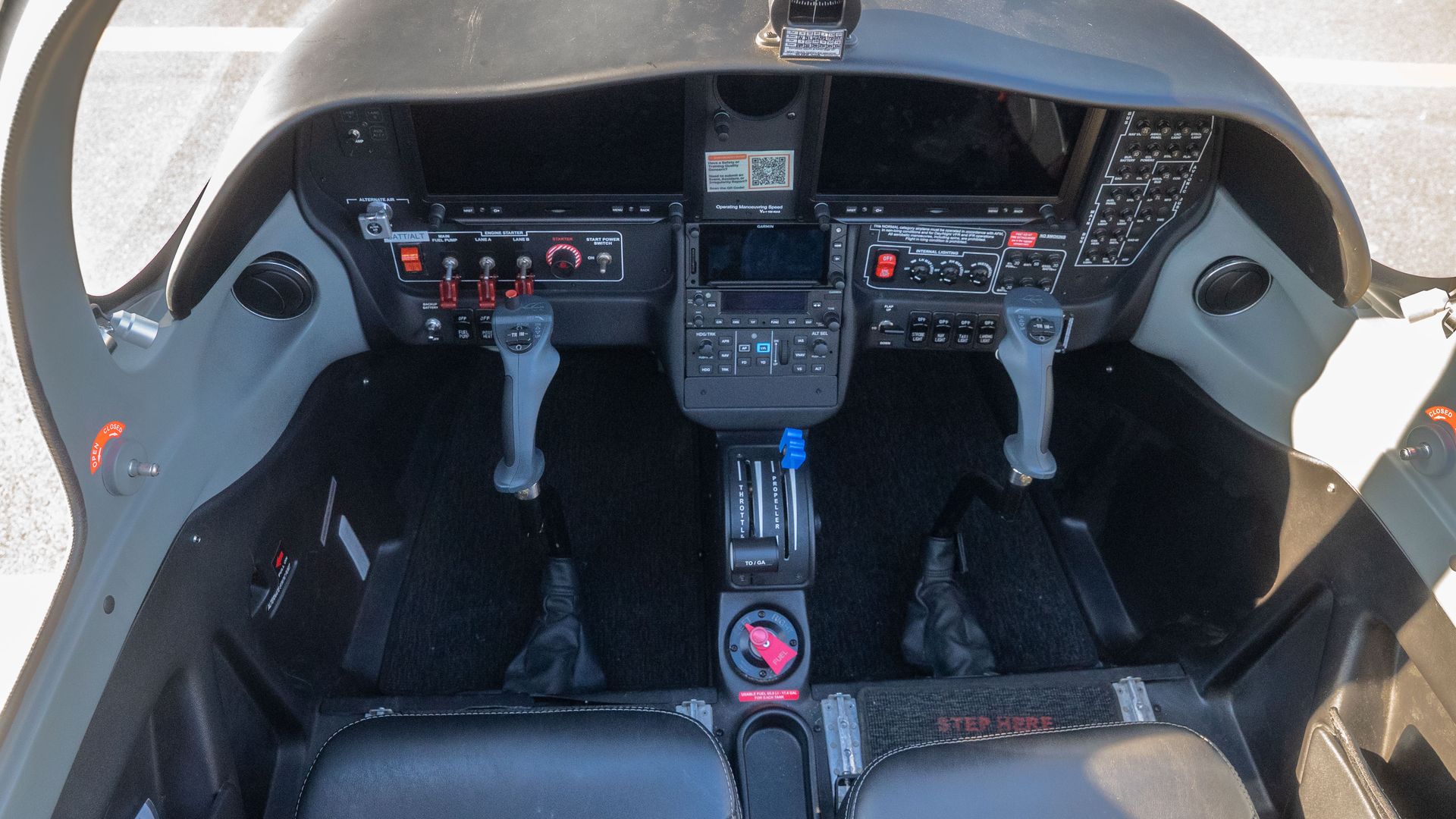

Flight and Engine controls
- Hydraulic Toe Brakes
- Parking Brake
- Electrical Flaps, Pre Select
- Dual Flight Controls
- Steerable Nose Wheel
- Stabilator Trim (electric actuated from stick)

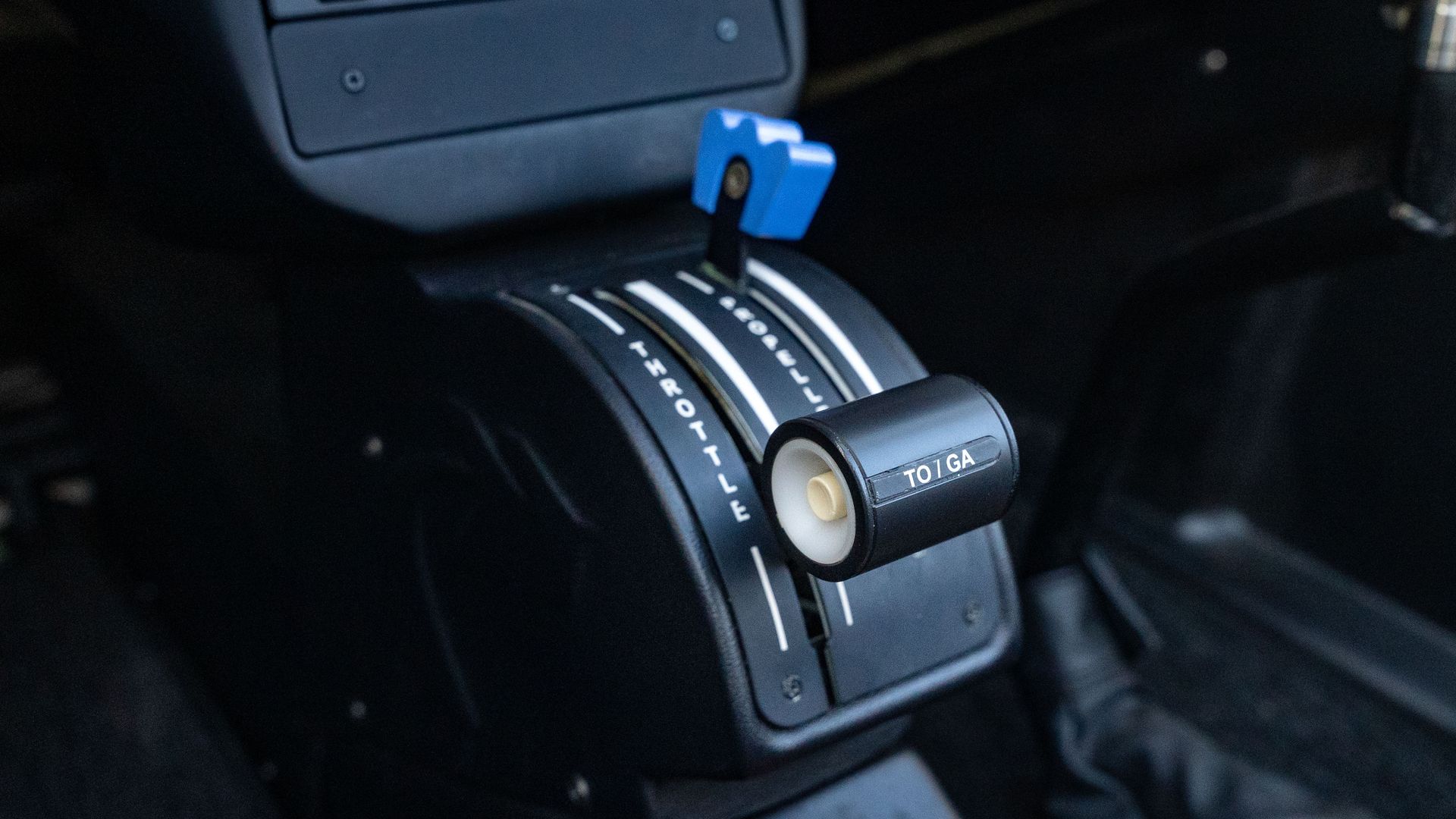

- Central Quadrant with Single engine Throttle Lever
- Andair Fuel Selector
- Engine Panel Switches:
- Master/Field
- Line a & B, guarded
- Starter Push Button
- Start Power Switch
- Momentary Switch
Electrical system
- Integrated Generator A-16 Amp 14 vdc
- Integrated Generator A-30 Amp 14 vdc
- Lithium Battery 15,5 Ah 12 vdc ETX900
- External Power Supply Receptable
- Circuit Breaker Pane
Fuel system
- Two Integral Fuel Tanks with 130 litres/ 34
- US Gal total capacity
- Engine Driven Fuel Pump
- Auxiliary Fuel Pumps, electric
- Fuel Quick Drain
- 1 X Shut Off And Fuel Selector Valve ANDAIR
VFR Night Features
- Heated Pitot
- Instrument Light
- Emergency Light
- Map Light
- Dimmers
- Taxi Light Led
- Compass Lighted
- Alternate Static Source
- Day & Night Switch

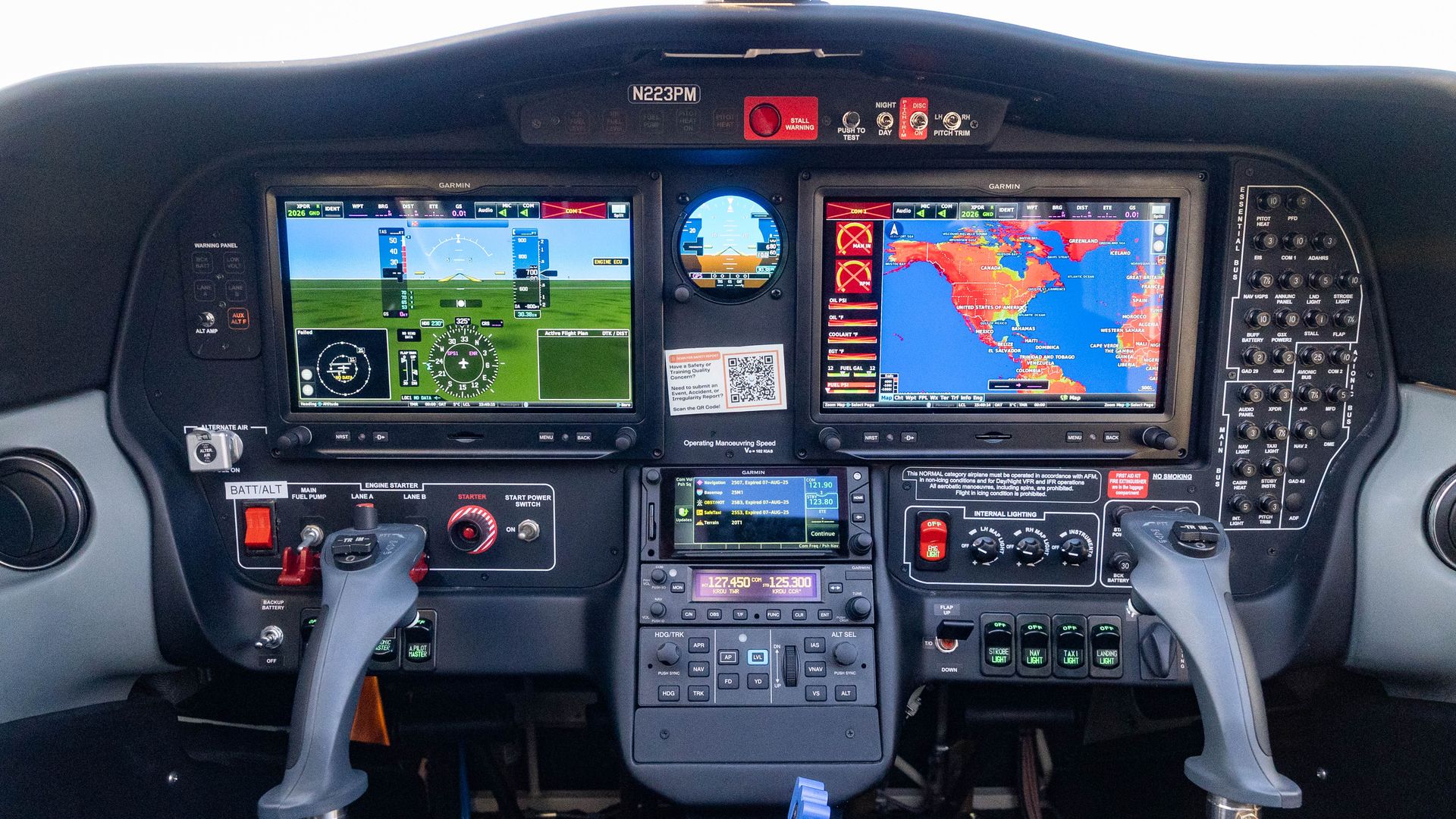

Avionics
Standard GARMIN Avionics Package
- DUAL DISPLAY GDU 460 SYSTEM WITH EIS
- PFD/MFD GDU 460 Display
- MFD/EIS GDU 460 Display
- GSU 25D ADAHRS #1
- GEA 24 EIS
- GMU 11 Magnetometer
- OAT Probe GTP 59
- GMA 245R Remote Audio Panel
- GNC 255A COM/NAV
- GTX 345R Transponder ADS-B IN/OUT
- GAE 12 Encoder for Transponder
- ELT 406 Mhz KANNAD
- Speakers
- Microphone
- Stick Push-To-Talk Switch-Pilot/Copilot

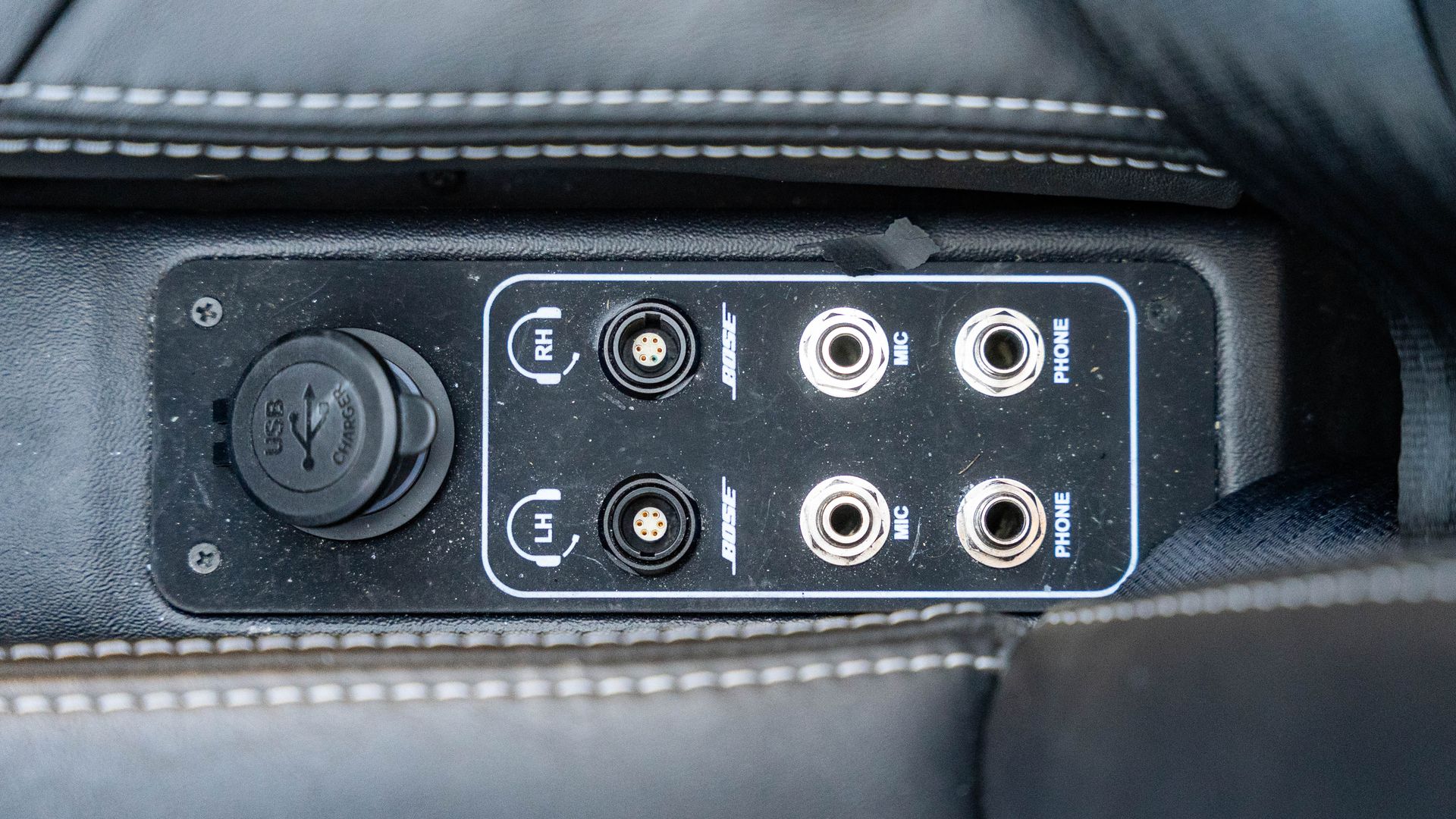

- Mic & Phone Jacks-Pilot/Copilot
- Bose Lemo Connector Pilot/Copilot
- Bose Lemo Connector Pilot/Copilot
- Antennas:
- XPDR
- COM 1 CI-121
- NAV (VOR/LOC/GS) CI-158C
- Marker Beacon CI-102
- GPS GA-35
- GPS GA-56
- ELT
- Dual Display G3X GDU 460 with EIS

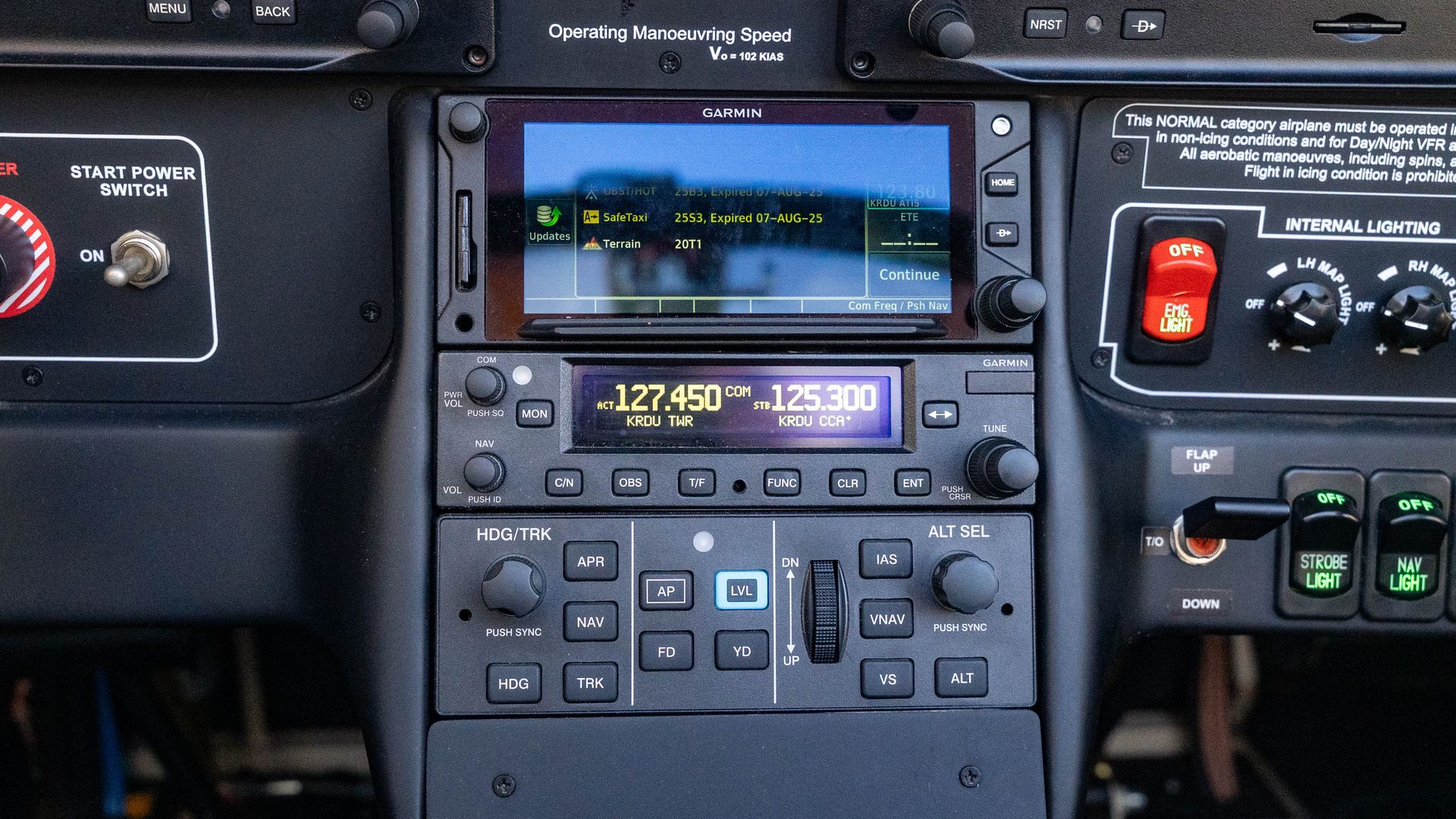

- GFC500 Autopilot
- GTN650
- GI275 Standby Attitude Indicator
- GMA245R Remote Audio Panel
- GNC255 Nav/Comm
- GTX 345R Transponder ADS-B IN/OUT
- GEA 12 Encoder for Transponder
- ELT 406 MHz
Props
Propeller
- Propeller - MT 2 Blade V.P. Hydraulic with Governor
- Propeller Spinner
Engines
Engine / Propulsion
1 ROTAX 912 iSC3 100 HP, 4 Cylinders
- Liquid/air cooled, integrated reduction gear
- Redundant Electronic Fuel Injection
- Engine Management System EMS
- Central Throttle Lever
- Tubular Steel Engine Mount
- Air & Oil Filter
- Oil And Water Coolers
- Thermostat Valves Oil and Water
- Rotax 912 iSC3

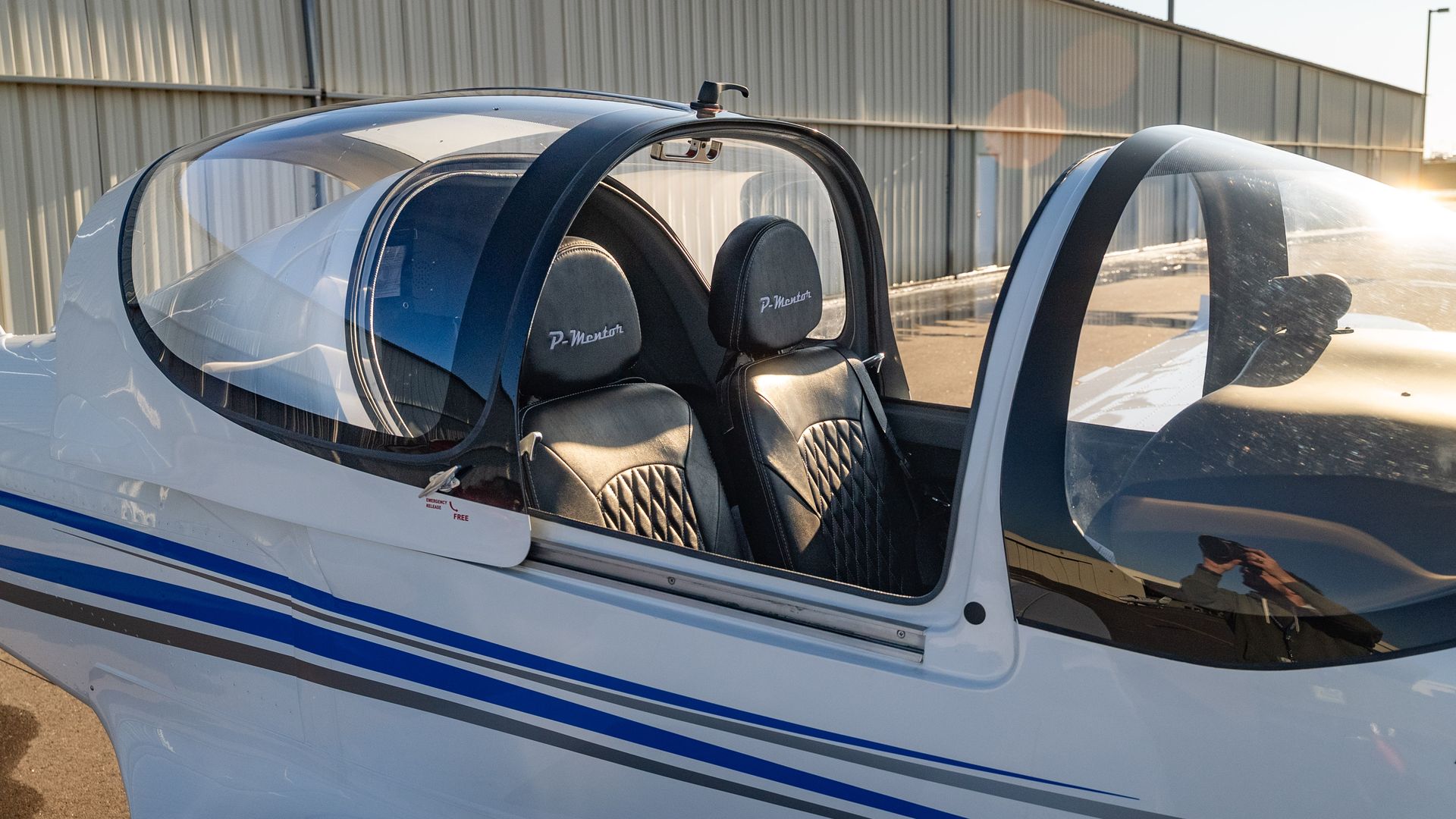

Interior
Interior
- Pilot And Copilot Seats - adjustable fore and aft
- Seat Belts & Shoulder Harness, all seats
- Wall To Wall Carpeting
- Luggage Compartment
- Fire Extinguisher
- Radio Call Plate
- Soundproofing
- USB ports
- First Aid Kit
- Emergency Hammer
Cabin comfort system
- Windshield Defroster
- Ventilator Adjustable, 2 Place
- Heating System
Exterior
Exterior
- Epoxy Corrosion Proofing, all structure
- Sliding Canopy with Lock And Key
- Rear Window
- Tie Down Rings
- Main Wheels, 5,00 X 5 Cleveland/Beringer
- Nose Wheel, 5,00 X 5
- Wheel Pants
Exterior Lights

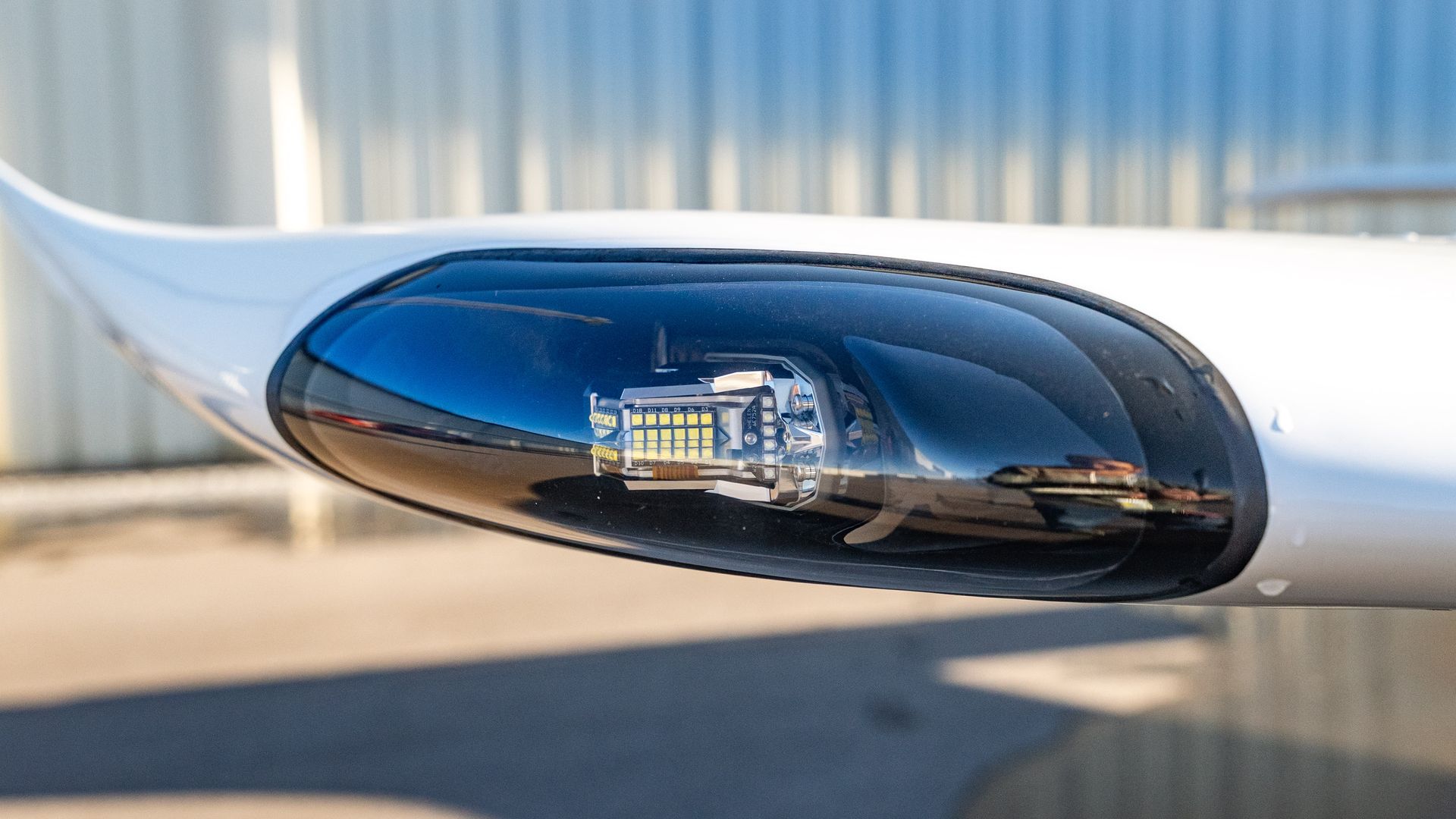

- Nav. Lights LED with strobe Full LED TSO Fully integrated in the wing tip
- Landing Light LED
- Cabin comfort system
- Windshield Defroster
- Ventilator Adjustable, 2 Place
- Heating System
Additional Equipment
Product Support/Documents
- Manufacturer Full Two Year Limited Warranty
- Pilots Operation Handbook
- Maintenance Manual
- Parts Catalog
- Aircraft Log Book
- Engine Log Book
REV 13/01/2025
- Coolant Operated Cabin Heating System
Installed Options
| Option | Description | Price |
|---|---|---|
| ME.A-AP |
Autopilot, Includes Autopilot mode controller |
$ 14,020.00 |
| ME.A.AT1 |
AT-1 Air Traffic Anti-Collision |
$ 4,010.00 |
| ME.A-G5A |
GARMIN GNC 255A, COM/NAV 8.33 Khz with Antennas and Inst. (Available only for A-MENTO.1) |
$ 8,900.00 |
| ME.O-HS |
Coolant Operating , Cabin Heating System, (Exchange Std. Heating System) |
$ 2,590.00 |
| Total Options: | $29,520.00 | |
