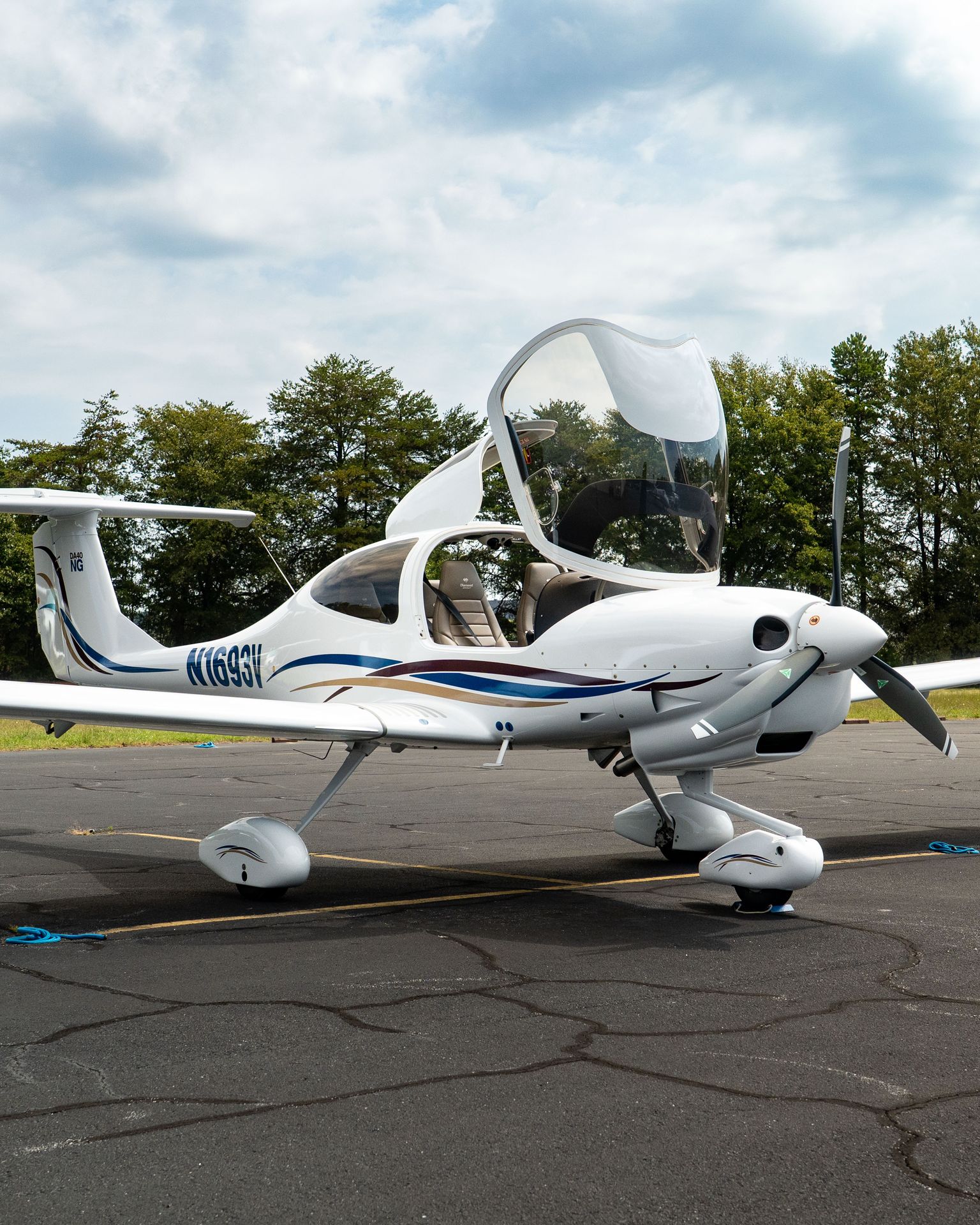

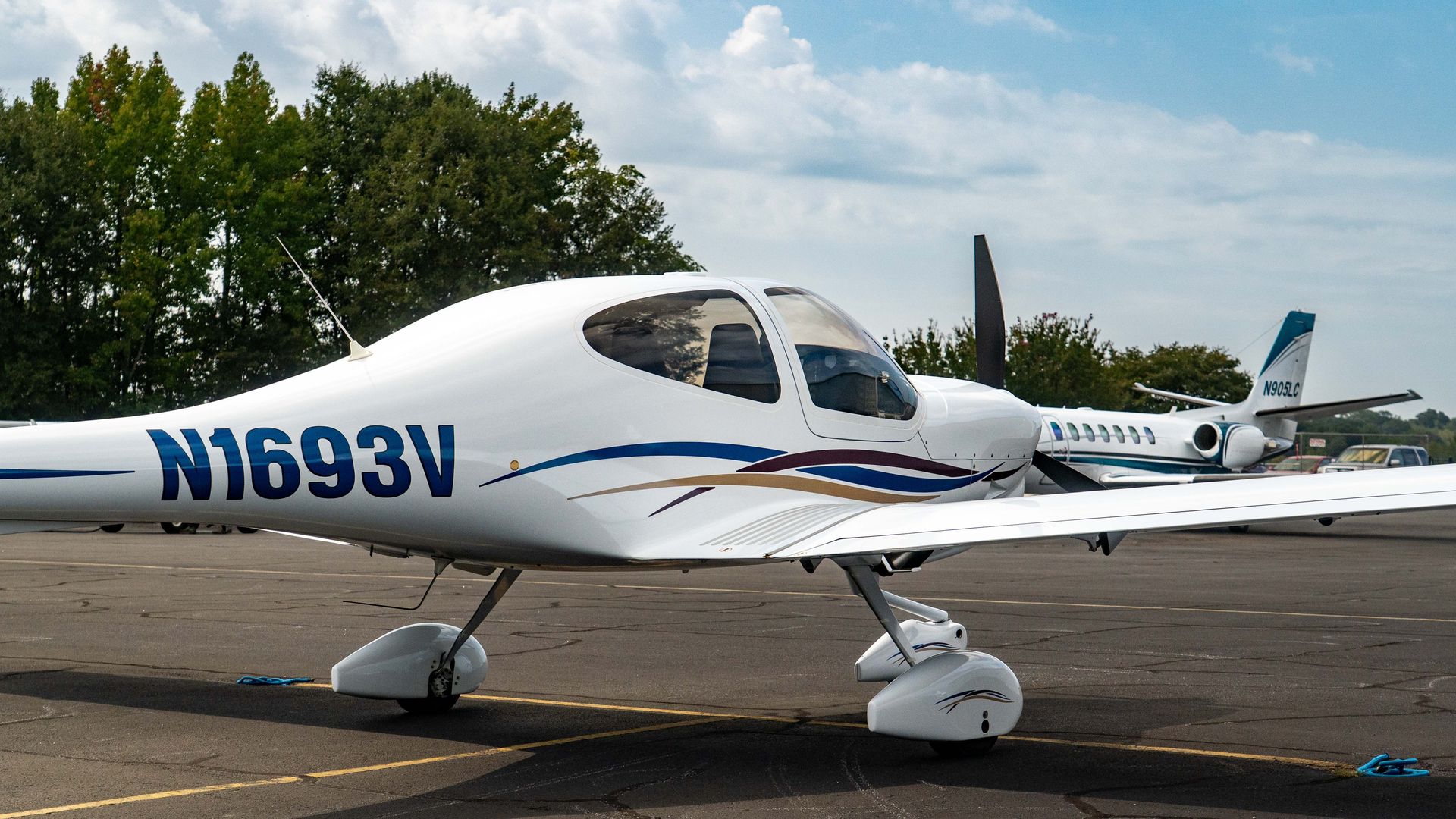

2020 Diamond DA40 NG
Get pre-approved

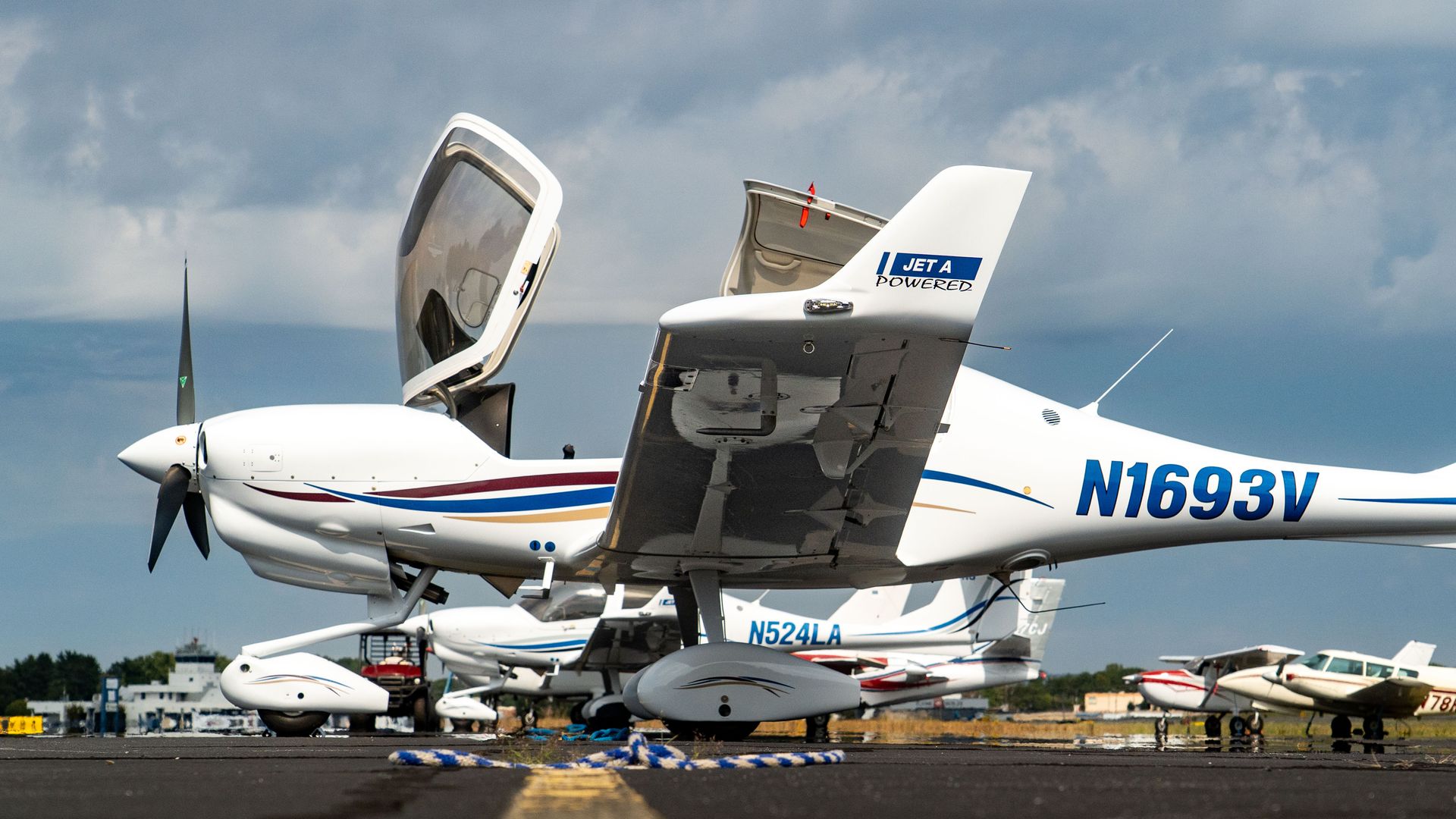

Immaculate 2020 DA40 NG with only 165 hours. G1000 NXi, GFC700 autopilot, GTX345R ADS-B In/Out, synthetic vision, air conditioning, and electric rudder pedals. One-owner aircraft, always hangared with full logs and exceptional care. Perfect for owners upgrading from training aircraft, private pilots seeking efficiency, or flight schools wanting a modern diesel platform.
expired
Key Features
Basic Information
Aircraft Information
| Manufacturer | Diamond |
| Model | DA40 NG |
| Year | 2020 |
| Registration | N1693V |

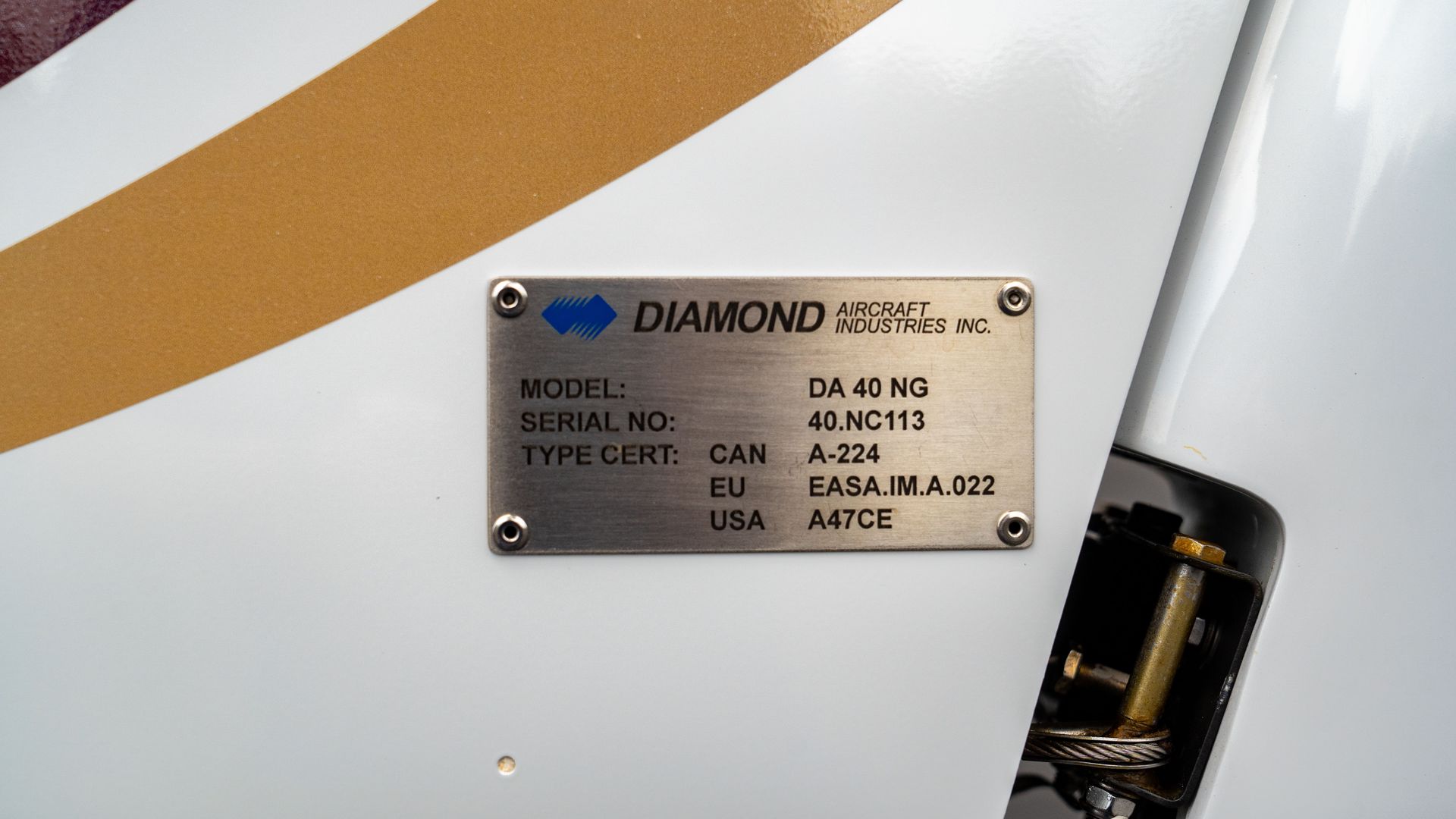

| Serial Number | 40.NC113 |
Maintenance Status
| Total Time | 165.0 Hours |
| Last Annual | 2025-04-15 |
| Warranty Status | expired |
Technical Specifications
| Fuel Type | jet-a |
| Seats | 4 |
| Location | KGMU |
| Useful Load | -- |
Technical Details & Equipment
Overview

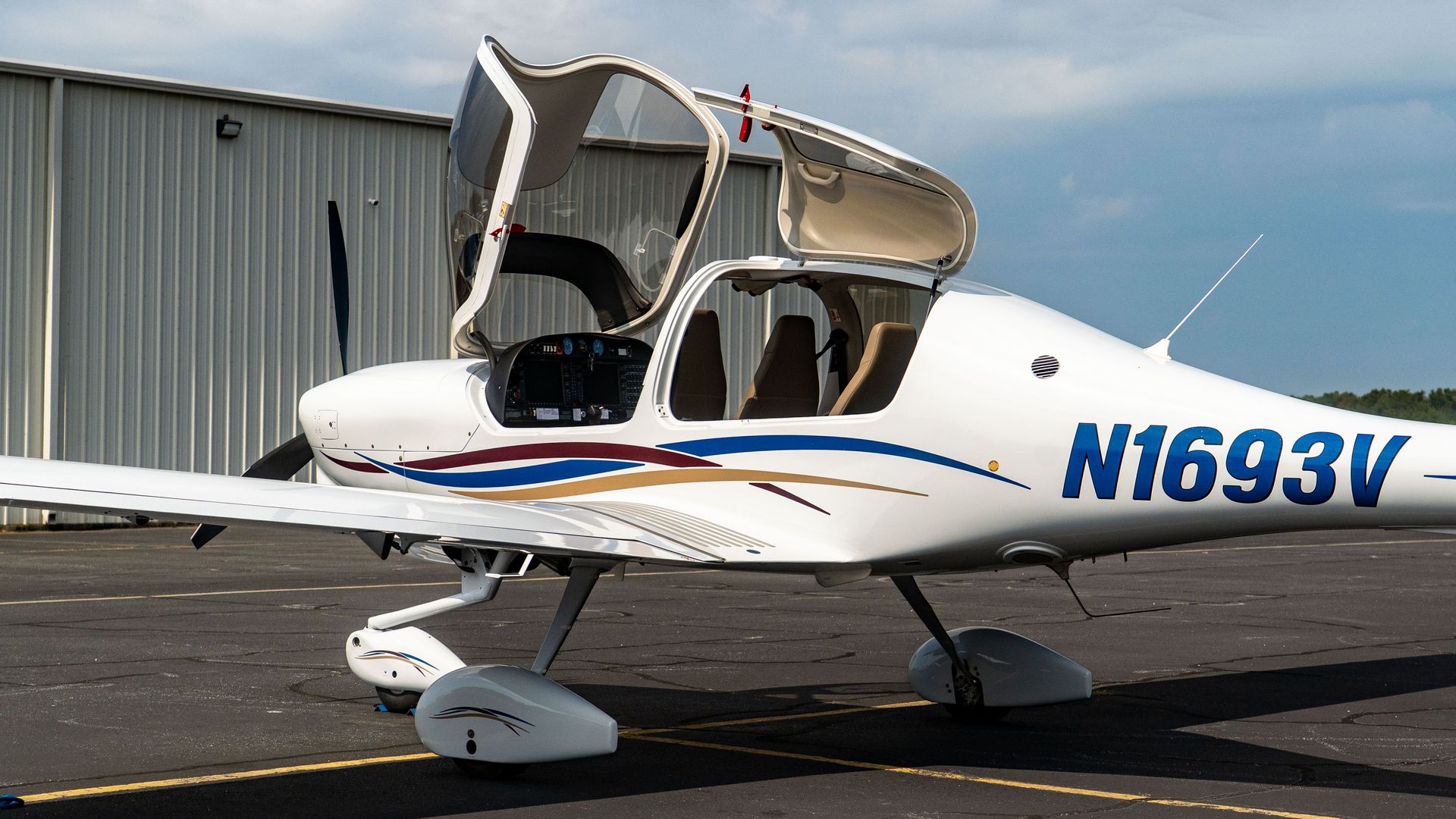

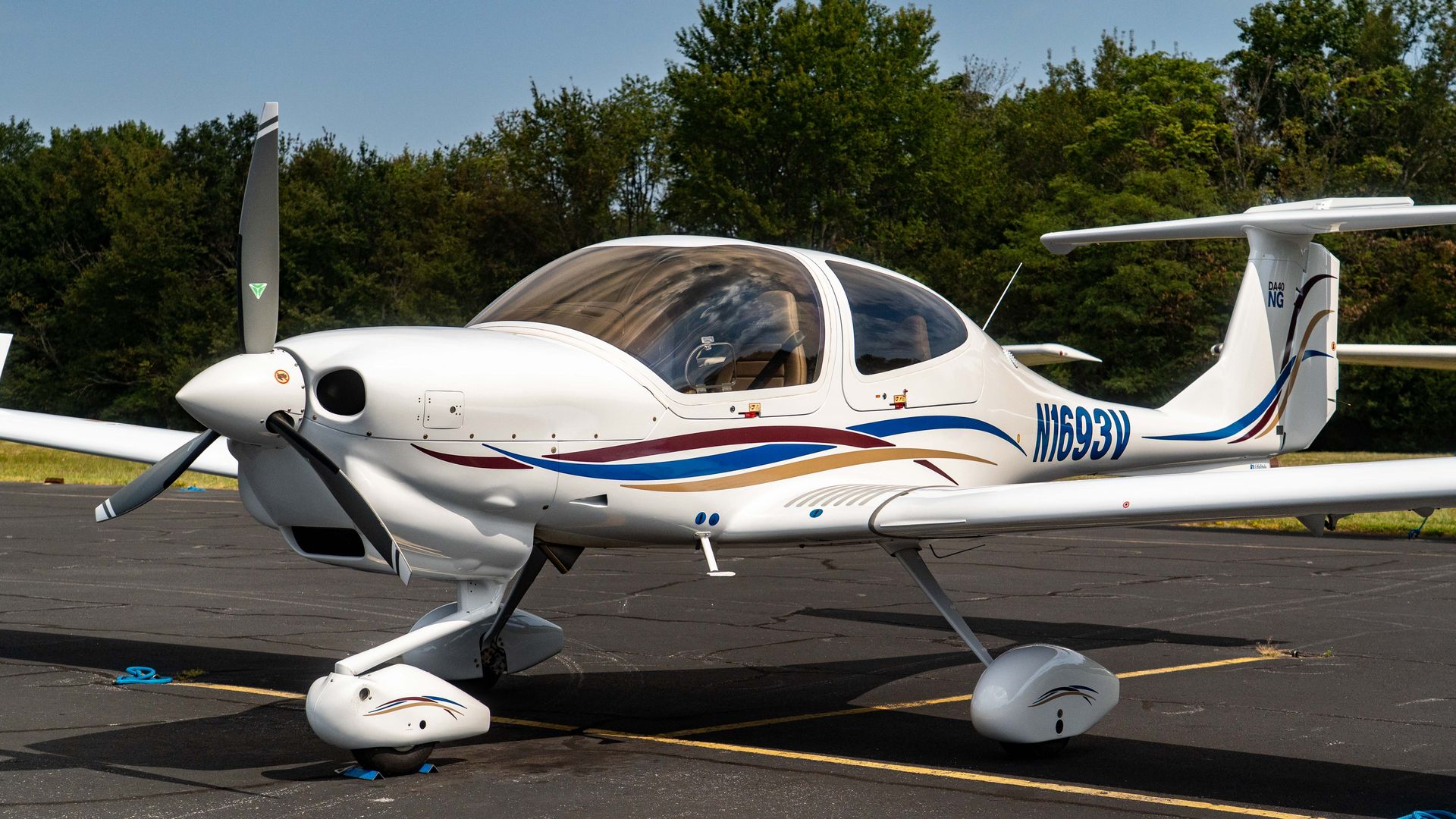

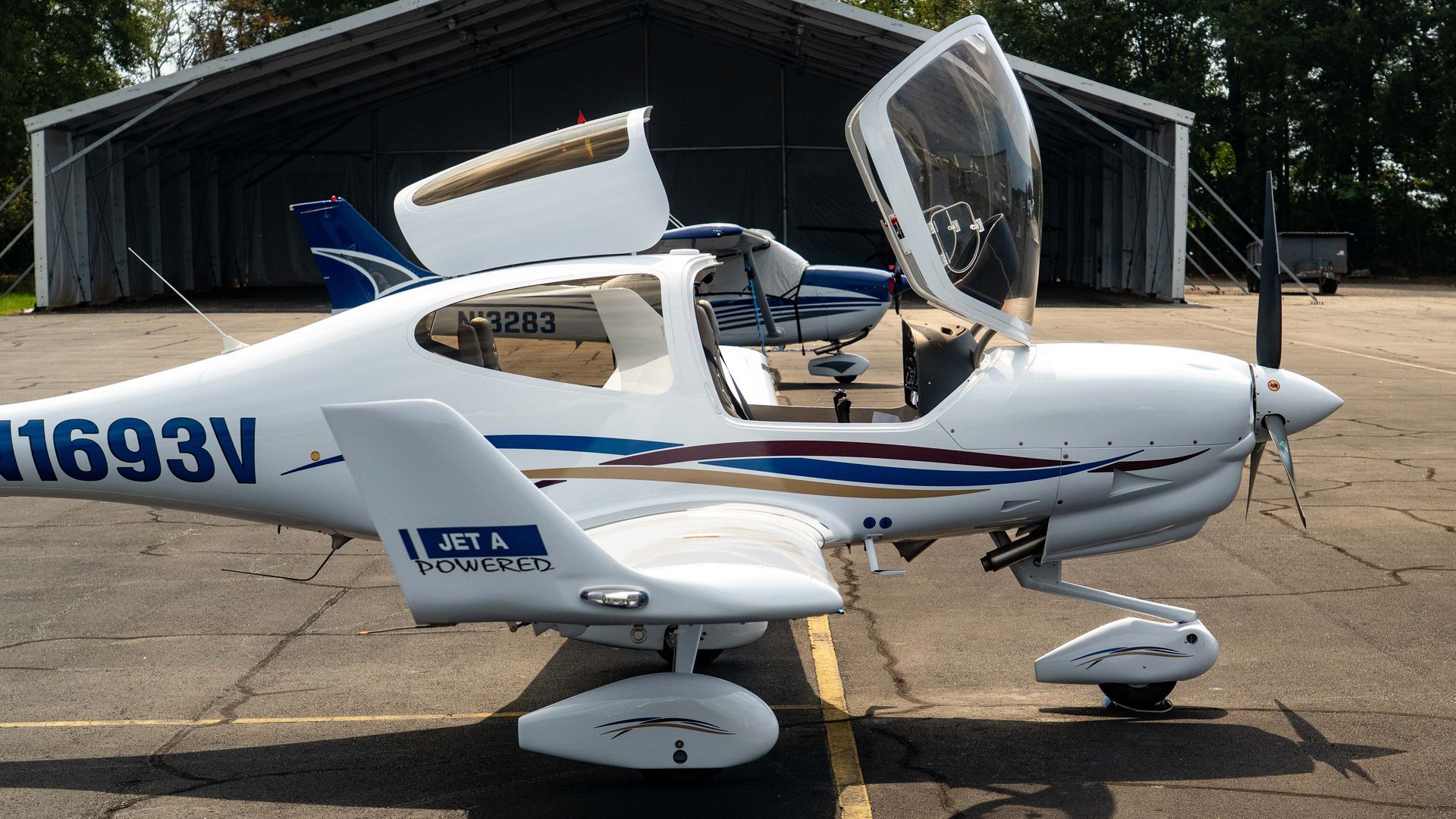

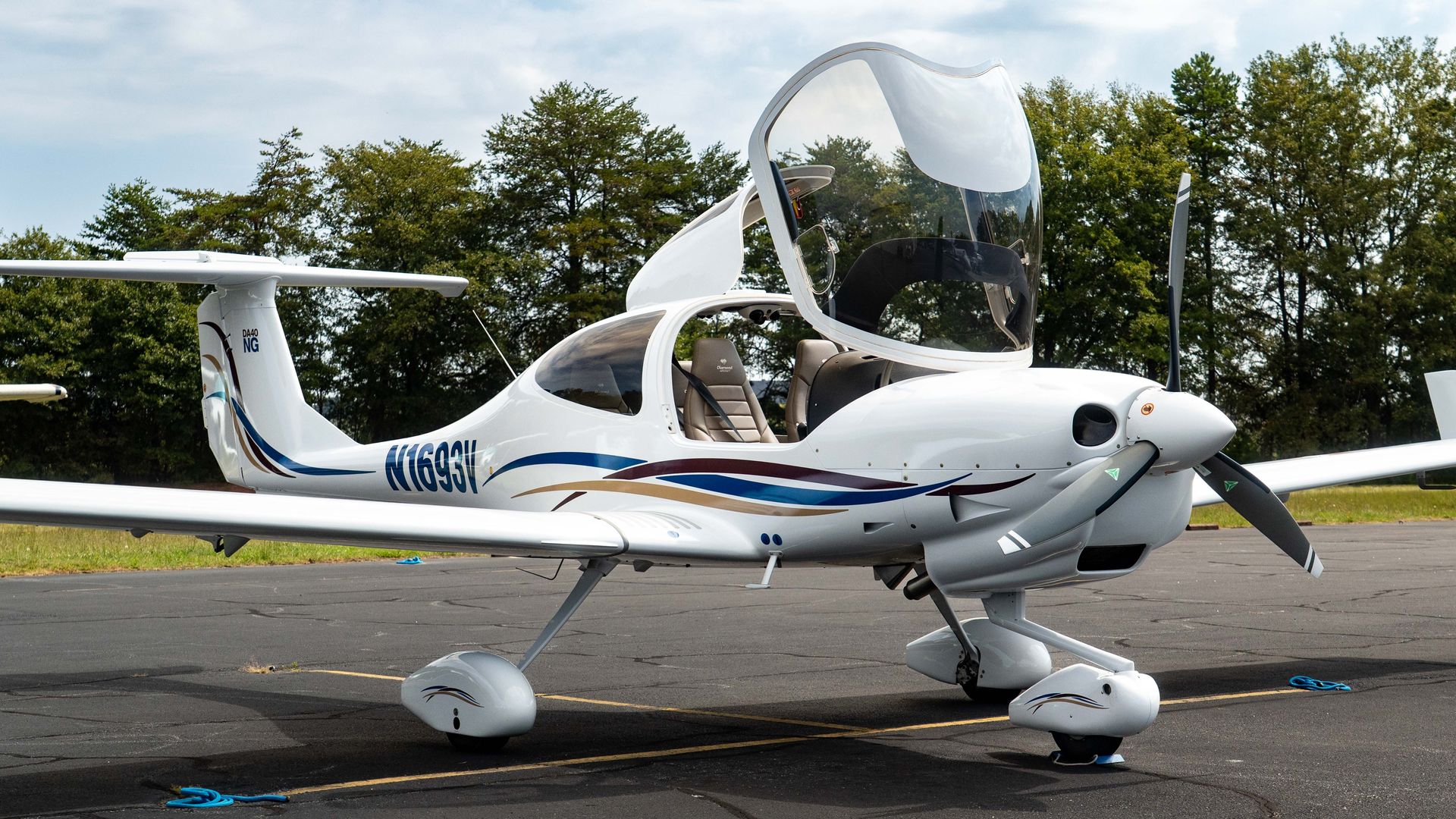

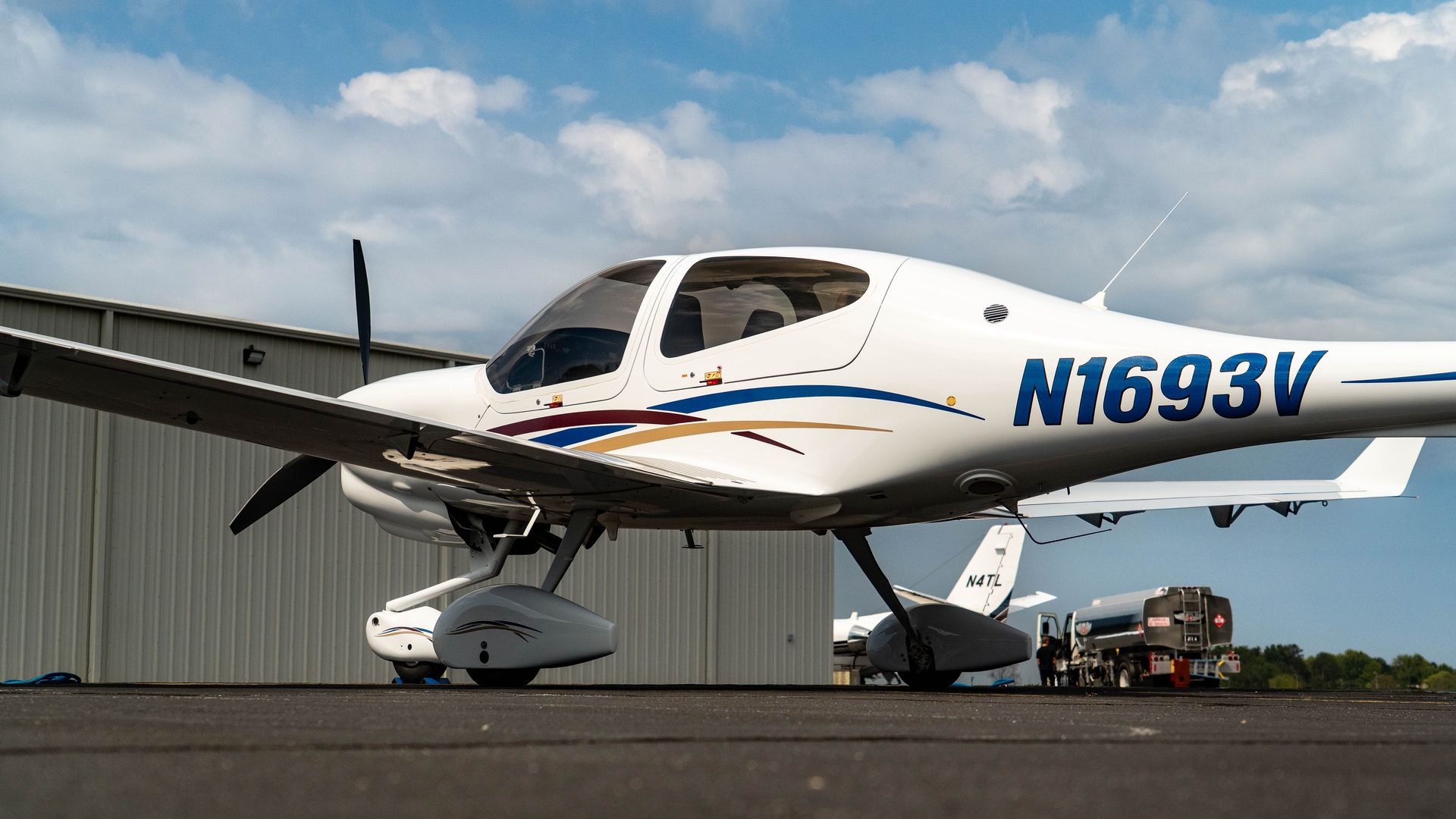

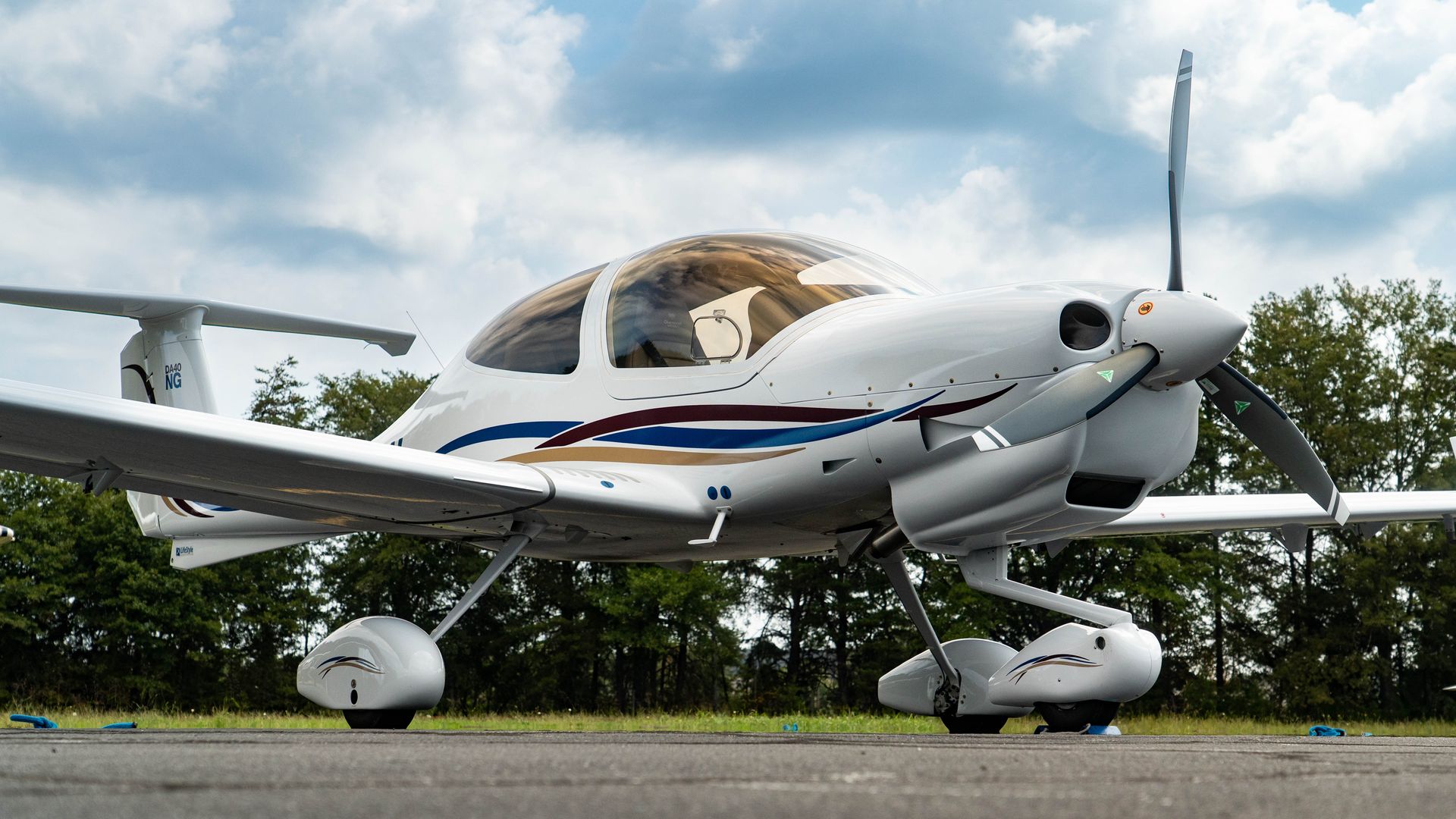

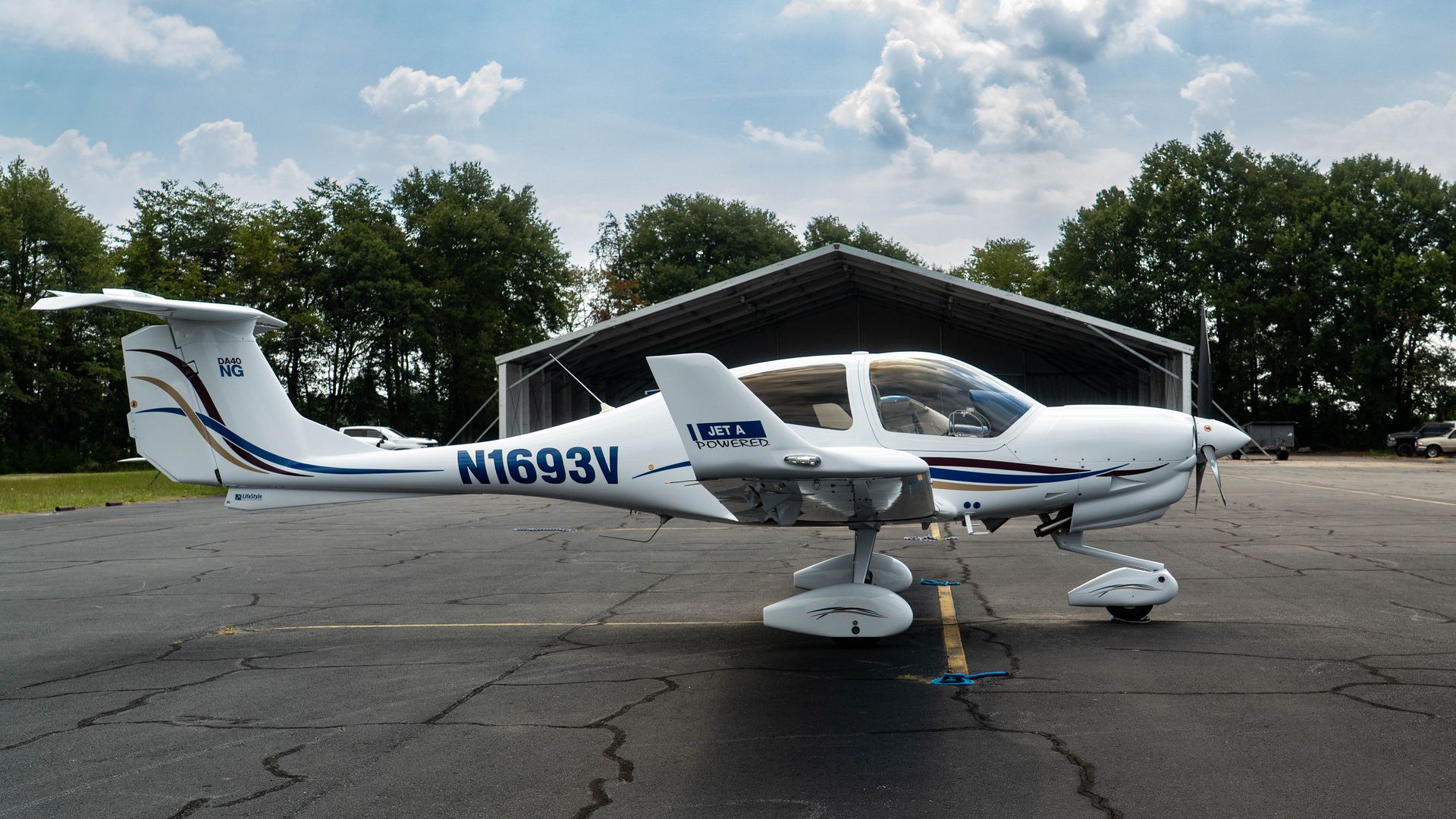

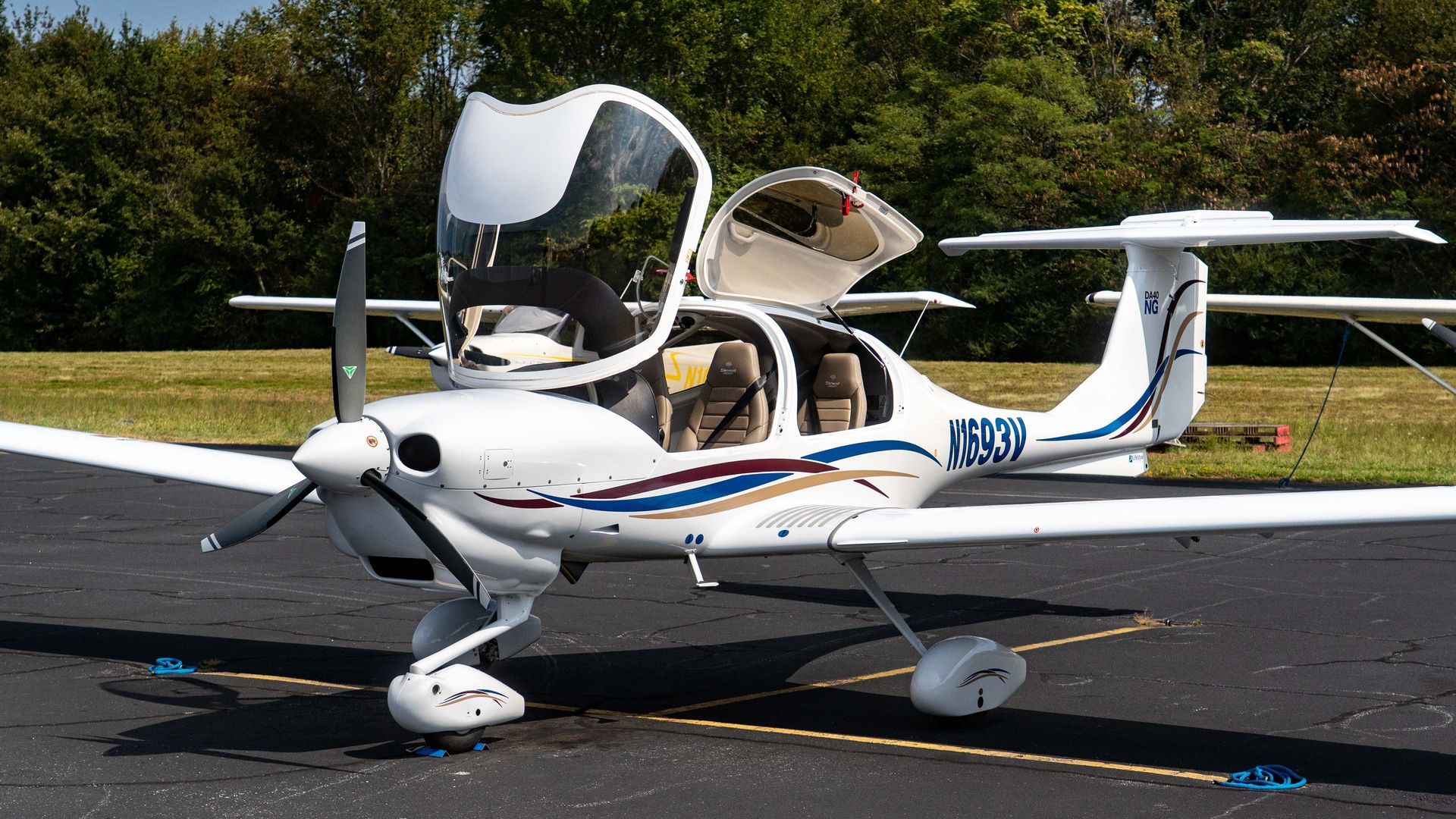

This 2020 Diamond DA40 NG, serial number 40.NC113 and registration N1693V, represents an outstanding opportunity to own one of the most efficient and capable modern four-place aircraft on the market. Delivered new in November 2020, it has been flown only 165 hours by a single owner and always kept hangared, ensuring like-new condition.
The avionics suite features the Garmin G1000 NXi integrated flight deck, GFC700 autopilot, GTX345R transponder with ADS-B In/Out, and synthetic vision. For added comfort and convenience, the aircraft is equipped with air conditioning and electric rudder pedals. With such low total time, both the airframe and Austro engine remain exceptionally fresh.
Meticulous maintenance has been performed by Special Services Corporation in Greenville, SC, with full logs available for review. The next annual is not due until April 30, 2026, providing the next owner peace of mind and low immediate operating costs.
Who it’s for:
- Private pilots seeking a modern, economical, and diesel-powered traveling aircraft.
- Flight schools looking for a reliable, fuel-efficient platform to attract new students.
- Owners upgrading from older DA40s or other singles who want the latest avionics and comfort features.
This DA40 NG blends cutting-edge Garmin avionics, luxury options, and pristine pedigree, making it one of the most desirable examples available today.
Avionics
Standard Avionics

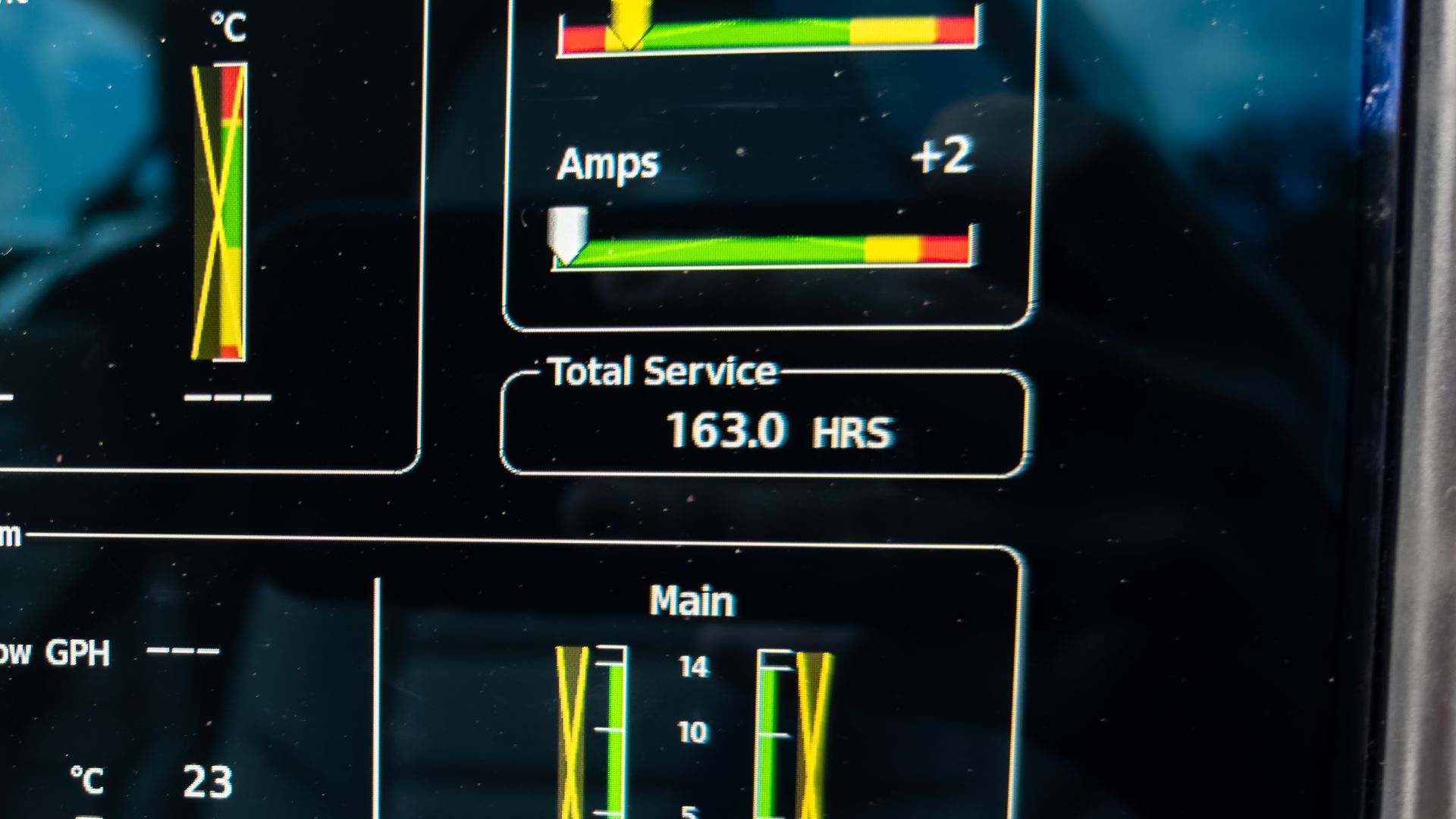

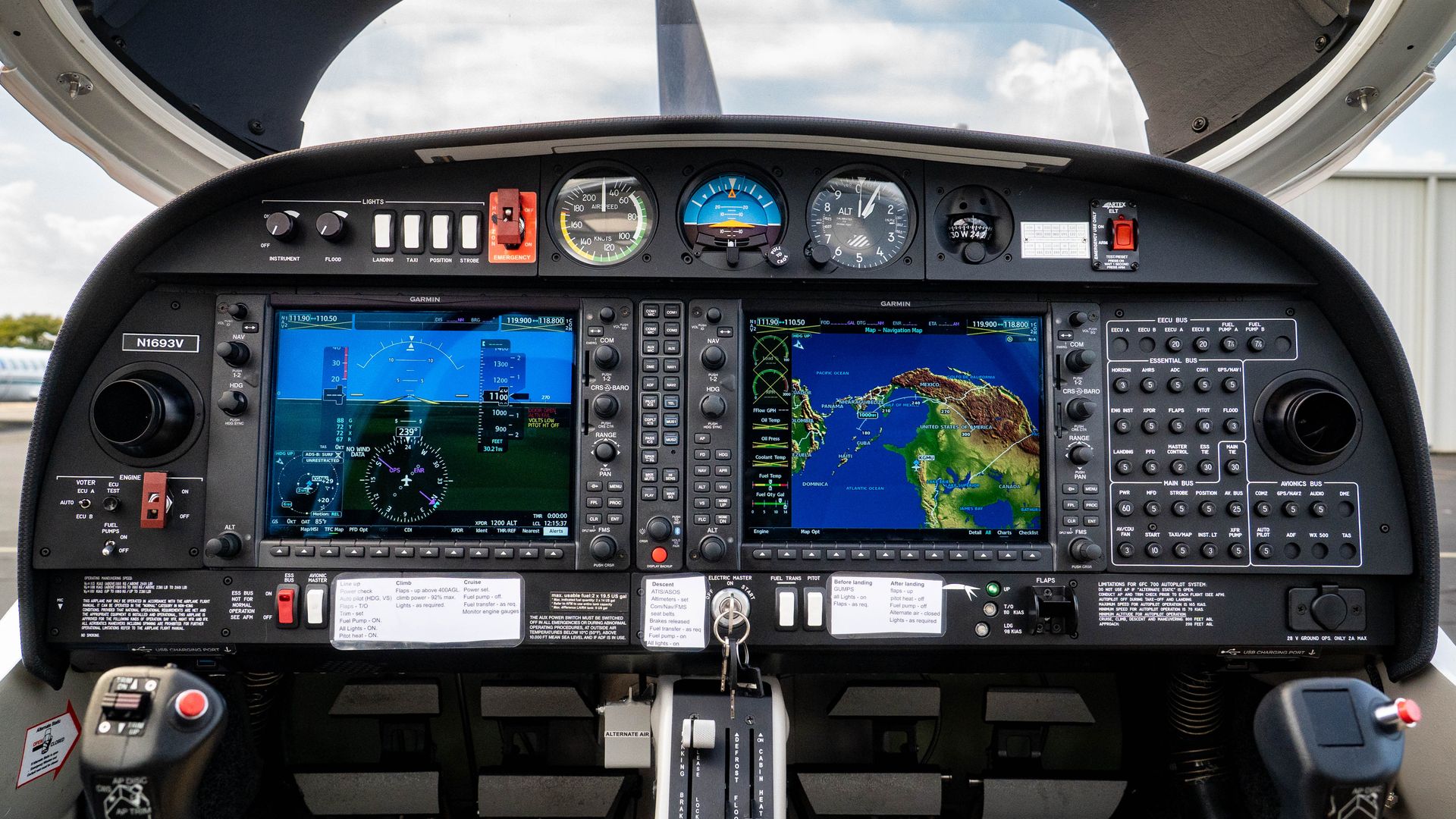

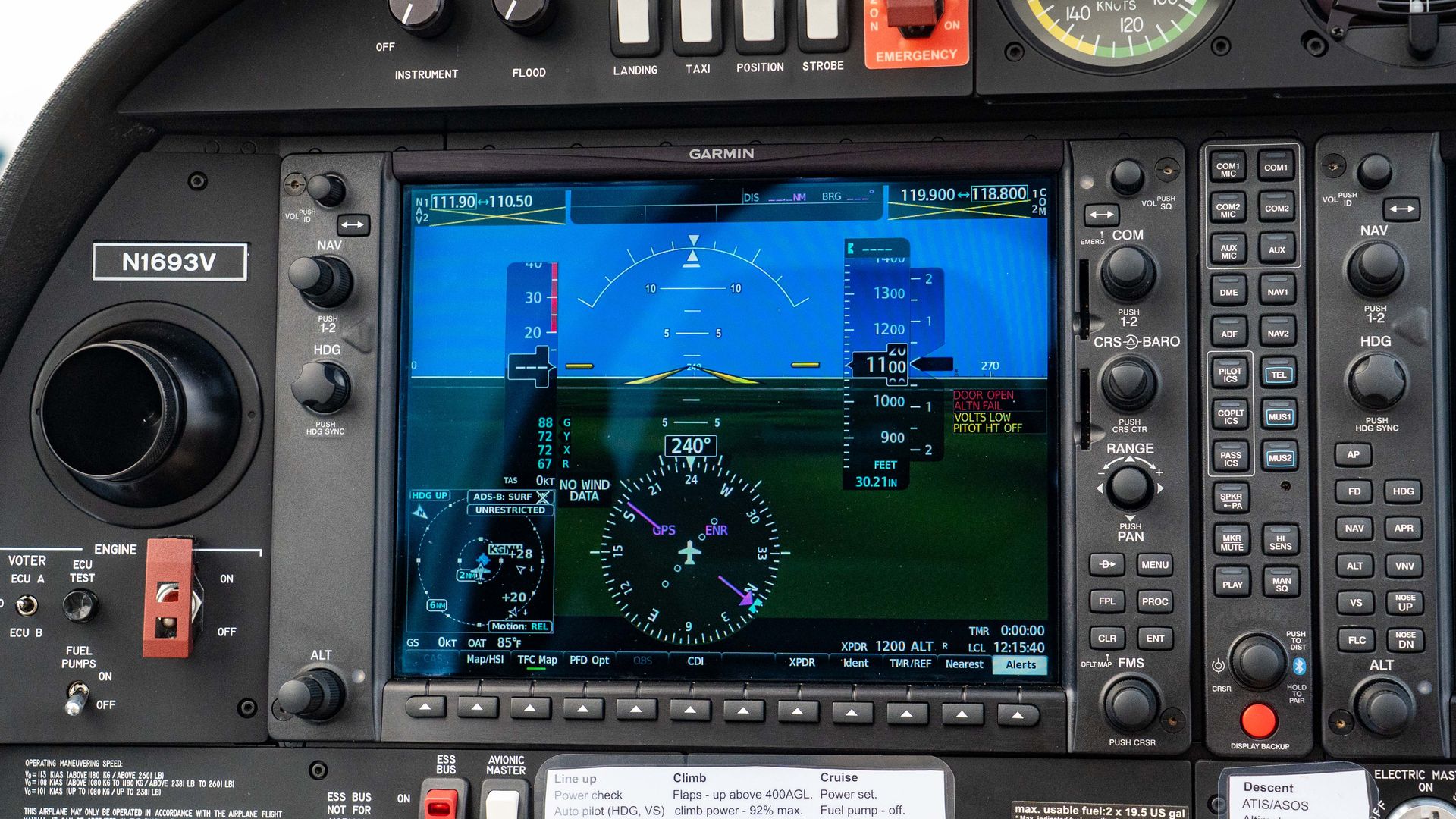

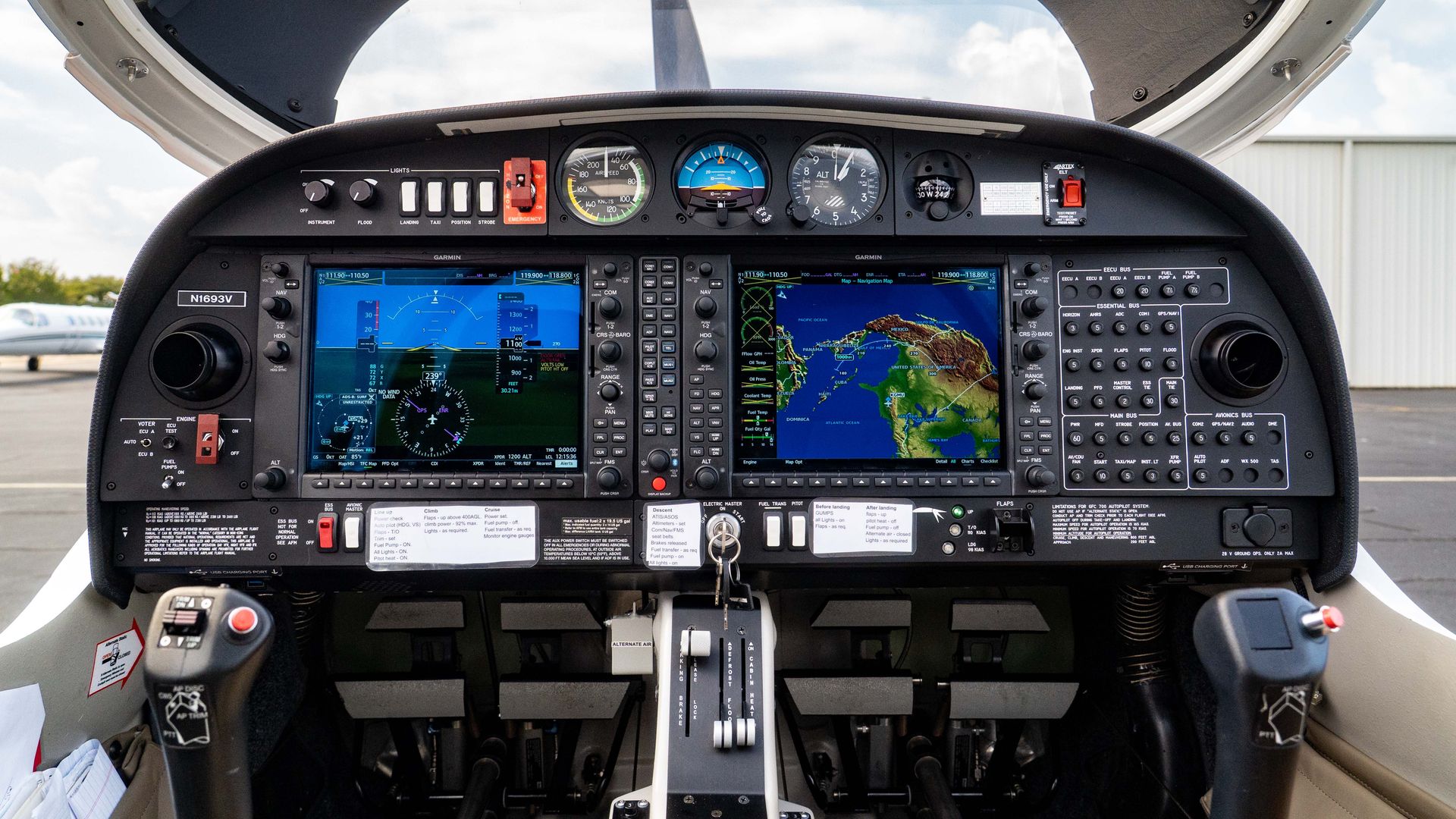

Integrated Garmin G1000 NXi Glass Panel Cockpit including:

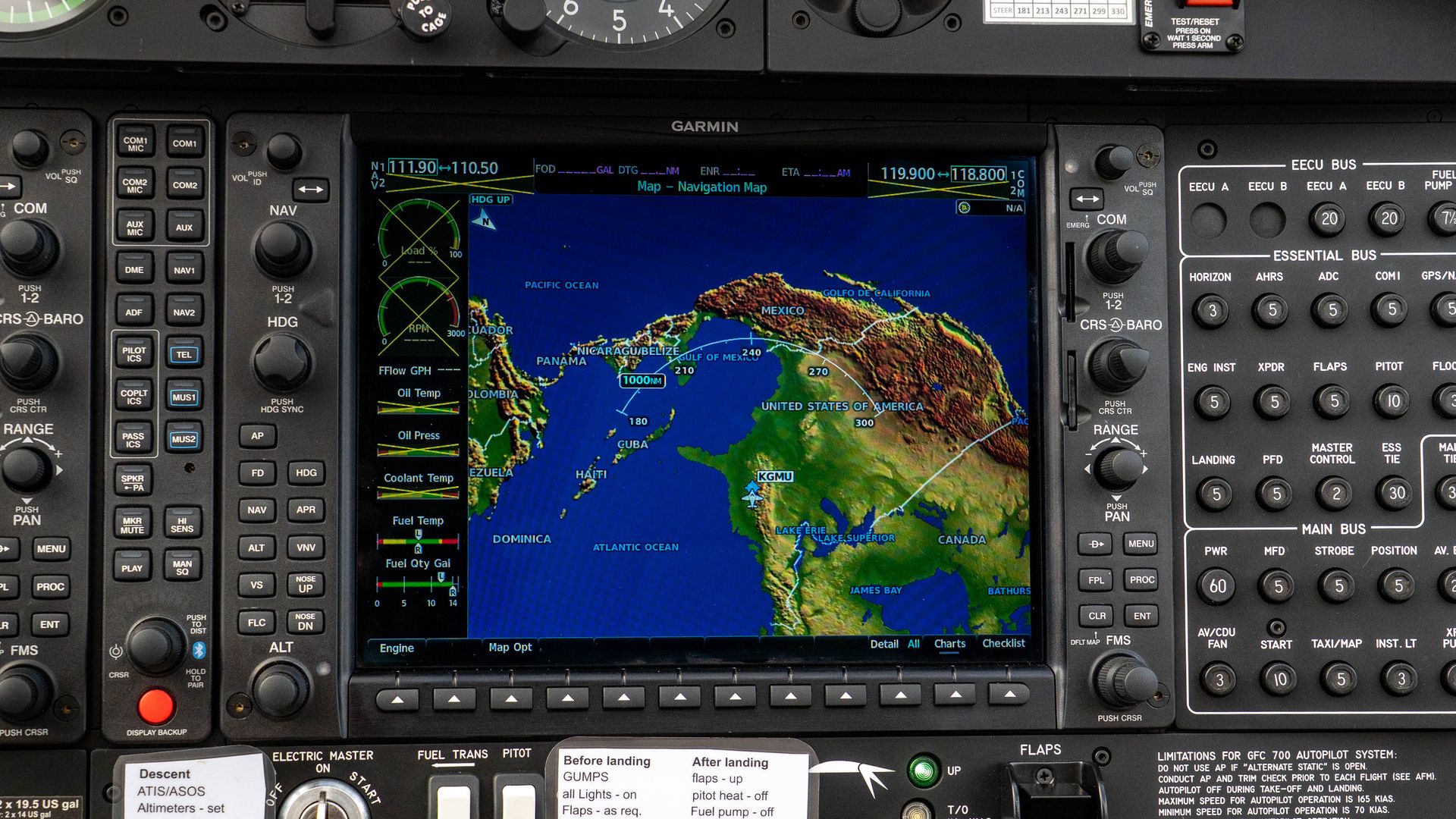

- 2x Garmin GDU 105x 10-Inch Flight Display (primary FD and multi-function FD)
- Garmin GEA 71 Airframe/Engine Interface Unit
- 2x Garmin GIA 63 W COM/NAV/SBAS-GPS/GS/LOC
- Garmin GMA 1347 Digital Audio System
- Garmin GRS 79 Attitude Heading Reference System
- Garmin GDC 72 Digital Air Data Computer
- Garmin GMU 44 Magnetometer
- Garmin GTX 335R Remote ADS-B Out Transponder
- Garmin FliteCharts Approach Plates (Subscription required)
- Garmin Flight Stream 510
- ELT 406 MHz

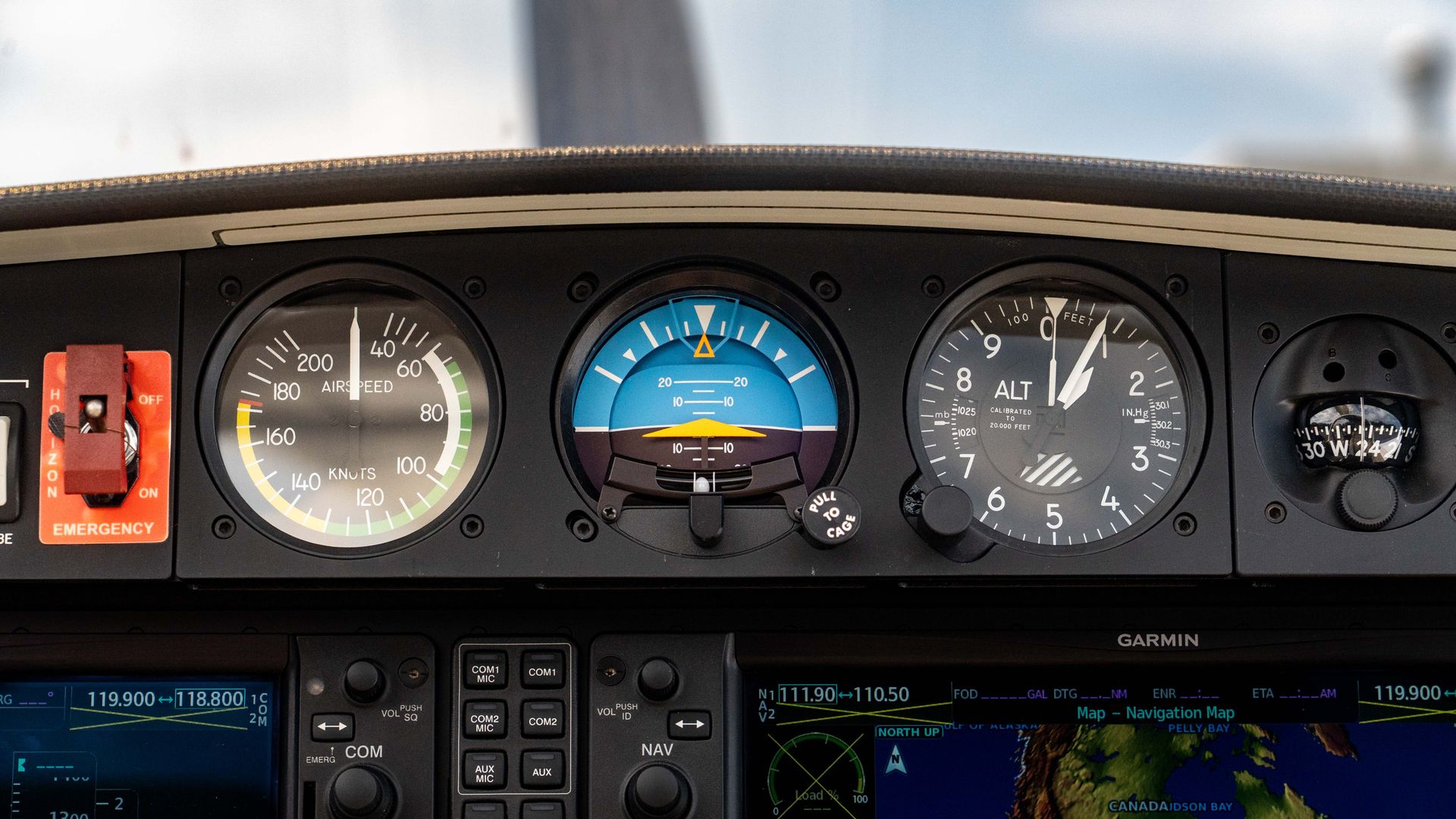

- Standby Instruments
- Compass
- Attitude Indicator
- Air Speed Indicator (kts)
- Altimeter (ft)
Props
Standard Propeller
- MT Propeller MTV-6-R/190-69 3-Blade Constant Speed Propeller
Engines
Installed Engines
| Location | Manufacturer | Model | Serial Number | TTSN | TSOH | TBO |
|---|---|---|---|---|---|---|
| Nose | Austro Engine | E4-A | E4-A-05034 | 165.0 hrs | 165.0 hrs | 1800 hrs |
Interior
Standard Interior Equipment

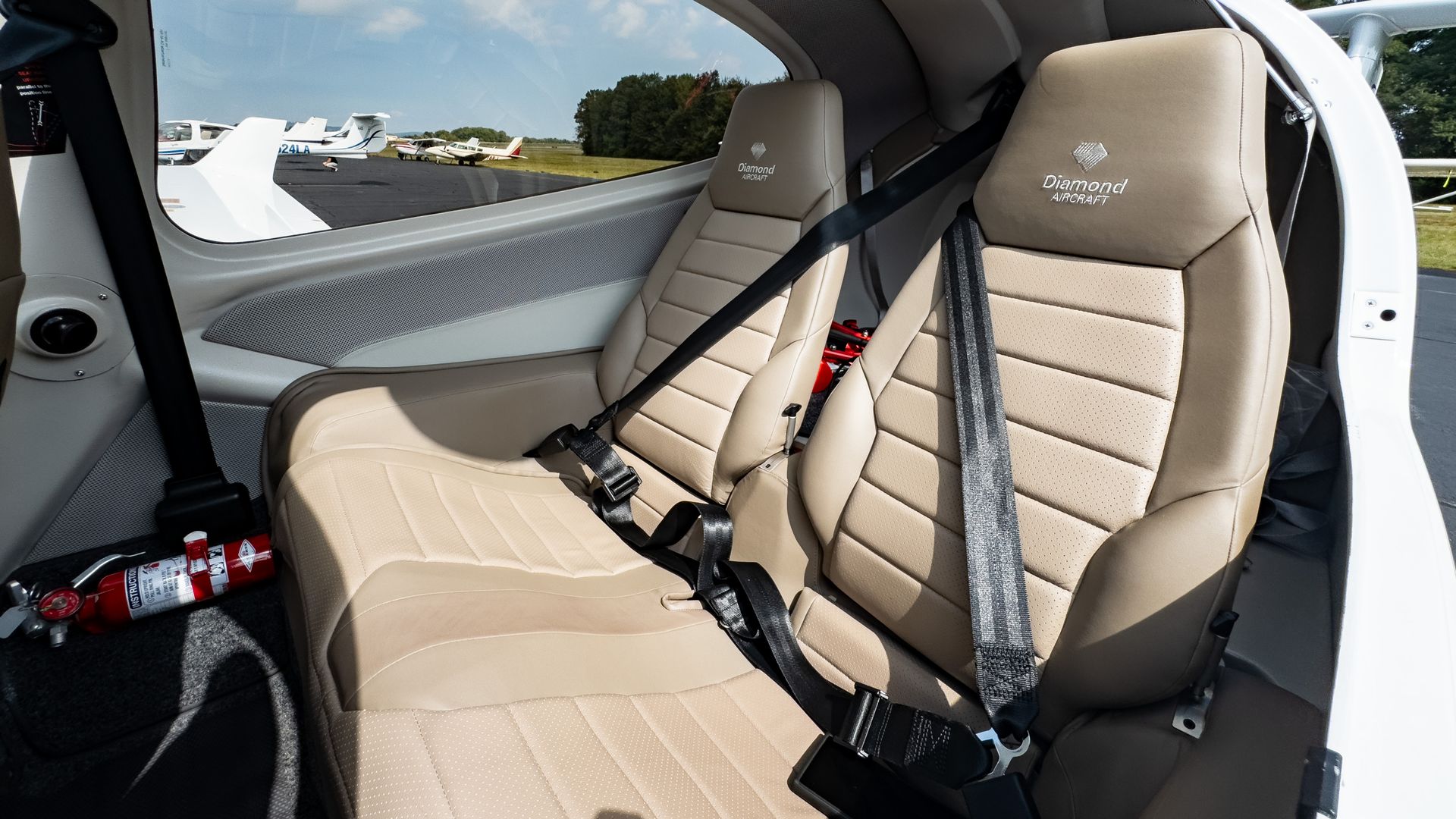

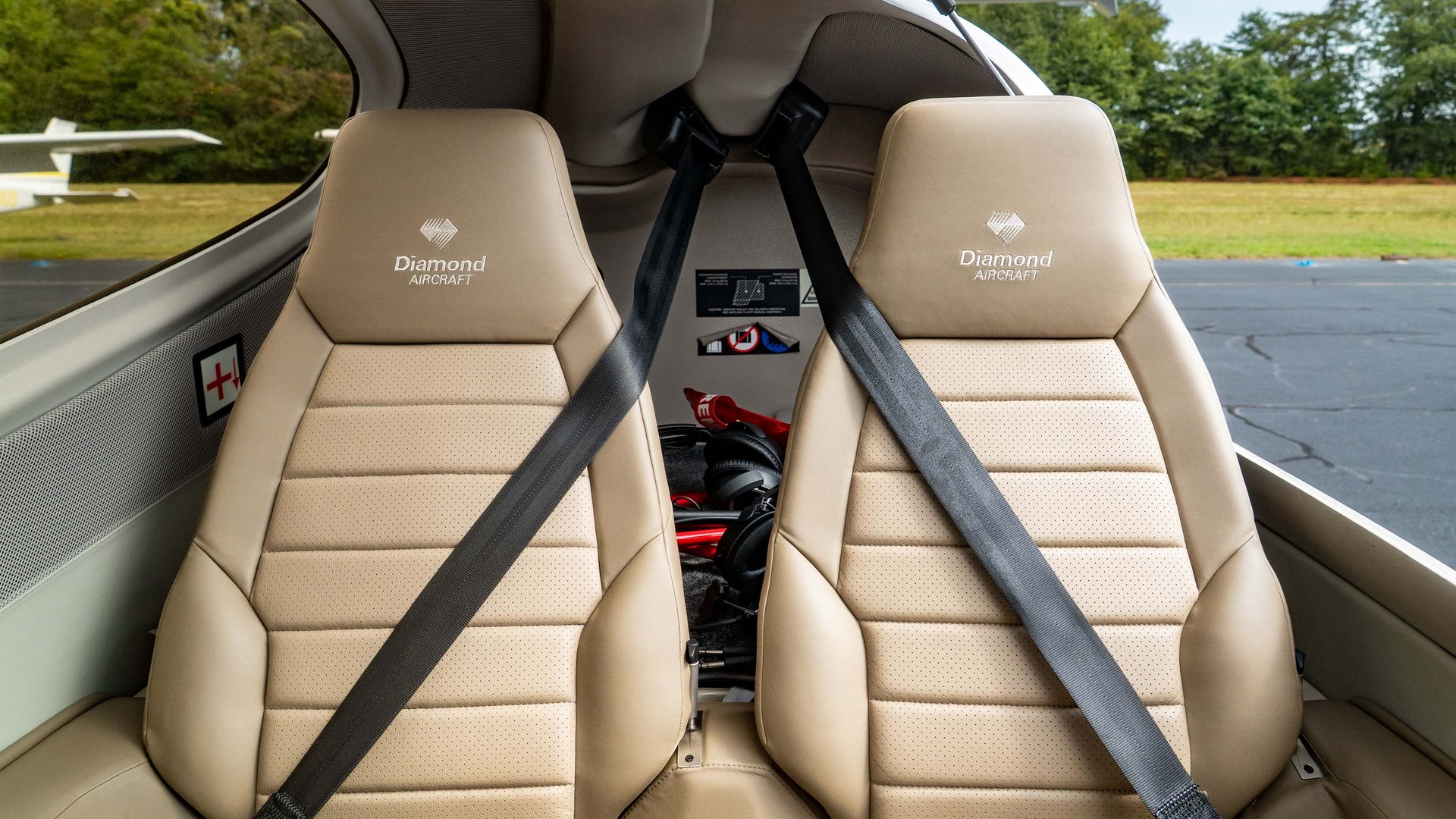

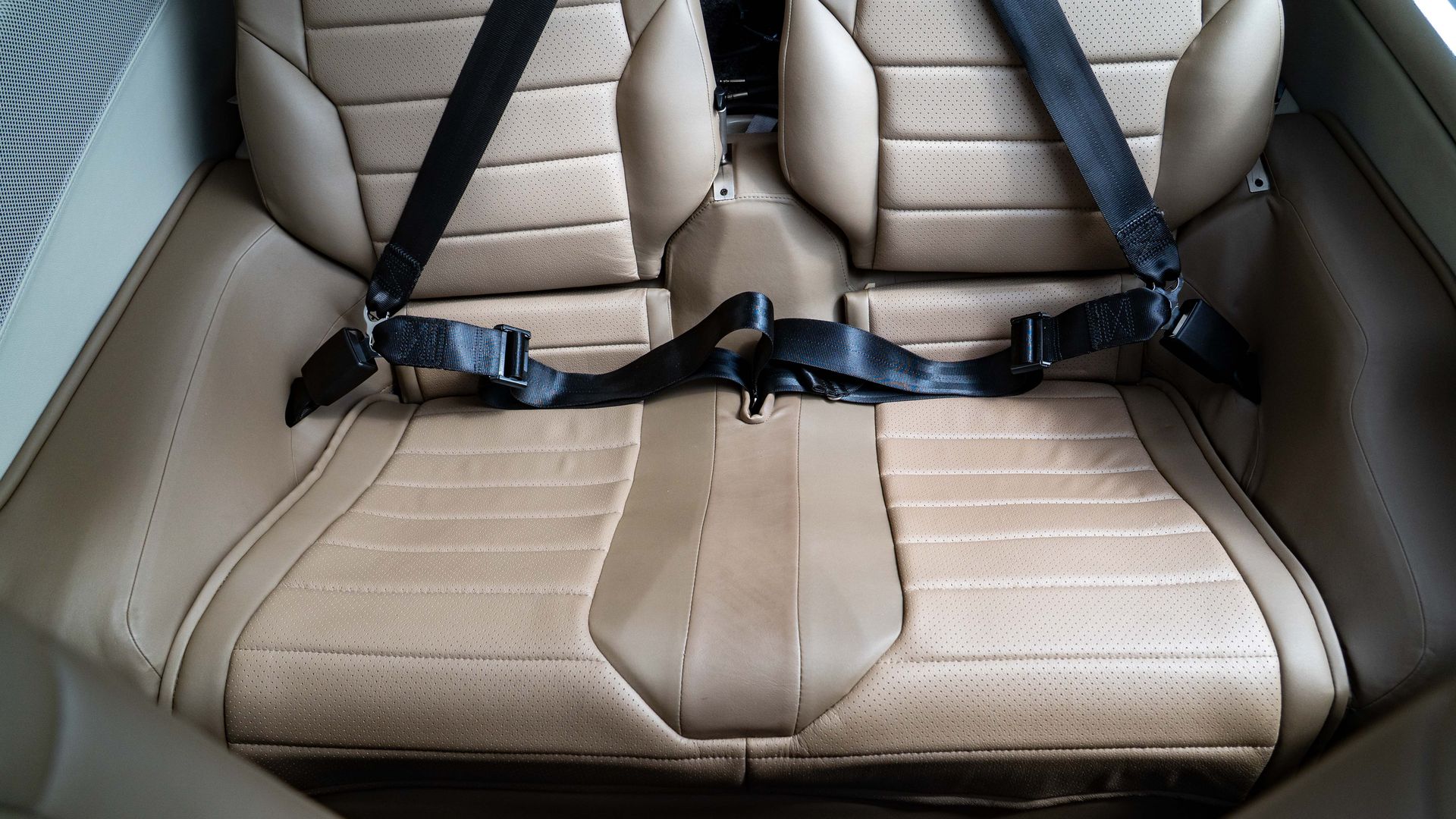

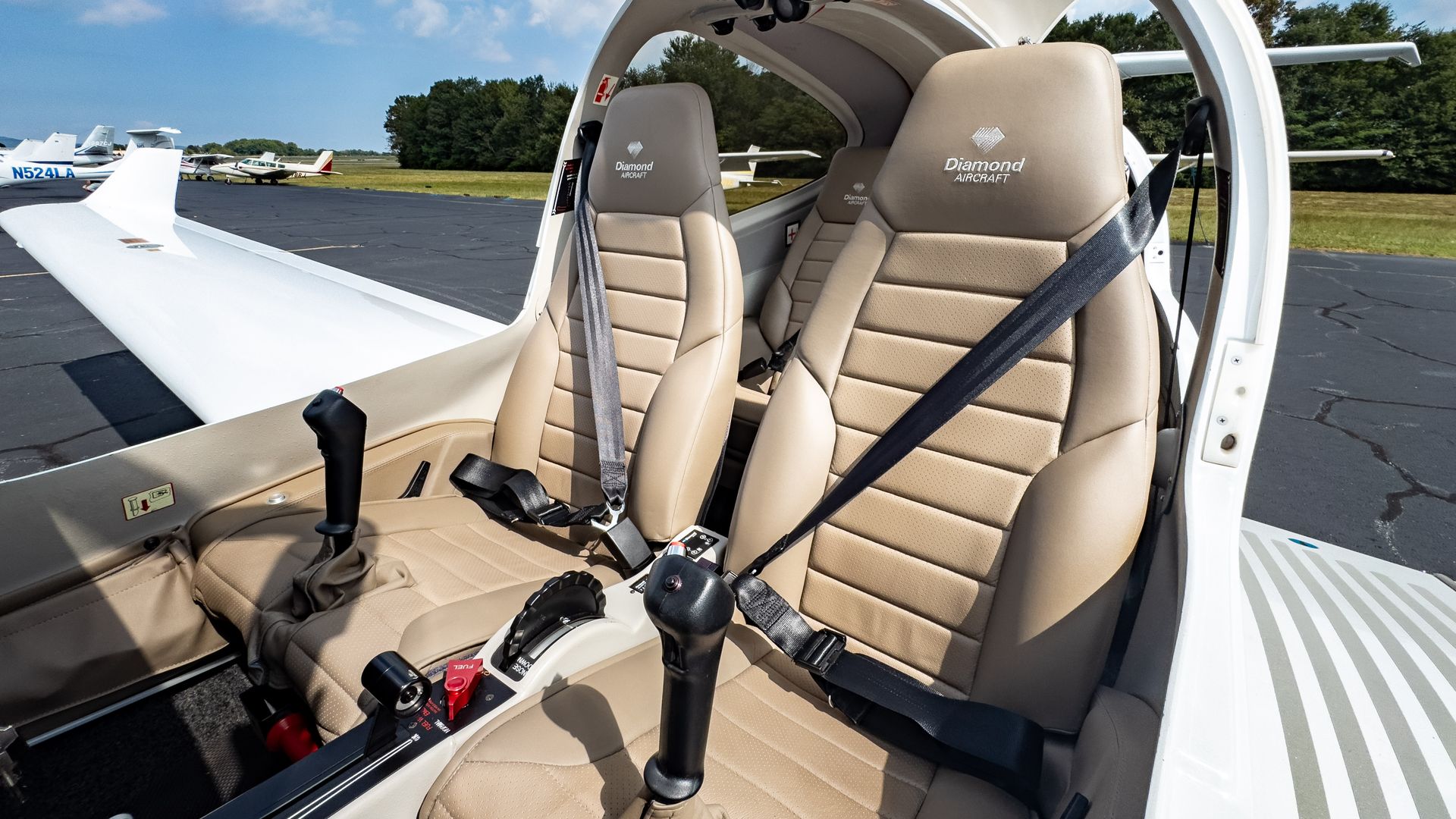

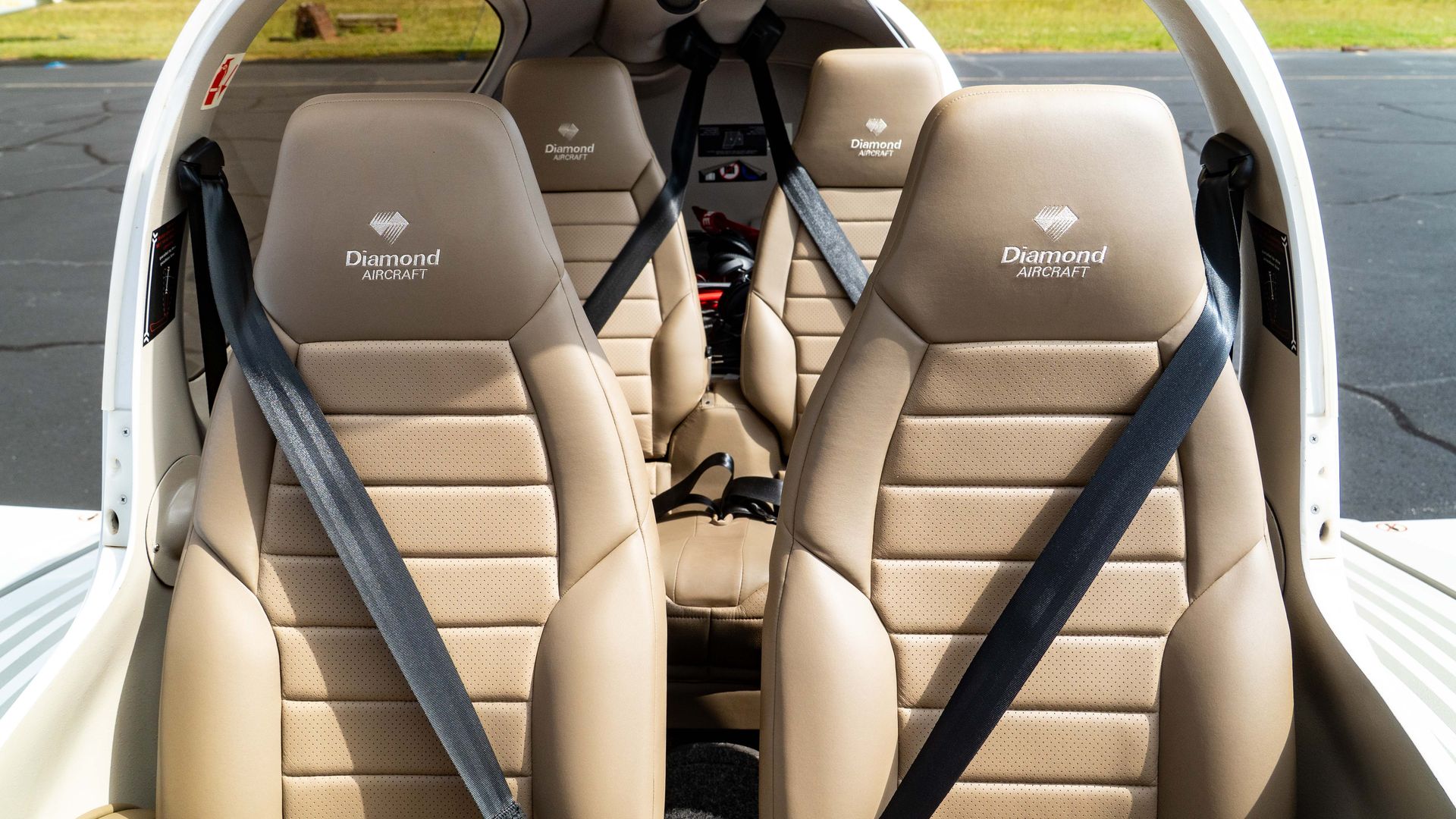

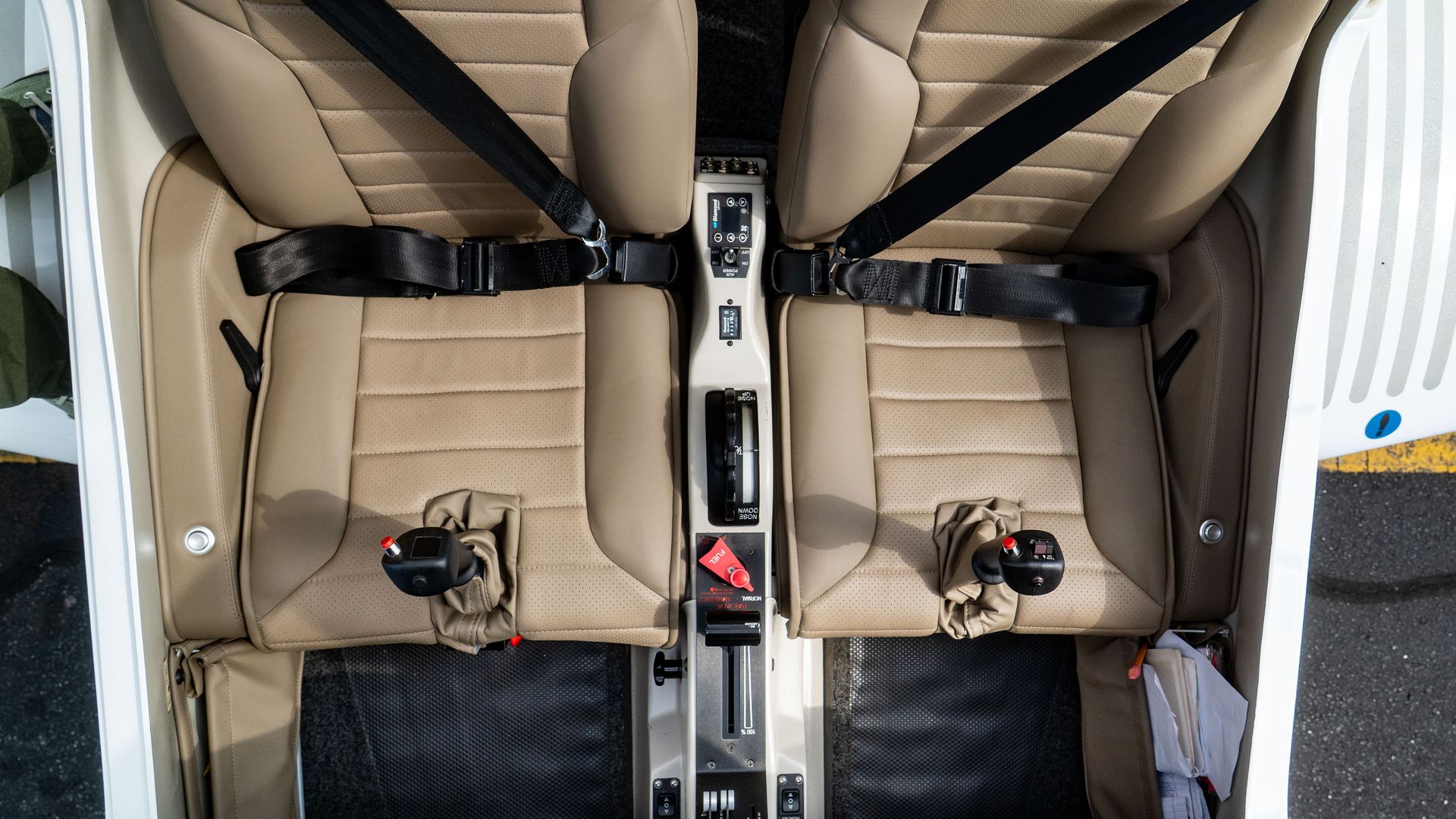

- Ergonomic seats and backrests
- Adjustable pilot and co-pilot seats
- Sun glare shields and canopy lining
- 28 V power supply socket

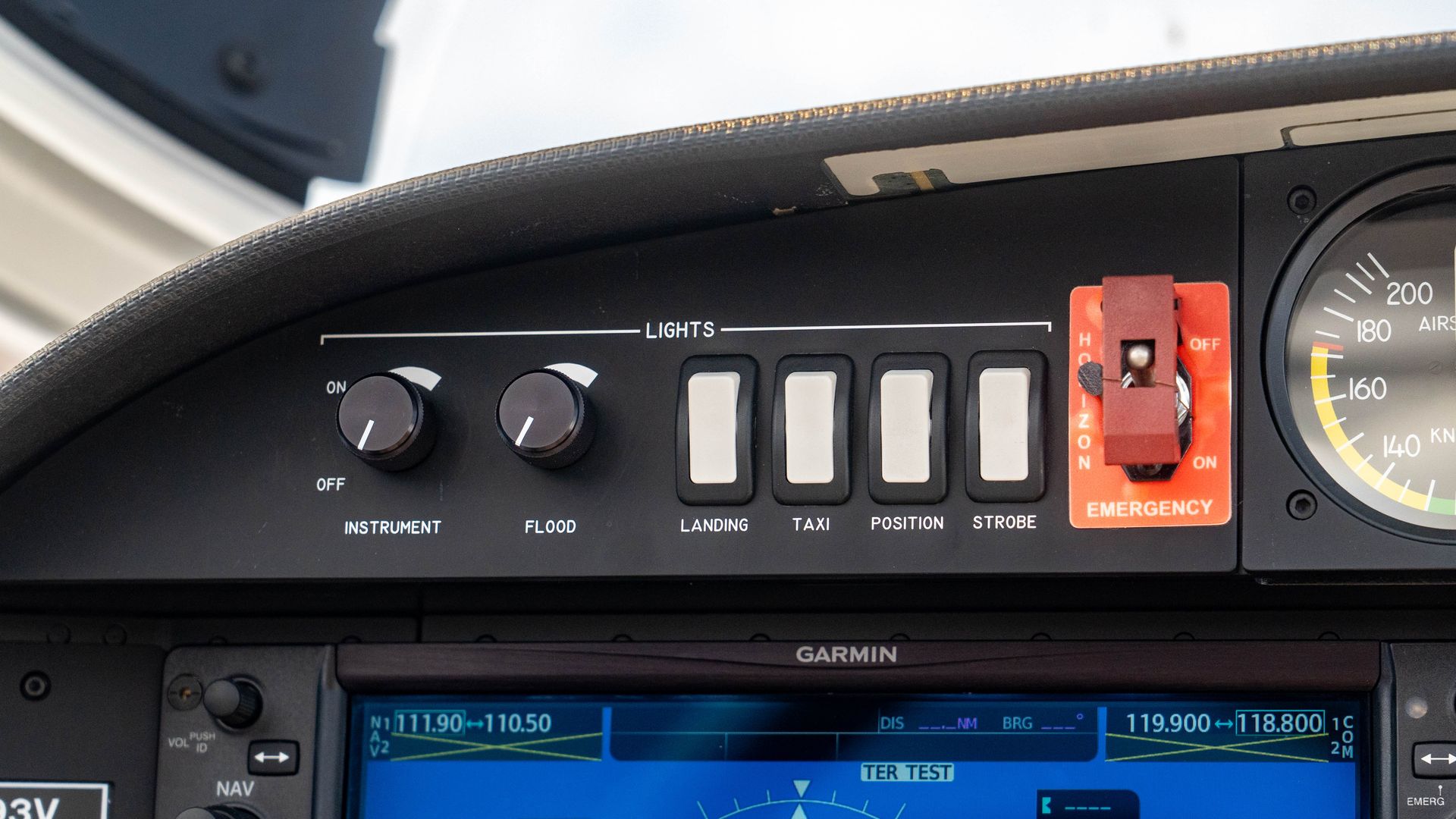

- Instrument lighting
- Overhead cabin light

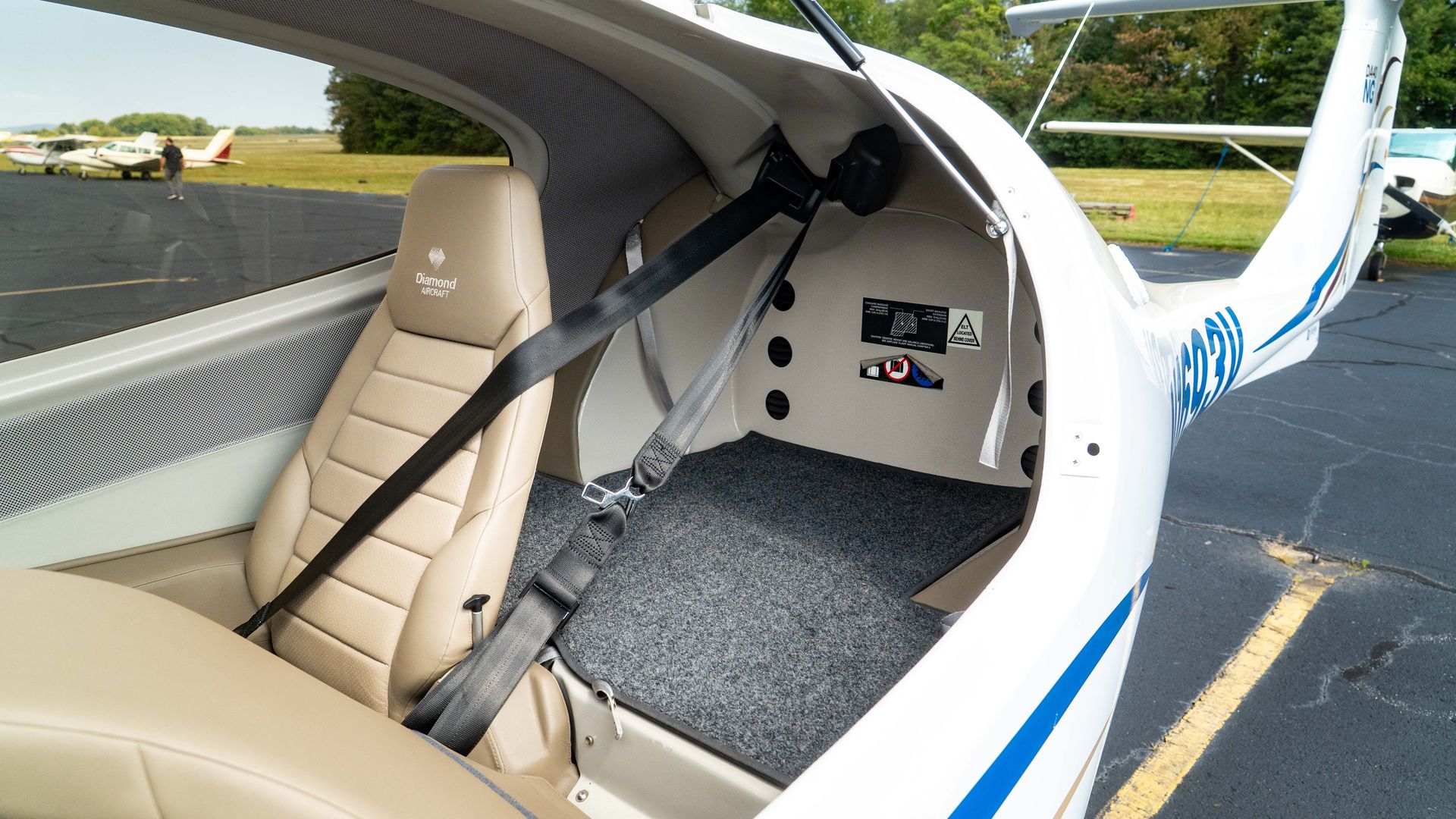

- Baggage extension with separate compartment
Exterior
Standard Exterior Equipment

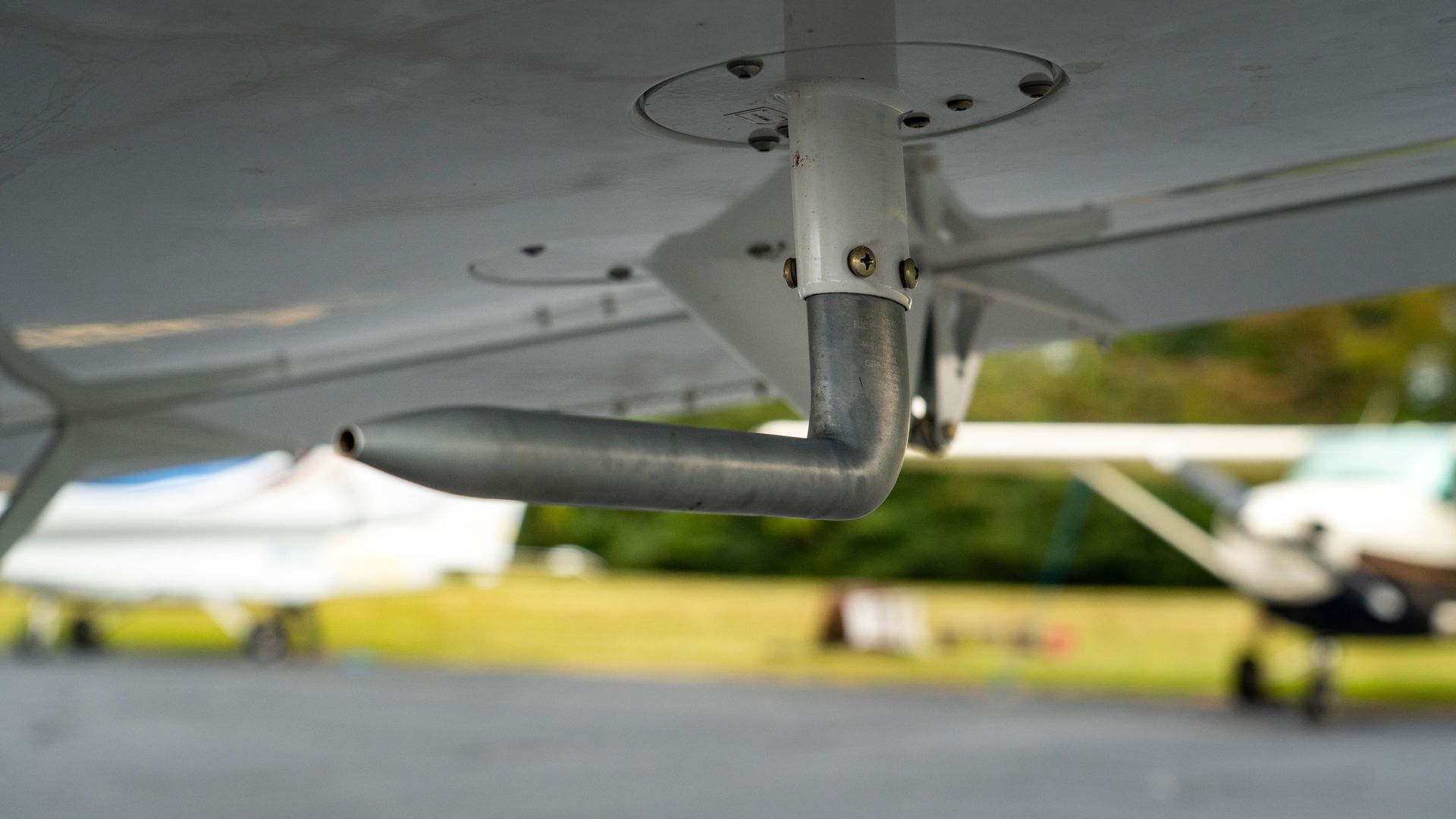

- Heated Pitot Tube
- High-gloss Multi-layer Paint
- Variety of Exterior Striping (standard striping)

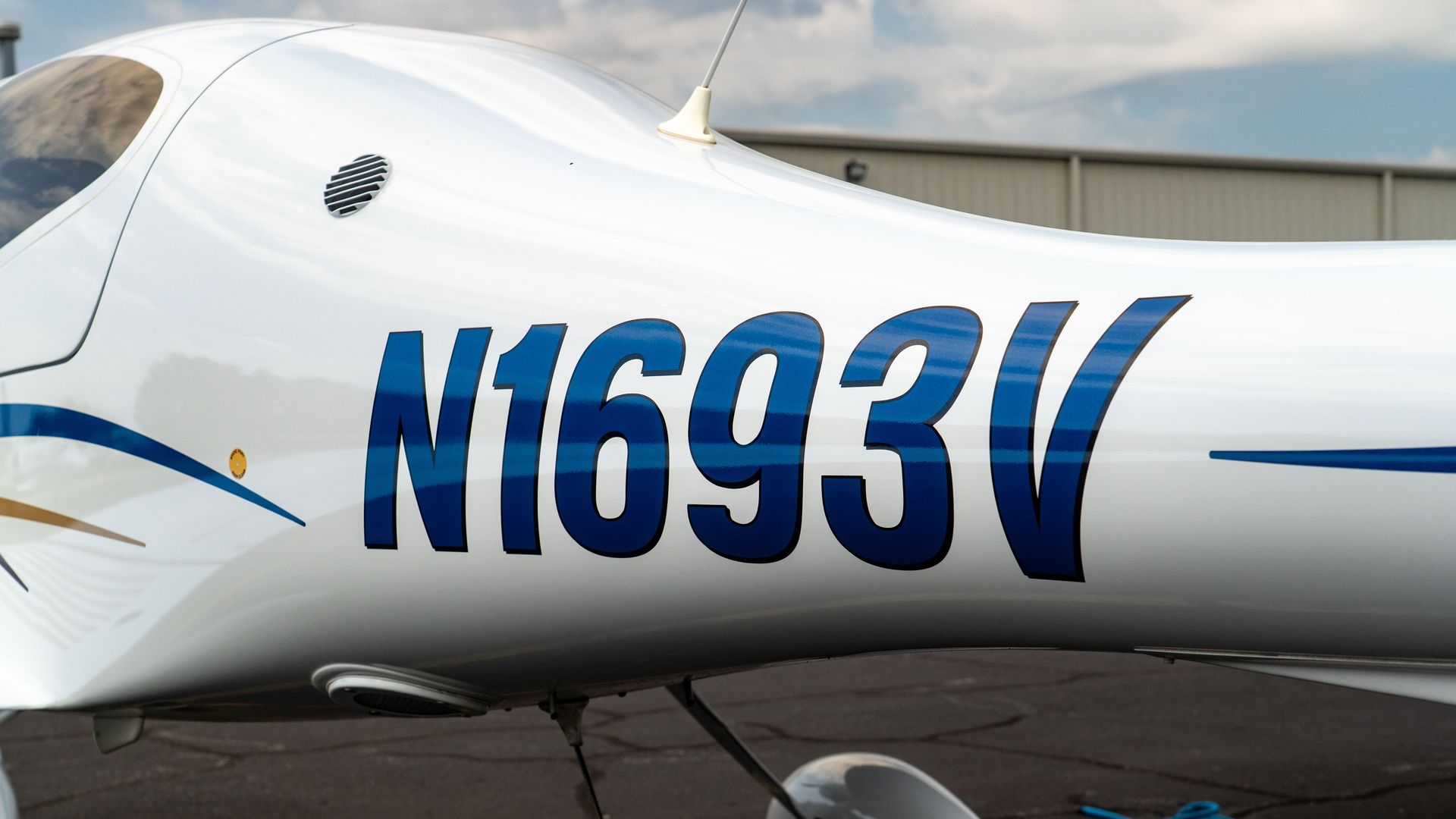

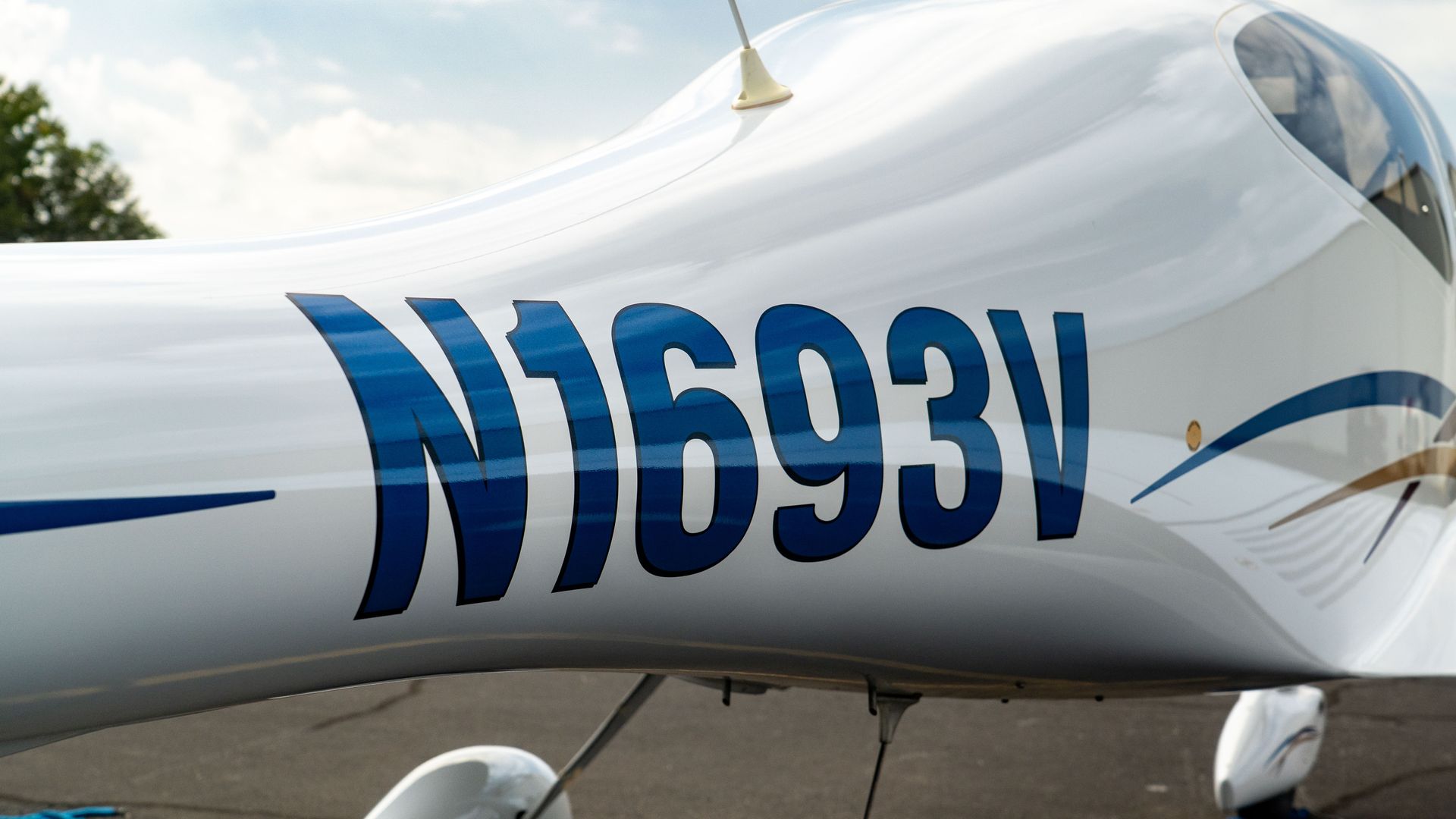

- Registration Markings
- Electrically Operated Flap System

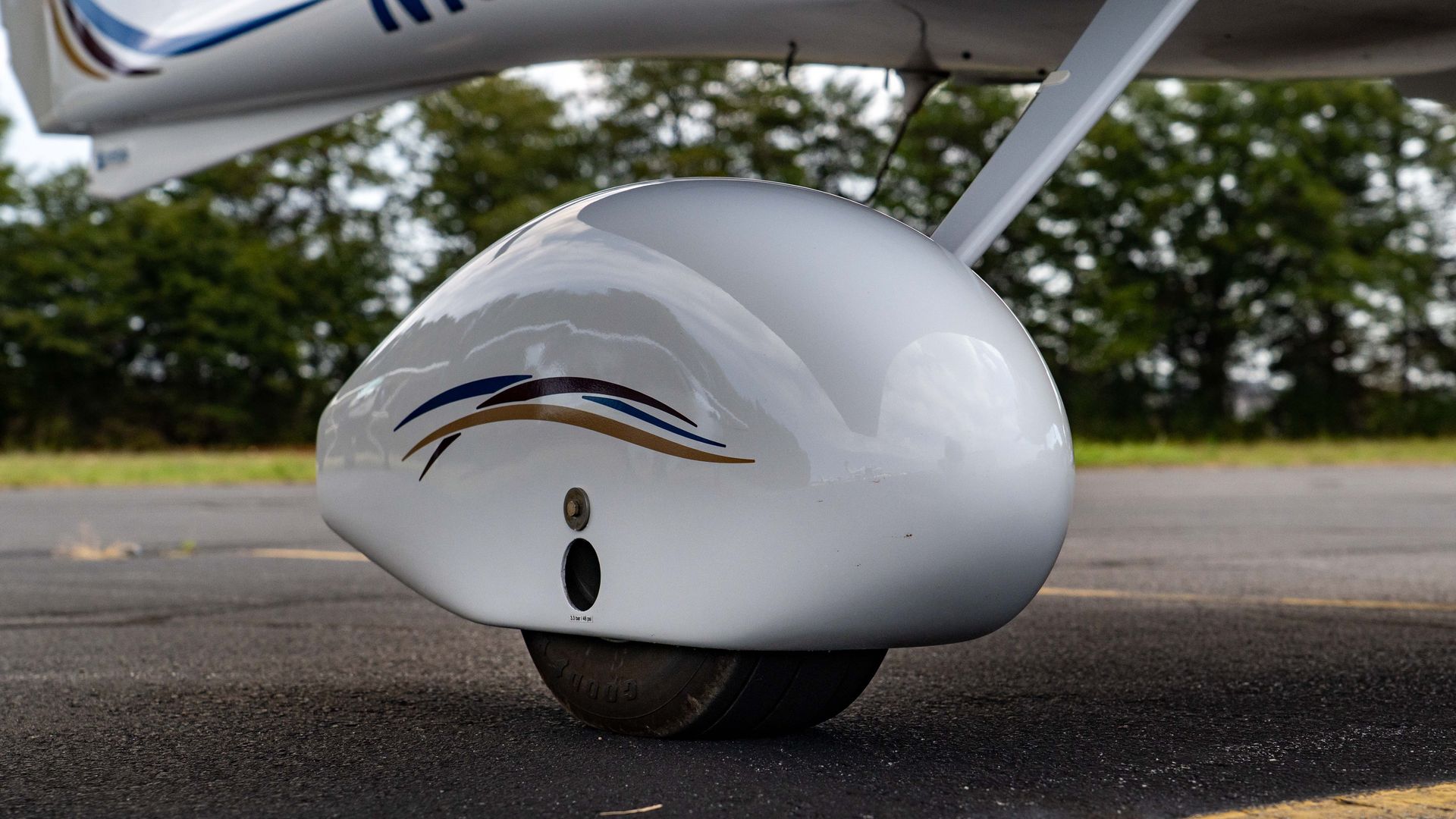

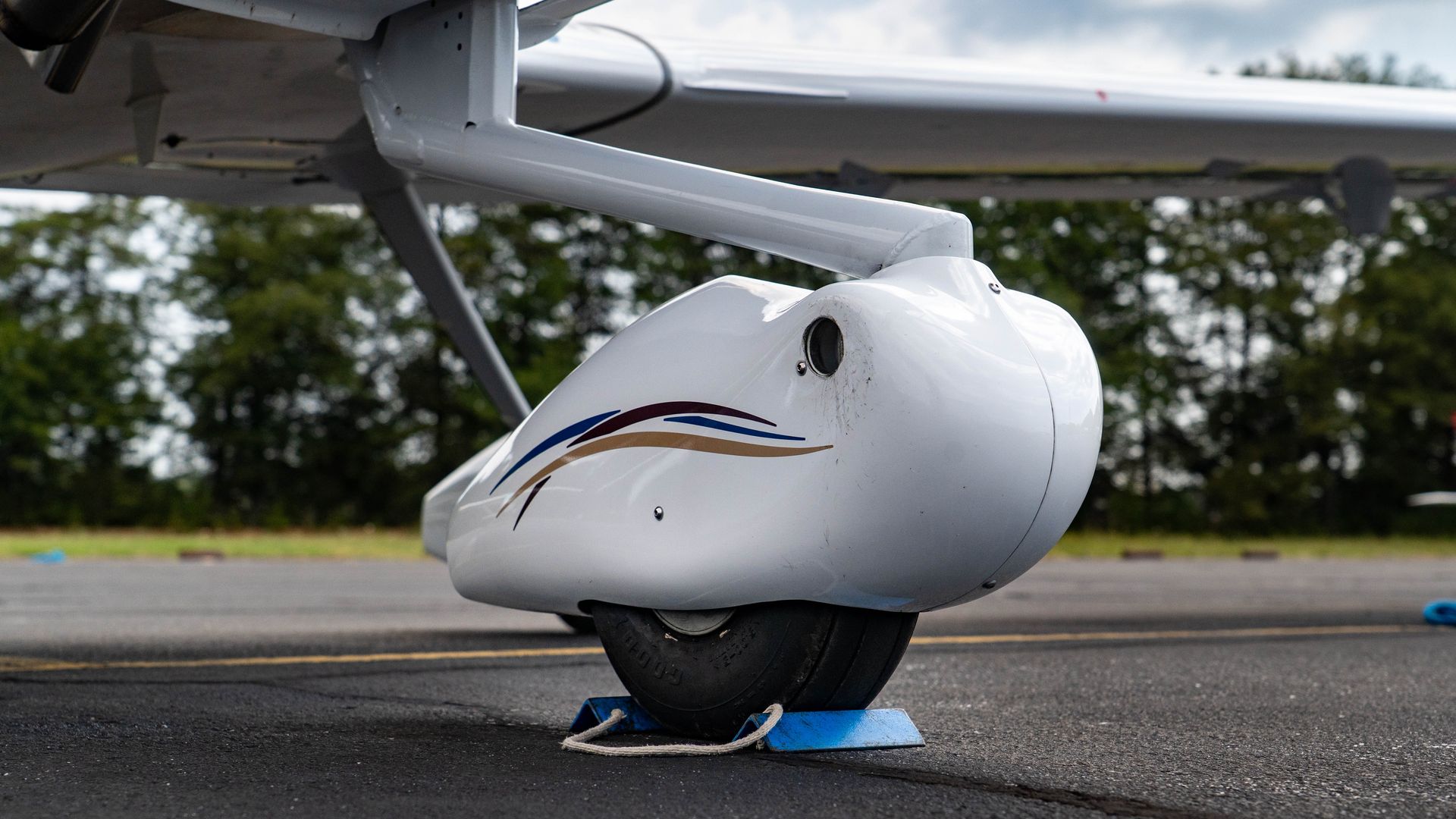

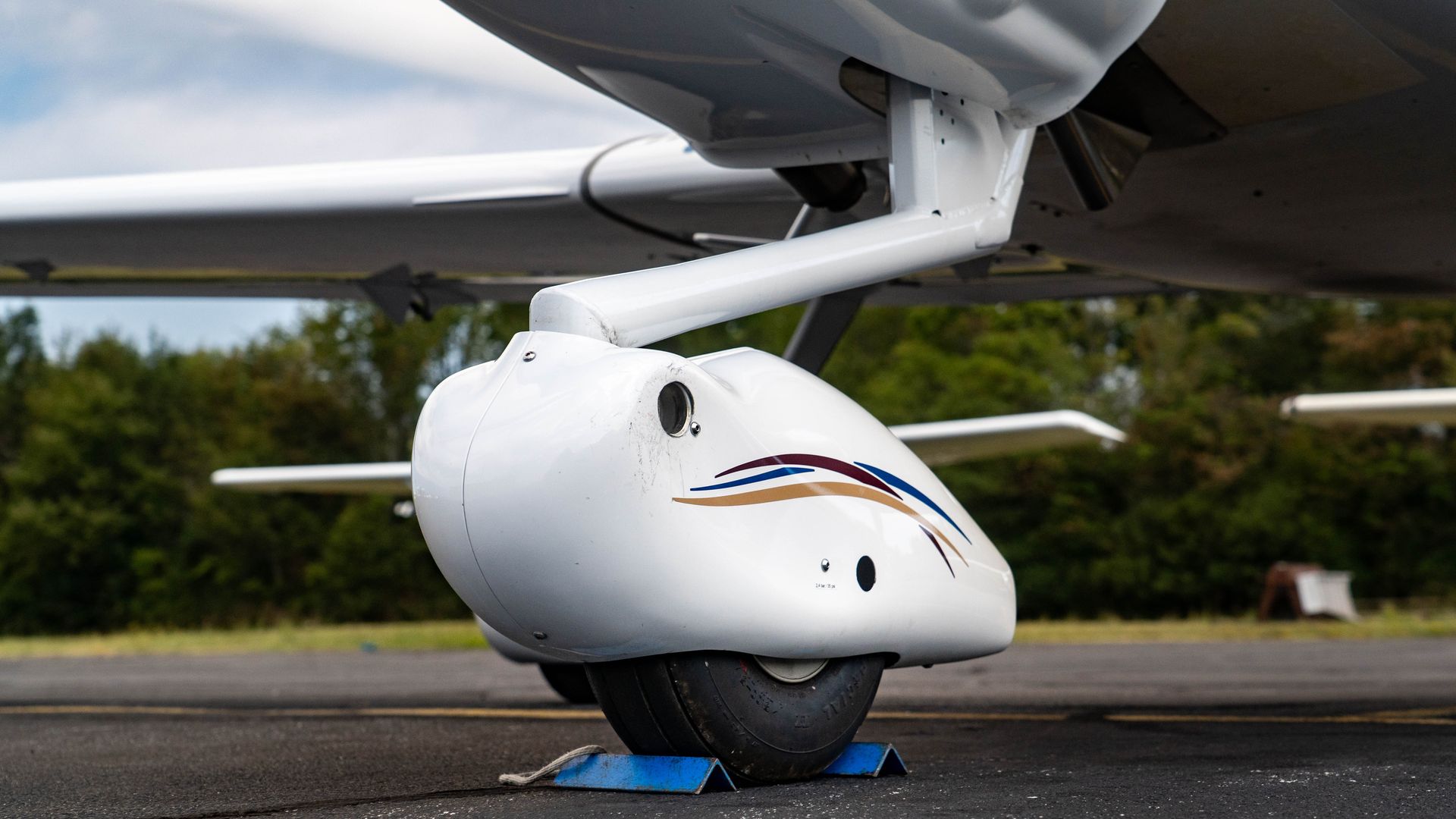

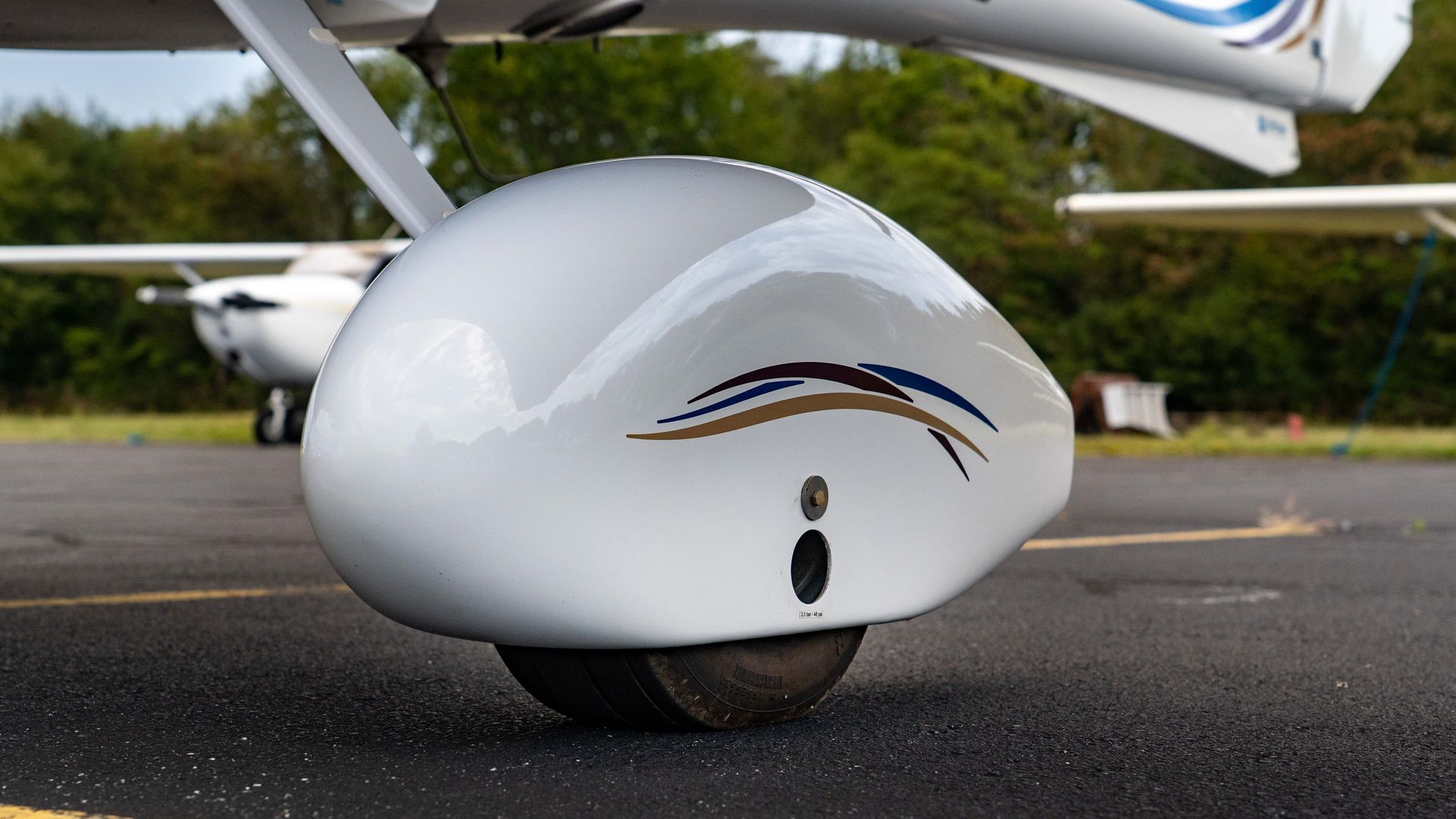

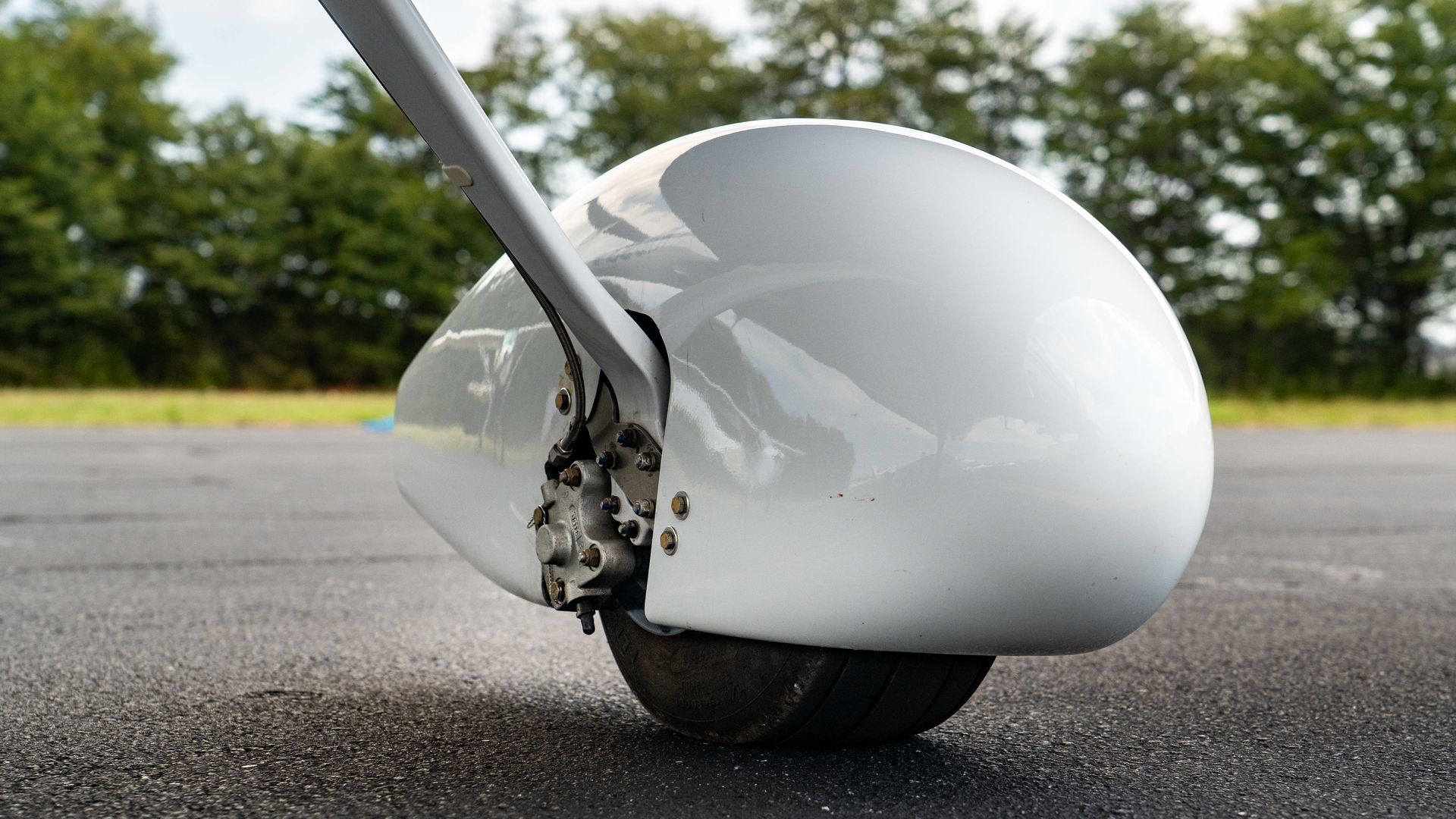

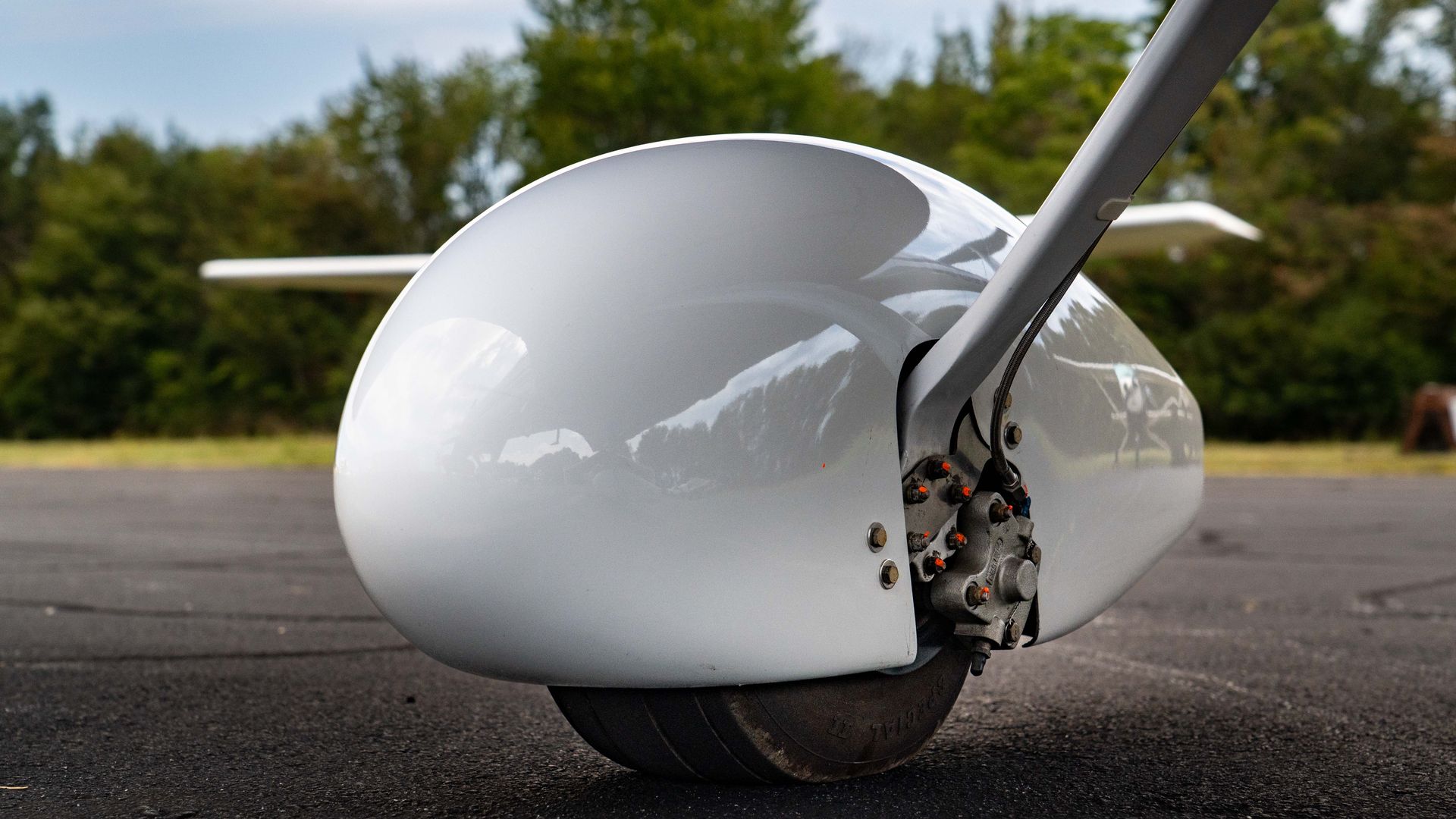

- Wheel Fairings on Main and Nose Landing Gear

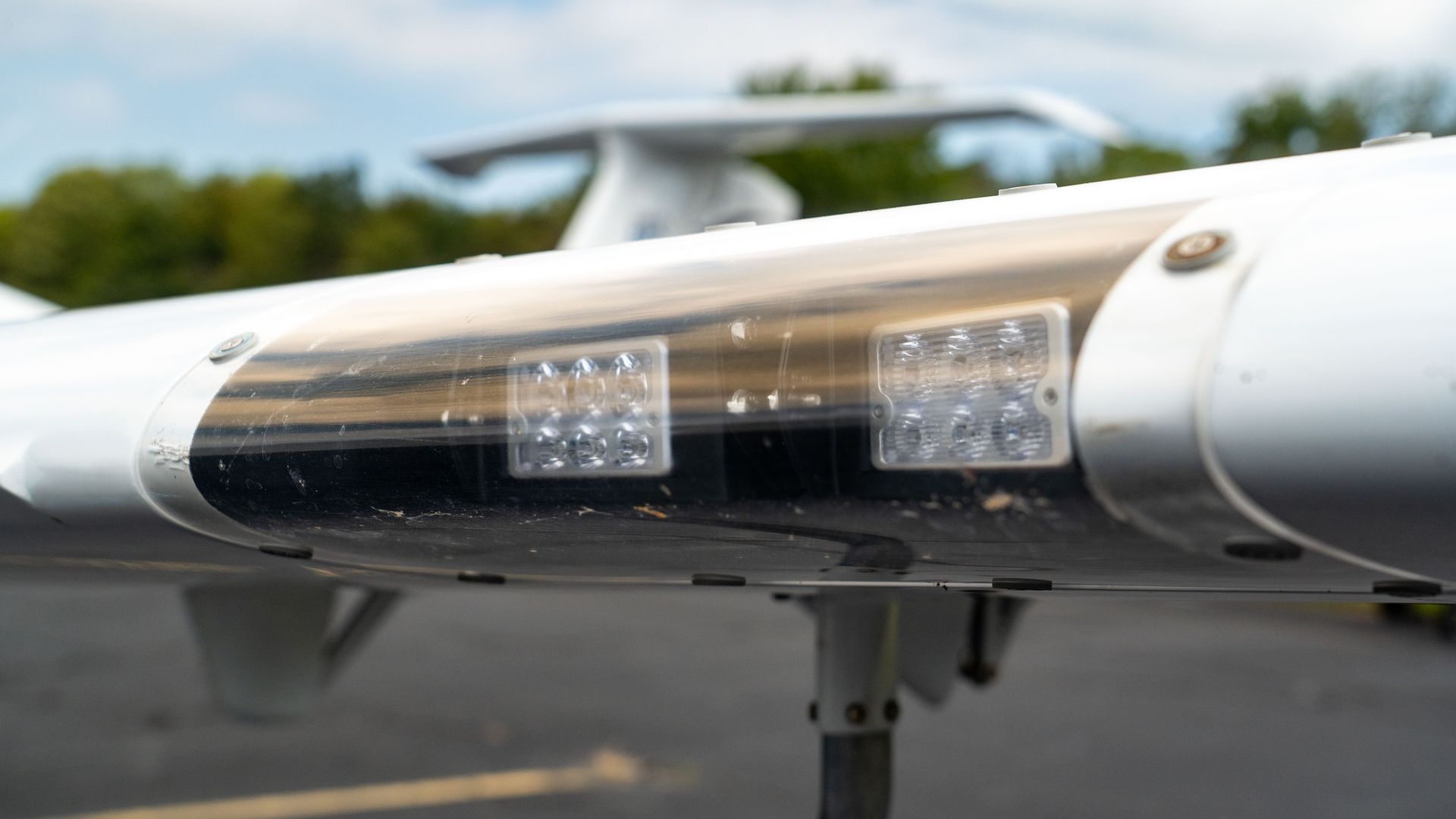

- Landing and Taxi Lights with LED Technology

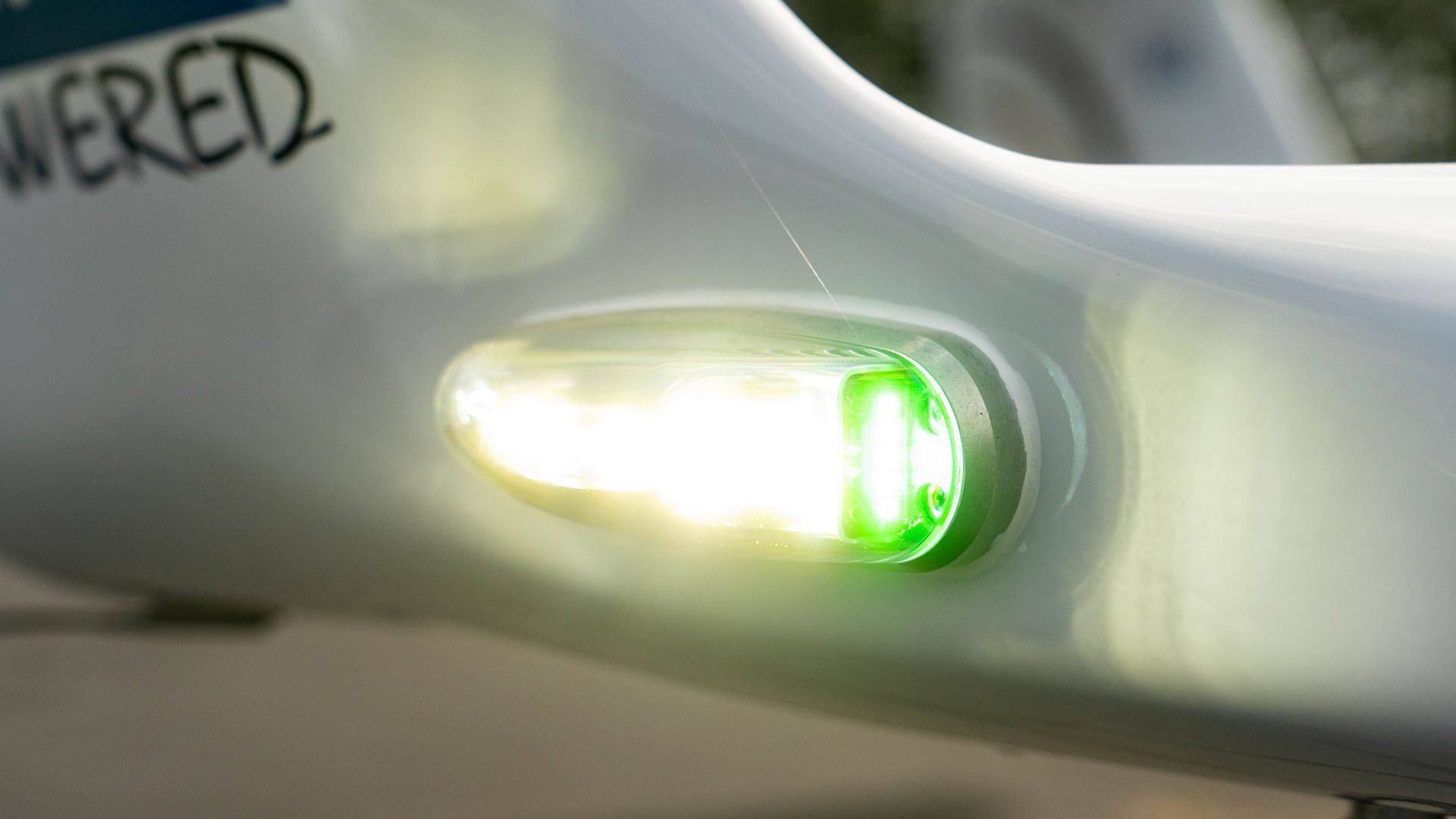

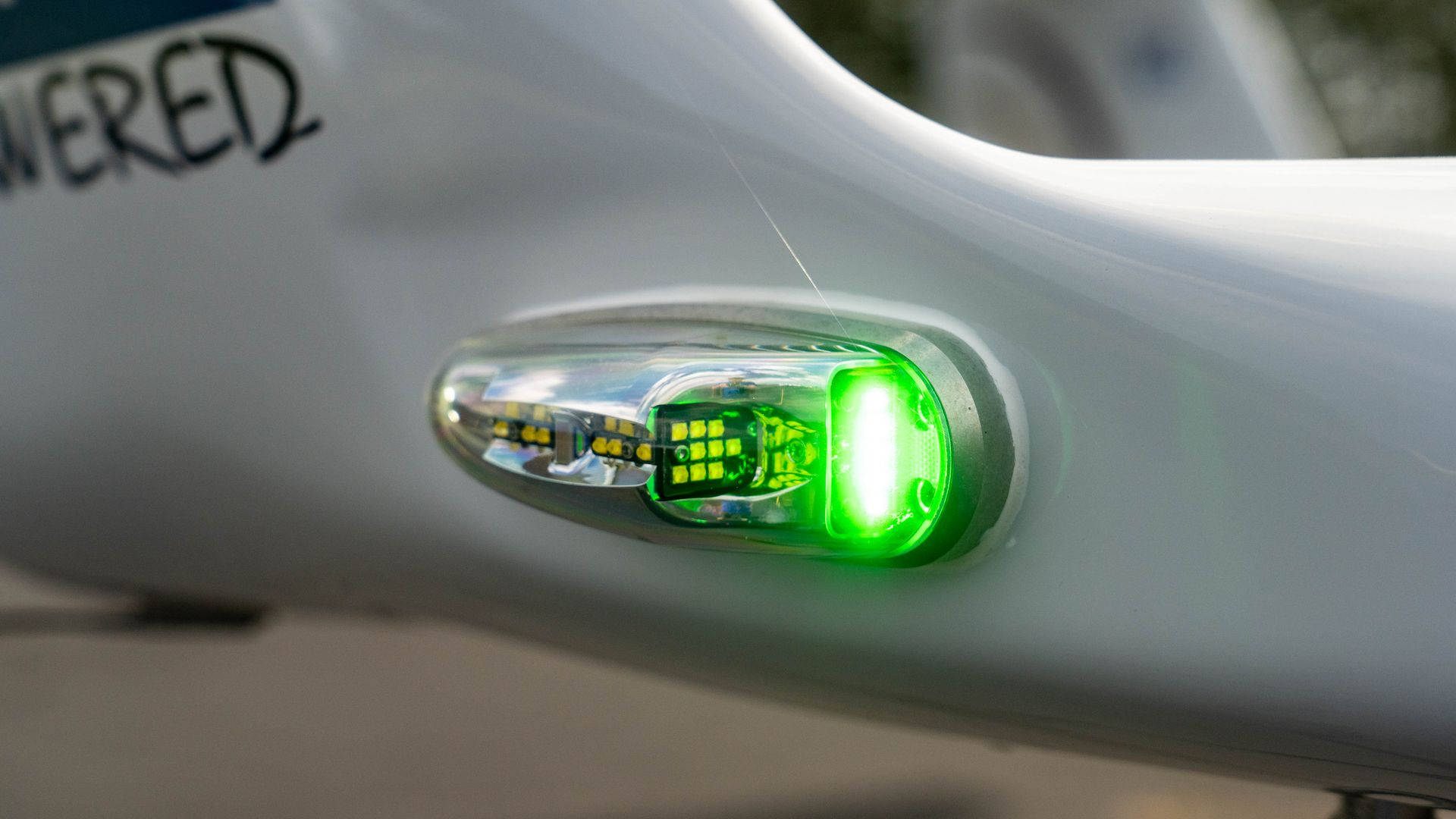

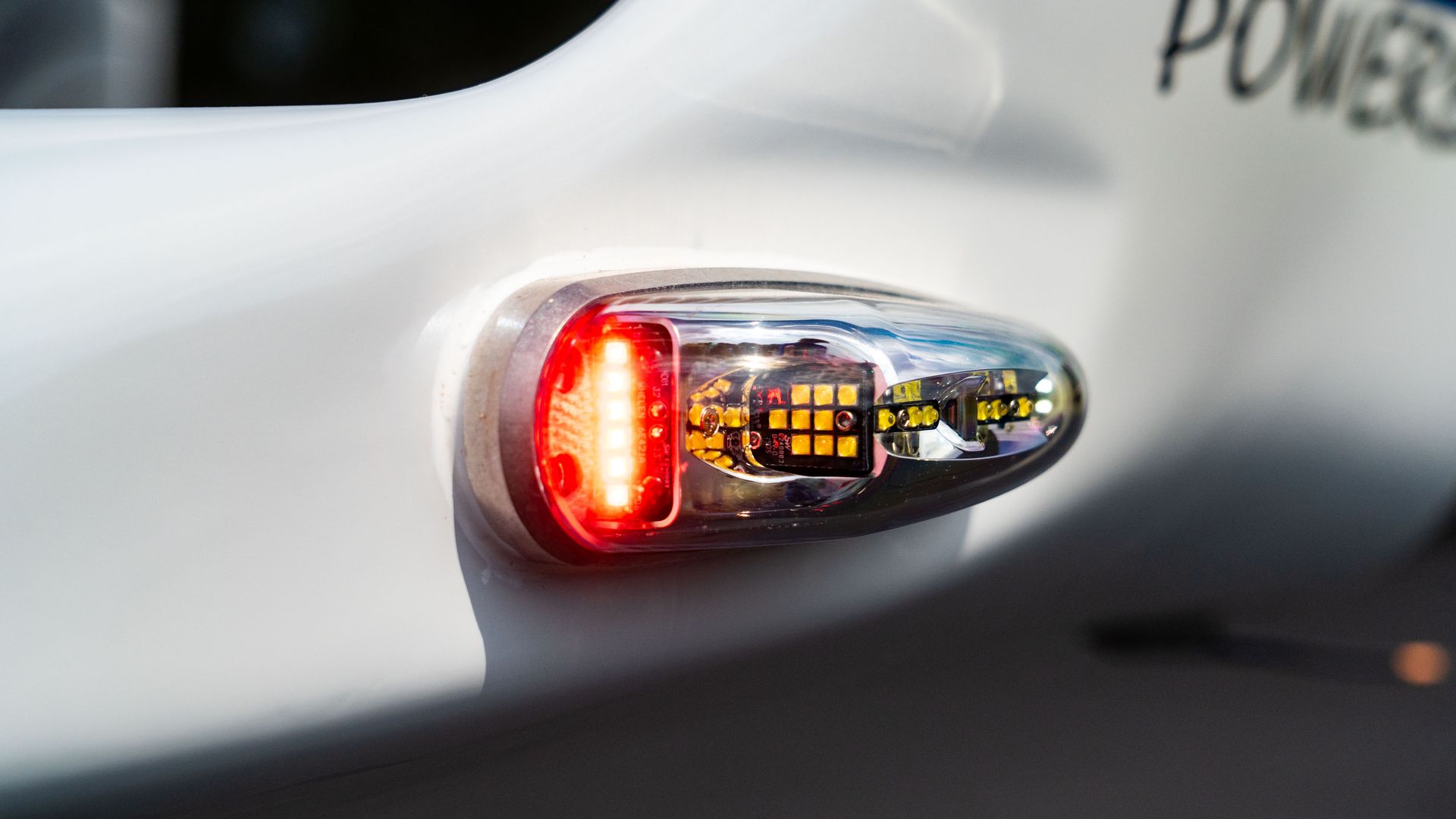

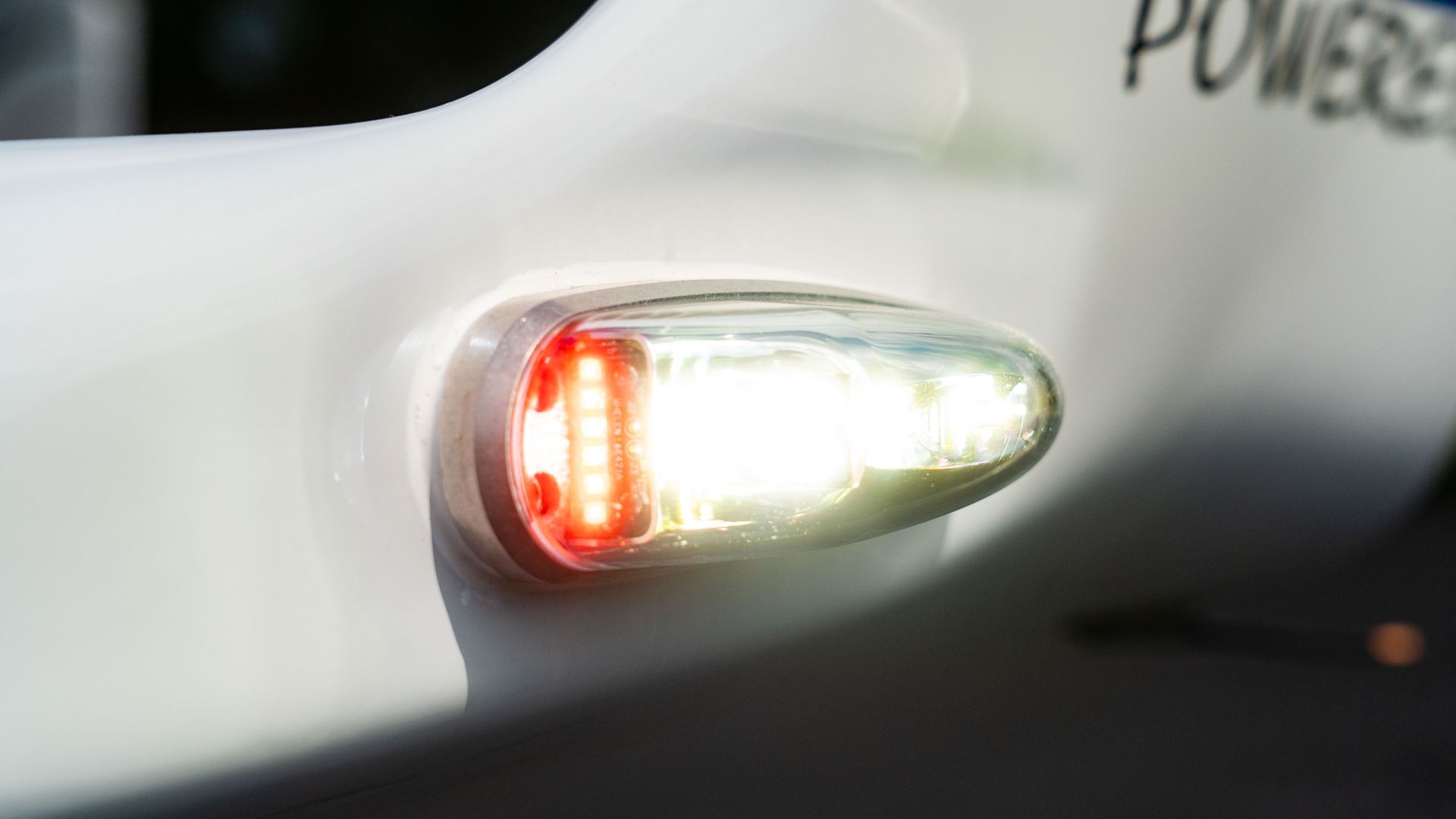

- Position and Strobe Lights with LED Technology

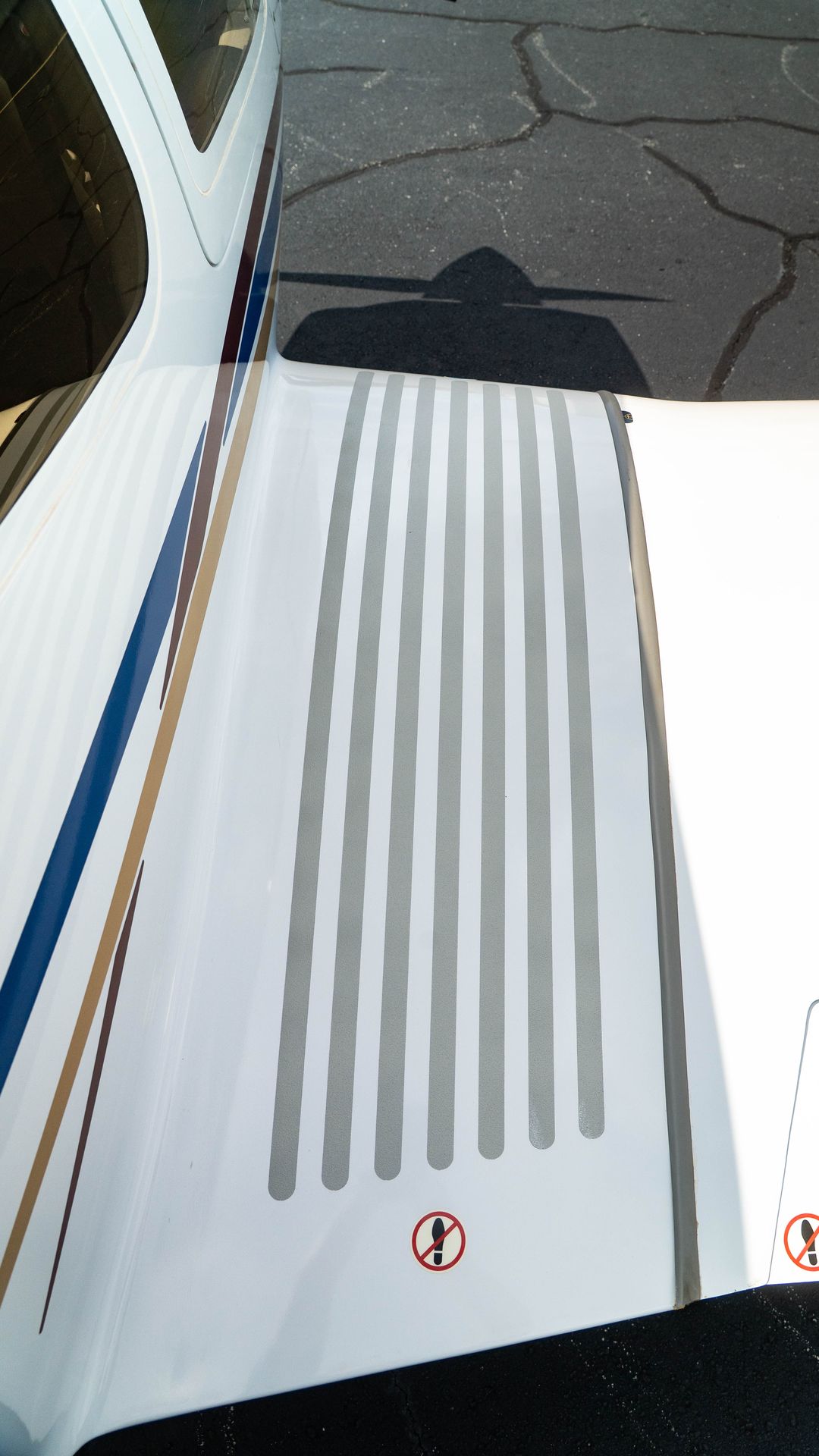

- White paint with vinyl stripes of Electric blue, Burgundy, and PMS466
Additional Equipment

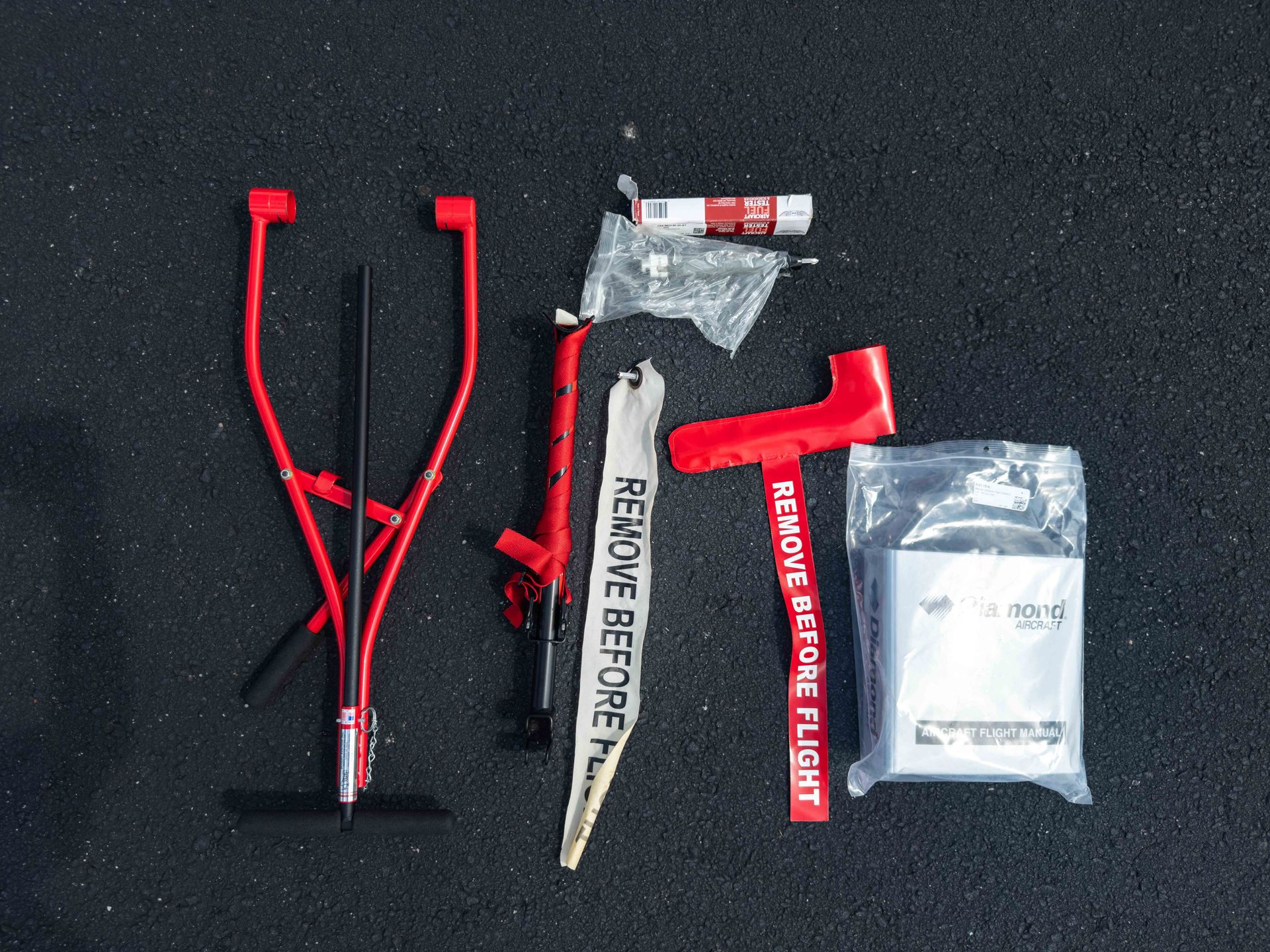

Ground Support and Auxiliary Equipment Package
- Noise Reduction Muffler
- Pitot Cover
- Control Gust Lock
- Tow Bar
- Tool Kit
- First Aid Kit

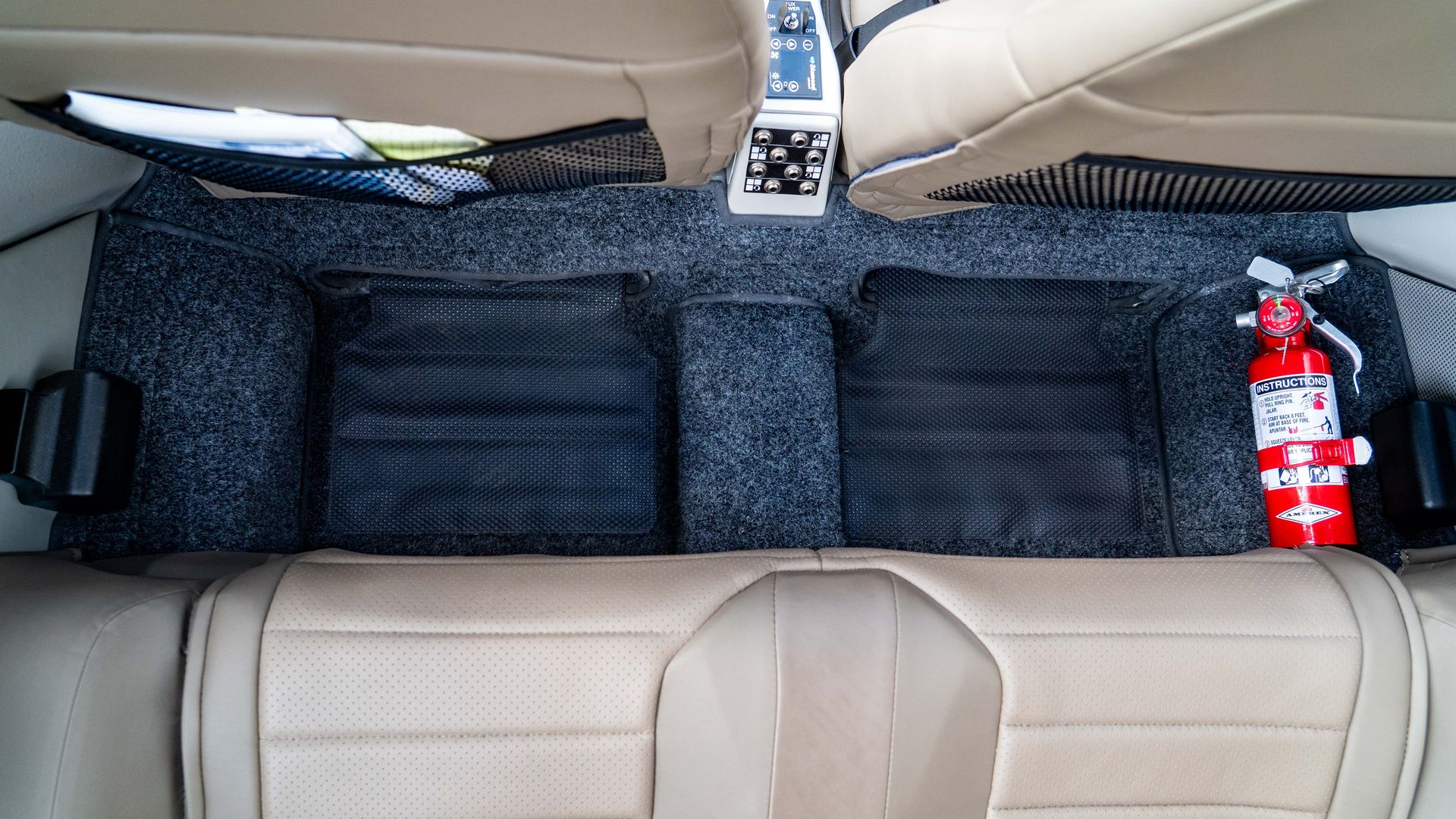

- Fire Extinguisher
- Emergency Axe
Safety Features
- Composite Cabin and Safety Seats (Up to 26g)
- “FAILSAFE” Airframe and Wing Design
- Multilayer Lightning Protection System
- 3-Point Safety Belts (All seats)
Standard Fuel Tank
- 39 US gal (147 litre) Long Range Fuel Tank
Installed Options
| Option | Description | Price |
|---|---|---|
| GFC700 |
Garmin GFC 700 Automatic Flight Control System |
$ 31,550.00 |
| GTX345R |
Garmin GTX 345R ADS-B In/Out Transponder |
$ 5,050.00 |
| Garmin Synthetic Vision Technology |
Garmin Synthetic Vision Technology |
$ 11,440.00 |
| Air |
Air Conditioning/RACC System (powered by an additional alternator) |
$ 32,110.00 |
| Rudder |

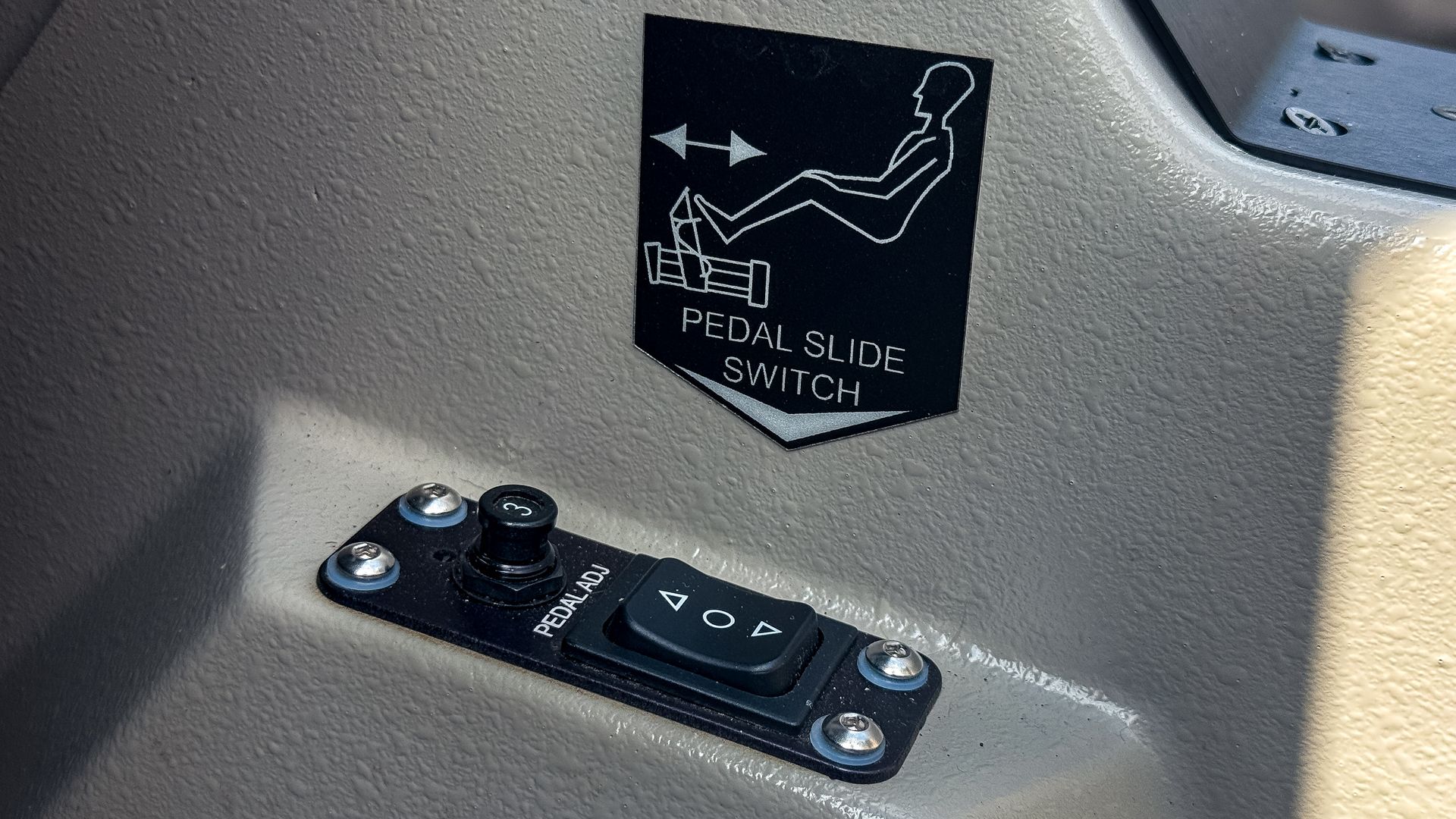

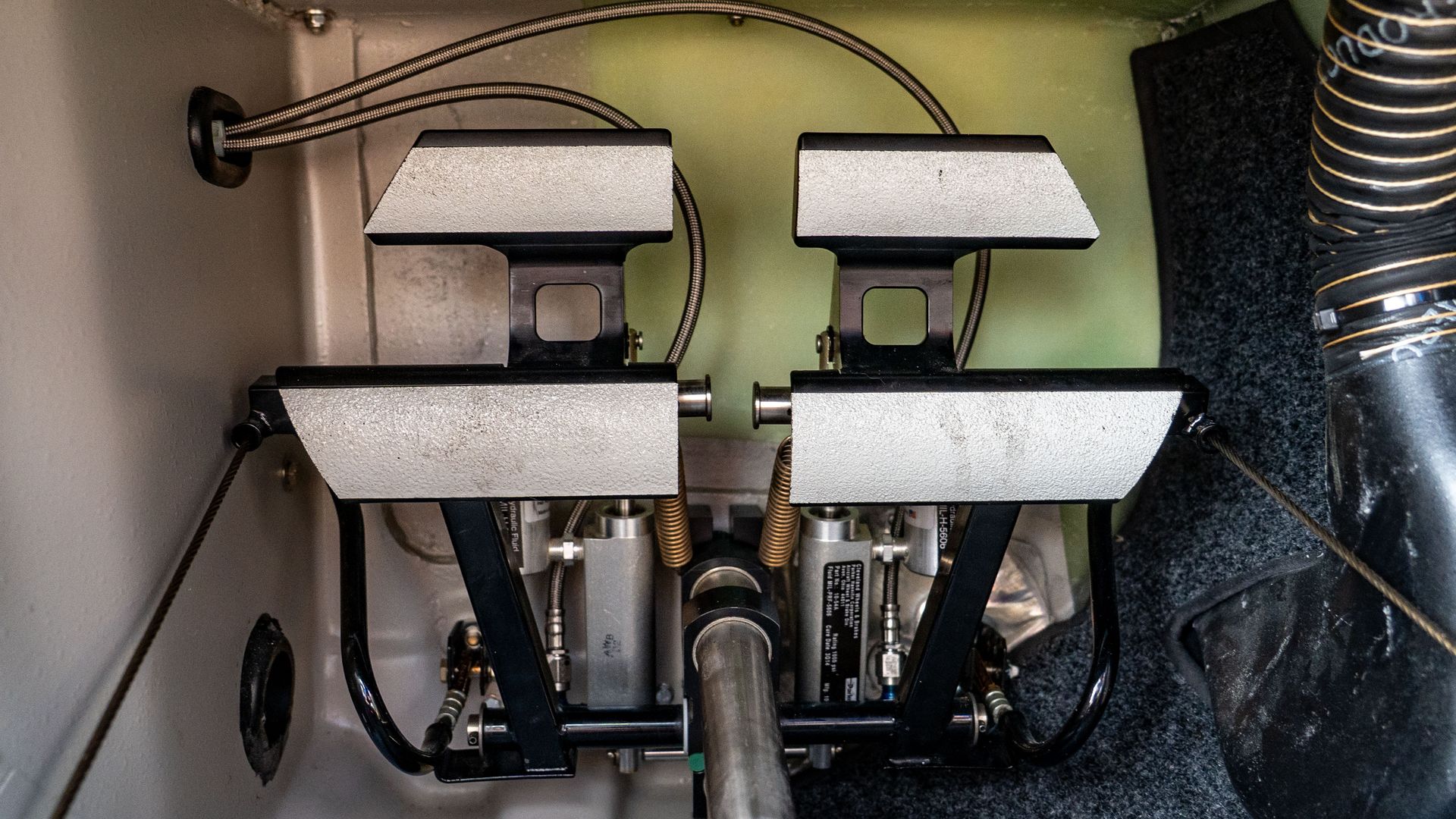

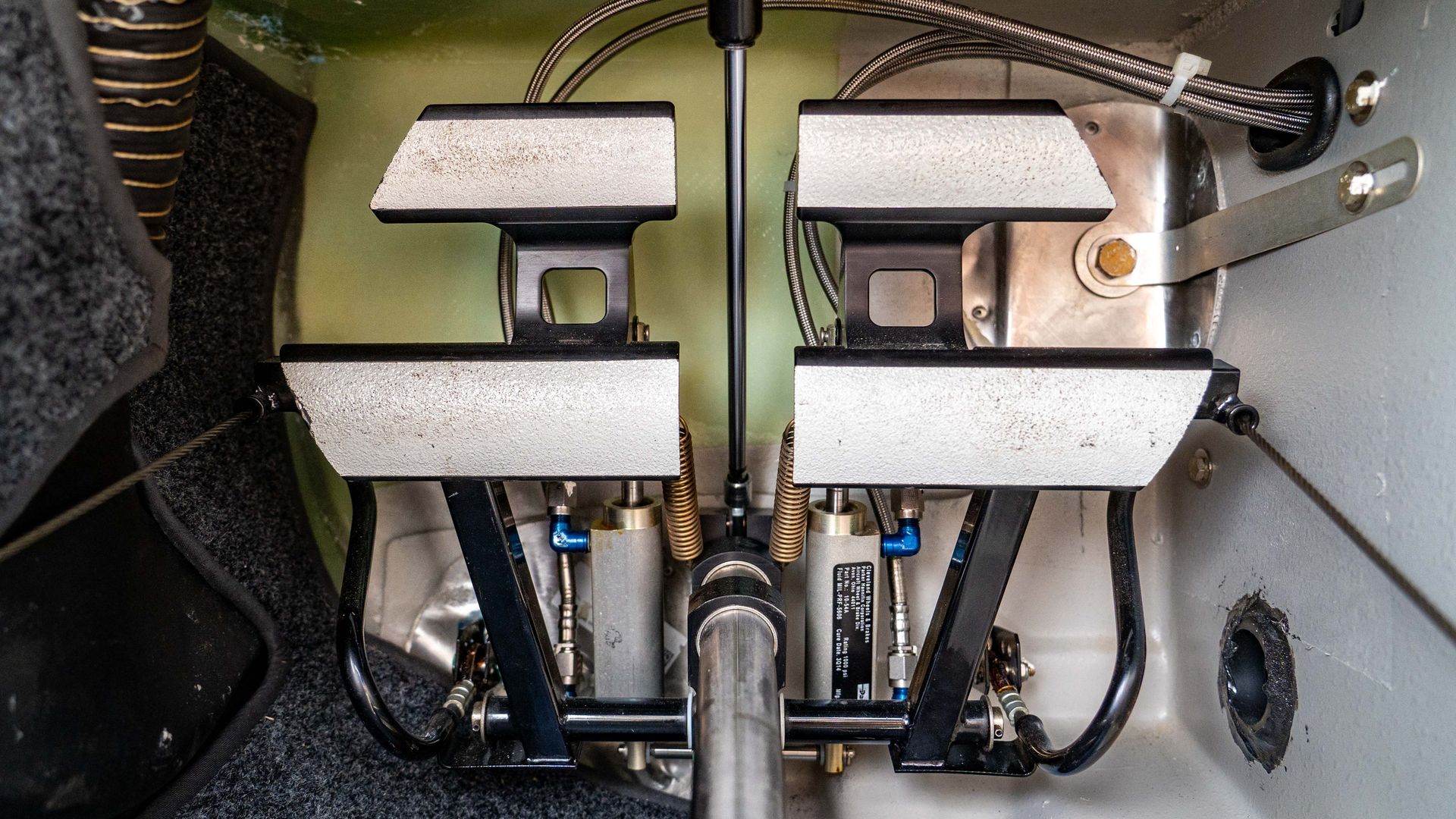

Electronically operated adjustable rudder pedals for pilot and copilot |
$ 7,260.00 |
| Total Options: | $87,410.00 | |
